Product Overview

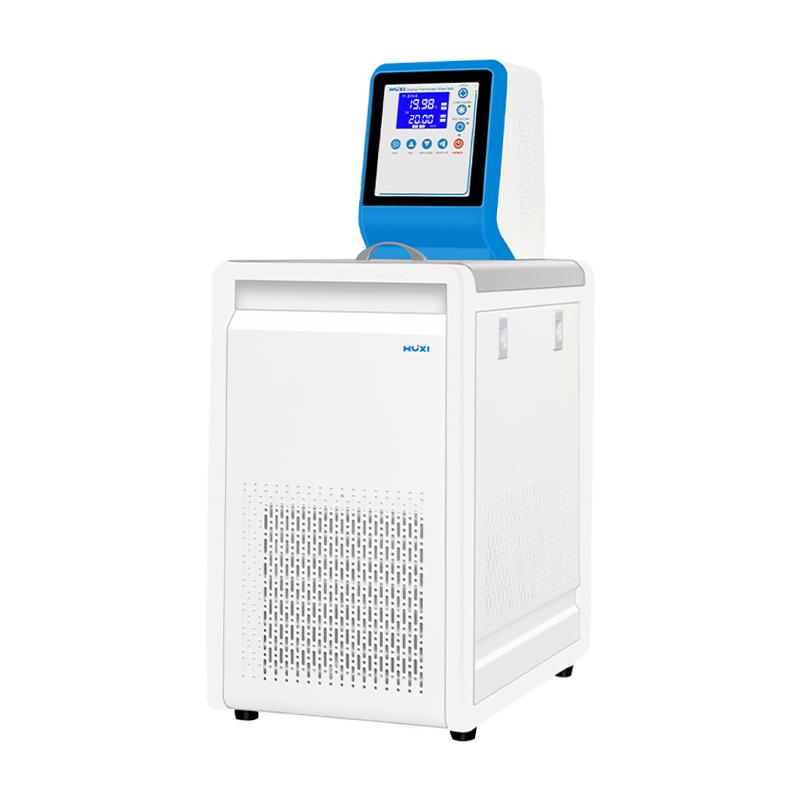

The constant temperature bath adopts internationally advanced refrigeration systems, ensuring stable and reliable performance. It features both internal and external circulation: the internal circulation allows for direct constant temperature testing of samples or products within the bath, while the external circulation uses a high-pressure pump to circulate and maintain the liquid medium at a constant temperature, enhancing temperature uniformity and reducing fluctuations. Using the outlet, the constant temperature medium is externally connected via insulated hoses to establish an external constant temperature environment, providing a steady cooling liquid with uniform and stable liquid environmental temperature. The cooling liquid can be recycled. widely used in research departments, universities, enterprise quality inspection and production departments in fields such as petroleum, chemicals, electronic instrumentation, physics, chemistry, bioengineering, health, life sciences, light industry and food, physical property testing, and chemical analysis. It can also provide users with a controlled hot and cold, uniform and constant temperature liquid environment, or serve as a direct heating or cooling source and an auxiliary heating or cooling power or cold source.
Product Features
1. Large-screen backlit LCD display shows set temperature, actual temperature, and allows independent activation/deactivation of functions such as "Heating," "Cooling," and "Internal/External Circulation," providing clear working status information.
2. The control section adopts an ABS mold design with an integrated streamlined exterior, offering an elegant and aesthetically pleasing appearance. The finely crafted front panel and work surface, combined with a unique ergonomic R-rounded edge design, prevent operators from being injured by sharp edges.
3. Packaging utilizes molded foam with an upper and lower clamp structure to prevent damage during transportation.
4. High-performance stirring and circulation motor features low noise, low heat generation, a fully enclosed design, and long lifespan. It uses a heat-free circulation pump to avoid temperature field interference caused by traditional pump self-heating.
5. The 304 stainless steel work surface and inner tank, along with positioning and surface treatment for the cooling coil, prevent shaking, corrosion, or rust during transportation or use.
6. The motor impeller is fully enclosed to eliminate safety hazards. Multiple safety protections include low-level dry-heat protection for heating tubes, with both visual and audible alarms.
7. It features power-off protection and over-temperature alarm functions, providing multiple safety measures.
8. The fully enclosed compressor unit handles cooling, with the cooling system equipped with multiple protections such as overheat and overcurrent safeguards.
9. The instrument is designed with detachable side panels for easy dust cleaning without requiring tools.
10. The instrument operates reliably and stably, is convenient and safe to use, and the controller includes temperature calibration and auto-tuning functions.
11. Circulation ports and drain outlets use 304 stainless steel taper fittings for quick and reliable installation. The drain valve is designed to be built-in and concealed for an elegant appearance and protection during transport.
12. The instrument is equipped with two pieces of silicone circulation tubing with insulation sleeves for flexible customer use.
Working principle
The constant temperature bath uses the outlet to extend the constant temperature medium inside the bath through an insulated hose, establishing an external constant temperature environment. It provides a constant temperature cooling liquid for testing experiments or production, creating a uniform and stable liquid environment. The constant temperature cooling liquid can be recycled and reused. The internal circulation allows direct constant temperature testing of samples or products within the bath, while the external circulation uses a high-pressure pump to circulate and maintain the temperature of the liquid medium in the bath, enhancing temperature uniformity and reducing temperature fluctuations.
Application Areas
In research departments, institutions of higher education, enterprise quality inspection, and production departments in fields such as petroleum, chemical engineering, electronic instrumentation, physics, chemistry, biotechnology, health, life sciences, light industry and food, physical property testing, and chemical analysis.
Operation Steps
No specific data available; unable to summarize.
Precautions
No specific data available; unable to summarize.
