$ 1764.00Ex works

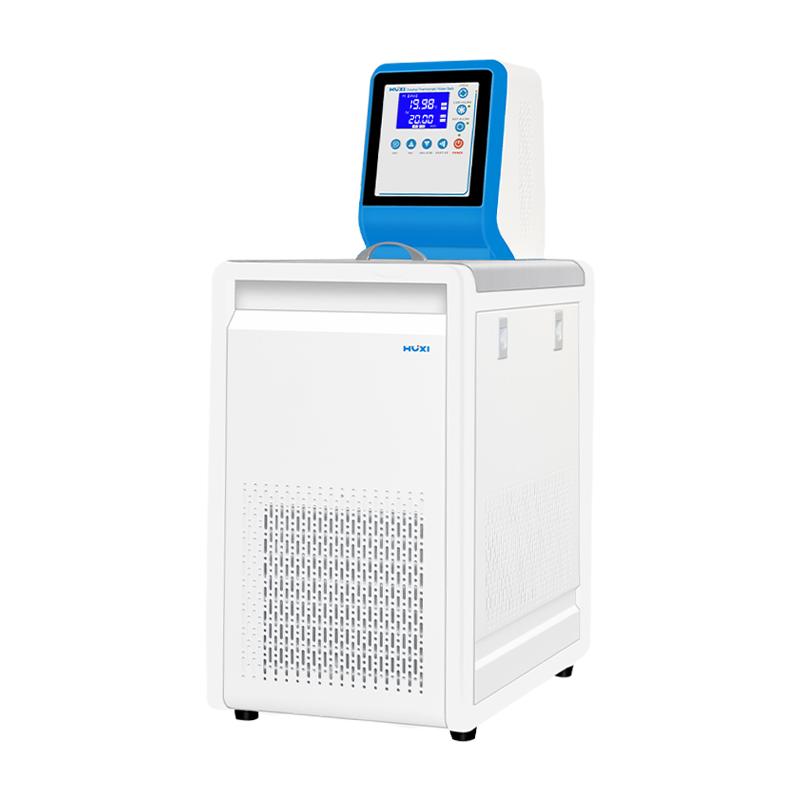

Core parameters include -40~ 100 ℃ Temperature range and +/- 0.1 ℃ temperature control accuracy; features internal and external circulation design, 304 stainless steel liner and refrigeration coil anti-corrosion, multiple Safety protection and intelligent temperature control system.
Category : Thermostatic Bath
Brand : HuXi
SKU : NB050915
Service :The delivery and service By NBCLab.Com
The constant temperature bath adopts an internationally advanced new refrigeration system, ensuring stable and reliable performance. It features both internal and external circulation functions: the internal circulation allows for direct constant temperature testing or experimentation on test samples or products within the bath; the external circulation uses a high-pressure pump to circulate and stabilize the liquid medium within the bath, improving temperature uniformity and reducing temperature fluctuations. The principle involves using an outlet to connect the constant temperature medium from the bath via insulating hoses, establishing an external constant temperature environment. This provides a constant temperature cooling liquid for experiments or production, ensuring a uniform and stable liquid environment. The cooling liquid can be recycled and reused. This instrument is widely used in research institutions, universities, and enterprise quality inspection and production departments in fields such as petroleum, chemical engineering, electronic instruments, physics, chemistry, biological engineering, healthcare, life sciences, light industry and food, physical property testing, and chemical analysis. It can also provide users with a precisely controlled, uniform, and stable liquid environment for various applications.
1. Large screen backlit LCD display showing set temperature, actual temperature, independent start/stop functions for "Heating," "Cooling," and "Internal/External Circulation," with clear and informative operational status. 2. The control panel adopts ABS mold design, featuring a streamlined overall appearance that is both elegant and generous. The finely crafted front panel and worktable, combined with a unique humanized R-rounded corner design, prevent operators from accidentally being injured by sharp edges. 3. The packaging uses molded foam with a snap-fit top and bottom, effectively preventing damage during transportation. 4. High-performance stirring circulation motor with low noise, low heat generation, fully enclosed design, and long service life. Equipped with a heat-free circulation pump to avoid the issue of traditional water pumps generating heat that could affect the temperature stability of the tank. 5. The worktable and inner tank are made of 304 stainless steel. The cooling coil includes improved positioning and surface treatment processes to effectively prevent movement during transport or use, as well as corrosion and rusting. 6. The motor impeller is fully enclosed to eliminate safety hazards. Multiple safety protections: heating tube low-liquid-level dry-burn protection, with both visual and audible alarms when triggered. 7. Features power-off protection and over-temperature alarm, providing multiple safety measures. 8. The cooling system uses a fully enclosed compressor, equipped with multiple protection devices for overheating and overcurrent. 9. The instrument features removable side panels for easy cleaning. To enhance cooling performance and simplify dust removal after extended use, no tools are required for disassembly. 10. The instrument operates reliably and stably, is easy and safe to use, and includes temperature calibration and self-tuning functions. 11. All circulation ports and drain outlets are fitted with 304 stainless steel barbed connectors for quick and reliable installation. The drain valve is designed as a built-in concealed type, which is both aesthetically pleasing and prevents unnecessary damage during shipping or transport. 12. The instrument comes standard with two sections of silicone hoses for circulation along with insulation sleeves, providing flexible usage for the customer.
The thermostatic bath utilizes the water outlet to channel the constant-temperature medium inside the tank through insulated hoses, establishing external temperature control. The internal circulation allows for direct constant-temperature tests or measurements on test samples or products within the tank. The external circulation function employs a high-pressure pump to circulate and stabilize the temperature of the liquid medium in the tank, enhancing temperature uniformity and reducing fluctuations. This provides a constant-temperature cooling liquid and a uniformly stable liquid environment for testing experiments or production, with the constant-temperature cooling liquid being reusable.
Oil, petrochemical, electronic instruments, physics, chemistry, bioengineering, health, life sciences, light industry and food, physical property testing, chemical analysis, higher education institutions, enterprise quality inspection and production departments.
1. Connect the circulation interface and drain outlet, using 304 stainless steel barbed fittings for quick installation. 2. Connect the two sections of silicone circulation tubing and the insulation jacket, ensuring the external circulation system is unobstructed. 3. Plug in the power, turn on the device, and set the desired temperature. 4. Check the set temperature and actual temperature via the large-screen LCD display. 5. Independently activate or deactivate functions such as "Heating," "Cooling," and "Internal/External Circulation" as needed. 6. Monitor the working status to ensure normal operation of the equipment. 7. After use, turn off the device, disconnect the power, and disassemble the door panels around the sides when cleaning dust.
- Avoid operating at low liquid levels to prevent dry heating of the heating tube; alarm signals both visually and audibly simultaneously when triggered. - Take note of the power-off protection and over-temperature alarm functions, which provide multiple safety measures. - The refrigeration system is equipped with multiple protection devices against overheating and overcurrent, ensuring proper operation. - When cleaning dust, the specially designed surrounding panels can be flexibly removed and installed without requiring any tools. - To avoid damage during transportation, the packaging uses molded foam for top and bottom matching halves. - Before use, check the reliability of installation to ensure secure connections of the circulation fittings and drain outlet.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
