$ 1982.00Ex works
Large capacity 30L water tank, -20~ 100 ℃ wide temperature range, +/- 0.1 ℃ High Accuracy temperature control. Temperature uniformity of internal and external circulation system, fully enclosed compressor unit to ensure stable operation, multiple safety protection and humanized design.
Category : Thermostatic Bath
Brand : HuXi
SKU : NB050920
Service :The delivery and service By NBCLab.Com

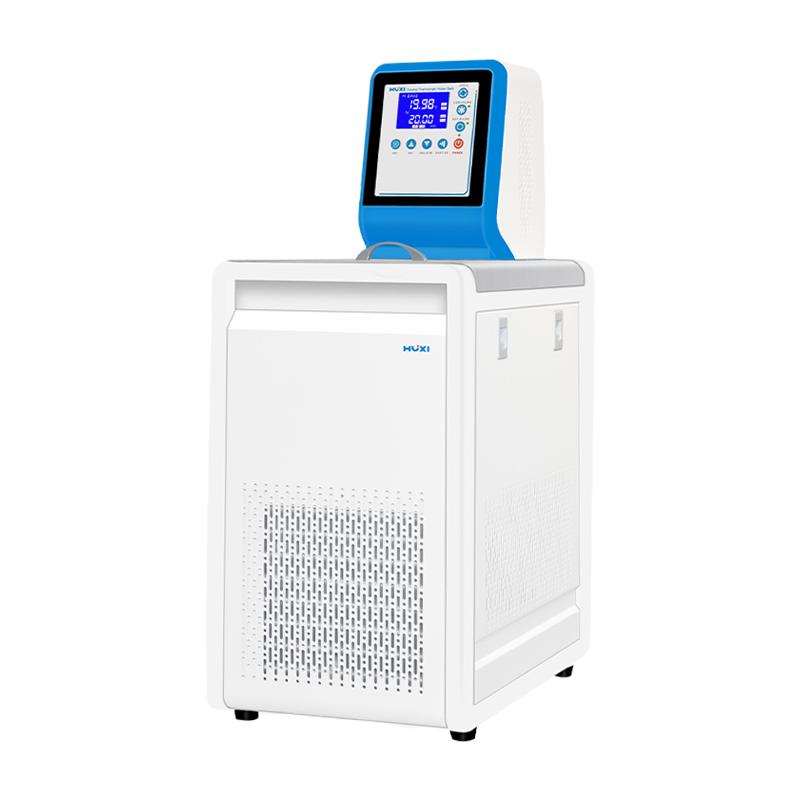

The Huxi HLC-2030 thermostatic bath adopts an internationally advanced refrigeration system, ensuring stable and reliable performance. It features both internal and external circulation functions: the internal circulation allows direct constant temperature experiments on samples, while the external circulation uses a high-pressure pump to circulate the liquid medium at a constant temperature, improving temperature uniformity and reducing fluctuations. The working principle involves using the water outlet to externally channel the thermostatic medium through insulated hoses, establishing external temperature control to provide recyclable constant-temperature cooling liquid for experiments or production.
1. Large screen backlit LCD display with clear indication of set temperature and actual temperature. Independent control of heating, cooling, internal and external circulation functions. 2. ABS injection-molded control components with streamlined design, fine workmanship, and R-rounded corners to prevent operator injury from sharp edges. 3. High-performance stirring circulation motor with low noise, low heat generation, fully enclosed construction, and extended service life. Equipped with a heat-free circulation pump to avoid interference with the bath temperature field. 4. 304 stainless steel worktop and inner tank. The cooling coil is positioned with surface treatment to prevent vibration, corrosion, or rust. 5. Fully enclosed motor impeller with multiple safety protections: low-level dry-heating protection, and both visual and audible alarms in case of over-temperature. 6. Power-off protection and over-temperature alarm function provide multiple safety measures. 7. Fully enclosed refrigeration compressor unit with multiple protective devices against overheating and overcurrent. 8. Adjustable and detachable side doors for easy cleaning of dust without the need for tools. 9. Instrument with temperature calibration and self-tuning function for safe and convenient operation. 10. Circulation interface and drain port use 304 stainless steel barbed connectors. The drain valve is built-in and hidden to ensure aesthetics and prevent damage during transport. 11. Standard configuration includes two sections of flexible circulation silicone tubing with insulation sleeves for flexible and convenient use.
The constant temperature bath uses an outlet to channel the constant-temperature medium inside the bath through an insulated hose to an external location, establishing an external constant-temperature environment. This provides a steady-temperature cooling liquid for testing experiments or production, forming a uniformly temperature-stable liquid environment. The constant-temperature cooling liquid can be recycled and reused. The internal circulation directly subjects samples to constant-temperature tests, while the external circulation uses a high-pressure pump to circulate and stabilize the temperature of the liquid medium inside the bath, enhancing temperature uniformity and reducing temperature fluctuations.
Petroleum, chemical engineering, electronic instrumentation, physics, chemistry, bioengineering, healthcare, life sciences, light industry and food, physical property testing, chemical analysis, and other research departments, higher education institutions, corporate quality inspection and production departments.
1. Place the constant temperature bath on a stable surface and connect the power supply. 2. Connect the circulation interface and drain port as needed, using the standard silicone tube and insulation sleeve. 3. Inject an appropriate amount of liquid medium into the bath. 4. Power on the unit and set the target temperature via the large LCD screen. 5. Independently start or stop the heating, cooling, and internal/external circulation functions as required. 6. Observe the actual temperature after startup; the instrument's temperature calibration and auto-tuning functions can be used for adjustments. 7. After use, turn off all function switches, disconnect the power supply, and clean the instrument.
- Ensure the liquid medium level does not fall below the low-level protection line to prevent the heating tube from running dry. - Place the instrument in a well-ventilated location away from direct sunlight to ensure optimal cooling performance. - Avoid collisions during transportation to prevent damage to the unit. - After prolonged use, regularly clean the dust on the inner panels of the surrounding doors without the need for tools to disassemble them. - Before use, check that the circulation interface and drain port connections are secure to avoid leaks. - If an over-temperature alarm occurs, immediately power off the instrument and investigate the cause. - Do not activate the heating or cooling functions without liquid medium present. - Avoid touching internal moving parts while the instrument is in operation.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
