Product Overview

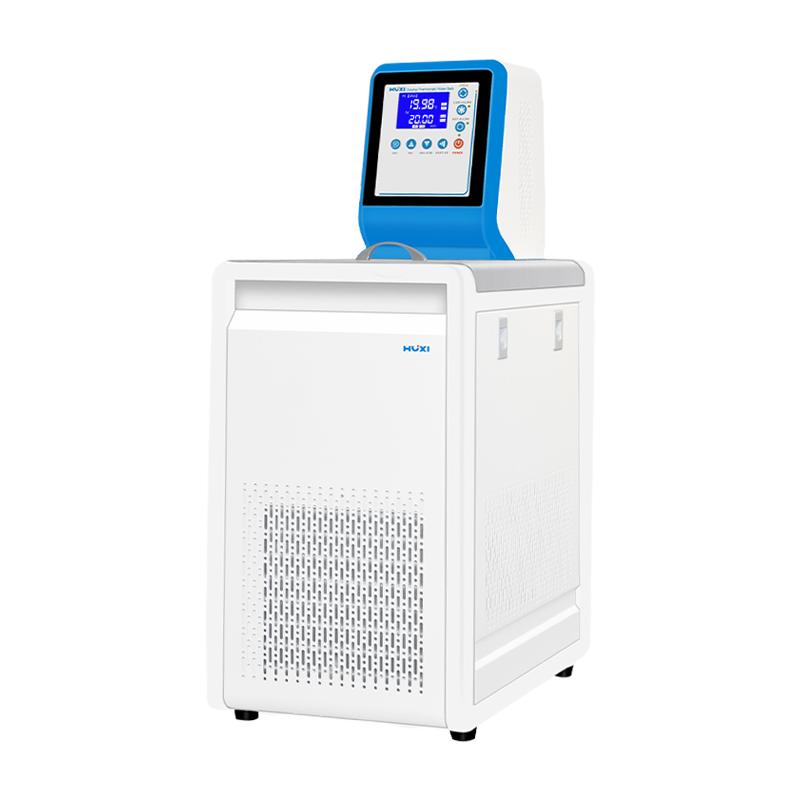

The thermostat bath HLC-1015 adopts an internationally advanced refrigeration system, offering stable and reliable performance. It features both internal and external circulation functions. The internal circulation allows for constant temperature tests or experiments directly within the bath, while the external circulation uses a high-pressure pump to circulate the liquid medium in the bath for constant temperature control, enhancing temperature uniformity and reducing fluctuations. Its principle involves using the outlet to extend the constant temperature medium externally through an insulated hose to establish an external constant temperature, providing a constant temperature coolant for testing or production, with the coolant being recyclable and reusable.
Product Features
1. Large-screen backlit LCD display clearly shows set temperature, actual temperature, and independent functional statuses such as heating, cooling, internal/external circulation.
2. ABS streamlined mold design with R-rounded corners on the front panel and worktable to prevent operators from being injured by sharp edges; molded foam packaging protects against transportation damage.
3. High-performance stirring circulation motor with low noise, low heat generation, fully enclosed design, and long service life; no heat-bearing circulation pump to avoid affecting the tank's temperature field.
4. 304 stainless steel worktable, inner tank, and refrigeration coil with positioning and surface treatment processes, resistant to corrosion, rust, and shaking during transportation or use.
5. Fully enclosed motor impeller to prevent safety hazards; multiple safety protections, including low-liquid-level dry-burn protection for heating tubes, with both visual and audible alarms.
6. Power-off protection and over-temperature alarm functions provide multiple safety measures.
7. Fully enclosed compressor refrigeration unit with built-in overload and overcurrent multiple protection devices.
8. The surrounding door panels are detachable for easy dust cleaning without the need for tools.
9. The instrument features temperature calibration and auto-tuning functionality, ensuring stable and reliable operation while being user-friendly and safe.
10. Circulation interfaces and drainage outlets adopt 304 stainless steel clamp-type quick-connect nozzles for fast and reliable installation; the drainage valve is hidden internally to prevent transportation damage.
11. Standardly equipped with two sections of silicone circulation tubing and insulation sleeves for flexible use.
Working Principle
The thermostatic bath utilizes an outlet to externally channel the constant-temperature medium inside the bath through an insulated hose, establishing an external constant-temperature environment and providing cooling liquid at a stable temperature for testing experiments or production. The liquid circulates via a high-pressure pump, achieving a uniform and stable liquid environment, and the cooling liquid can be reused in a cycle.
Application Area
Research departments, higher education institutions, enterprise quality inspection and production departments in fields such as petroleum, chemicals, electronic instrumentation, physics, chemistry, bioengineering, health, life sciences, light industry and food, physical property testing, and chemical analysis.
In compliance with standards.
Not mentioned.
Operating steps
Not mentioned.
Precautions
Not mentioned.
