Product Overview

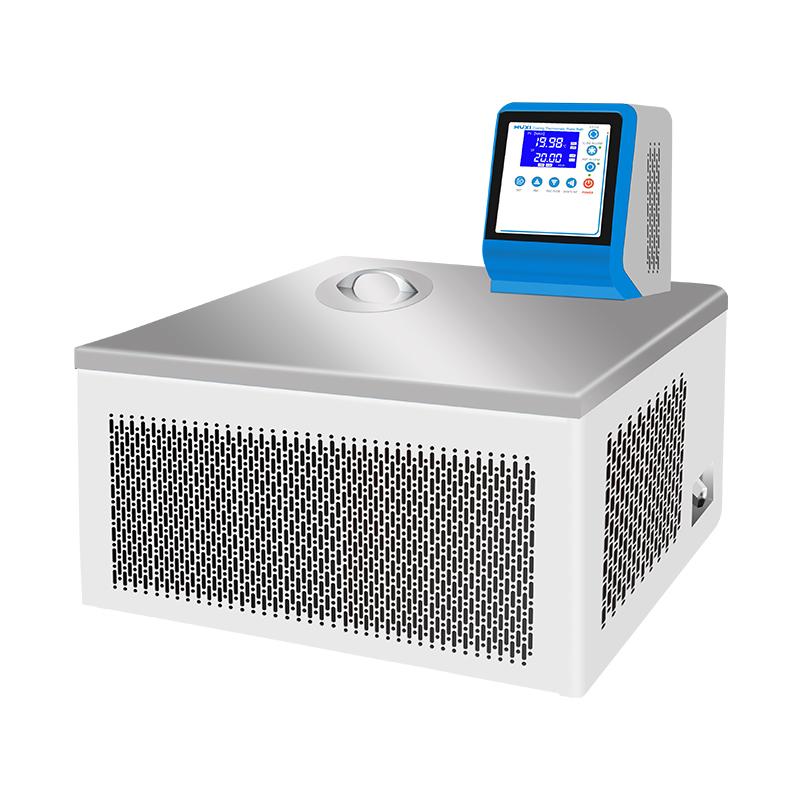

The HUXI HLC-1006W horizontal thermostat bath is a compact and elegantly designed temperature control device, which can be used as a dedicated constant temperature bath for viscometers or for other constant temperature experiments. Its large Φ110mm opening accommodates beakers of various sizes, including 500ml, and is equipped with stainless steel bracket bases of different specifications, facilitating rotational viscometer testing. This bath fully complies with the JJG 1002-2005 Verification Regulation for Rotational Viscometers. The liquid temperature inside the bath is directly transferred to the sample, and the rotor of the rotational viscometer can be conveniently placed into the beaker for testing.
Product Features
1. PID control with set temperature, time, and actual temperature display; allows independent activation or deactivation of the “Cooling” and “Circulation” functions.
2. Background password login authorization; parameters can be modified at any time, with an optional 485 communication function.
3. ABS mold-based control section with a streamlined appearance; the front panel and work surface adopt an ergonomic R-rounded design.
4. High-performance stirring circulation motor with low noise, low heat generation, semi-enclosed design, and long service life; uses a heat-free circulation pump.
5. 304 stainless steel worktable and inner liner; cooling coils feature enhanced positioning and surface treatment to resist corrosion and rust.
6. Motor impellers are available in fully enclosed and semi-enclosed types; optional liquid level alarm device; multiple safety protections include low liquid level dry-heating protection for heater tubes and audible/visual alarm alerts.
7. Power-off protection and over-temperature/over-time alarm functions.
8. Fully enclosed compressor unit for cooling, with multiple protections against overheating and overcurrent.
9. Side panels are flexibly detachable for easy dust cleaning.
10. Instruments feature temperature calibration and self-tuning functionality.
11. Circulation interfaces and drain outlets use 304 stainless steel barbed connectors; the drain valve is recessed and concealed.
12. Internal and external circulation functions; external circulation inlet/outlet feature 10mm round tubes; includes silicone tubing, insulation sleeves, and shorting silicone tubing as standard.
13. Optional stainless steel bases in different sizes based on container dimensions.
Working Principle
The thermostatic bath precisely regulates temperature through a PID control system. The liquid inside the bath maintains a constant temperature via a stirring circulation motor and a fully enclosed compressor refrigeration system. The temperature is directly transferred to the sample placed in the bath through the liquid, and the rotor of the rotational viscometer can perform tests within the beaker. The instrument features both internal and external circulation functions. External circulation can achieve constant temperature externally through connected silicone tubes, while for internal circulation, the inlet and outlet can be short-circuited to evenly distribute the temperature within the bath.
Application Areas
Thermostatic Bath for Viscometer, Verification of Rotational Viscometer, Constant Temperature Experiment
Compliant with the standard.
JJG 1002-2005 Verification Regulation of Rotational Viscometers
