$ 1029.00Ex works
The core parameters include +/- 0.1 ° C temperature control accuracy and 15L capacity, featuring large-screen LCD display, heat-free circulation pump, 304 stainless steel liner and multiple safety protections.
Category : Thermostatic Bath
Brand : HuXi
SKU : NB050930
Service :The delivery and service By NBCLab.Com

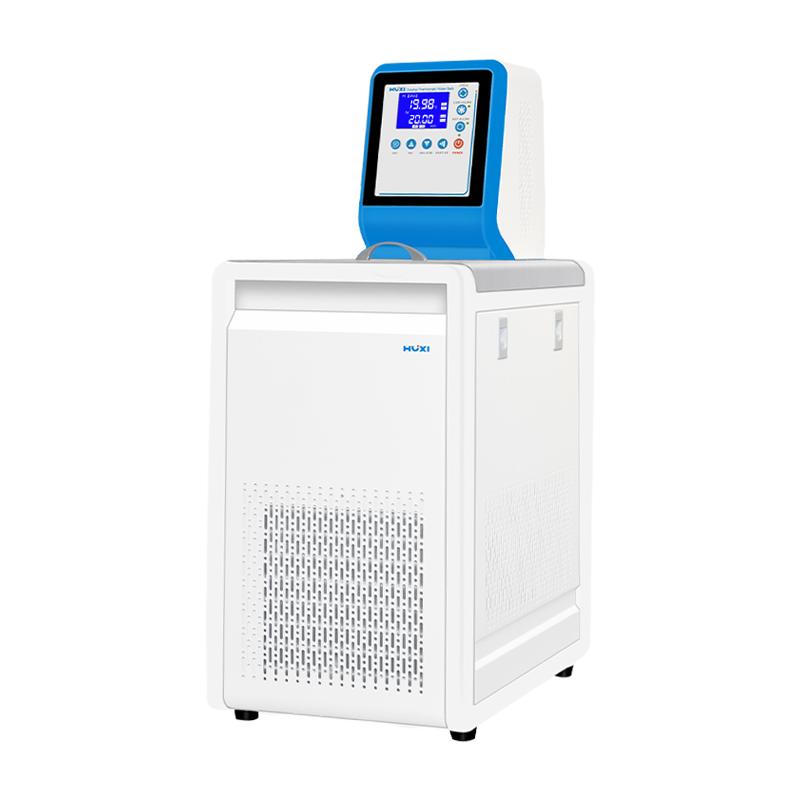

The HULXIR HLC-0515 thermostat bath uses an internationally advanced refrigeration system, offering stable and reliable performance. It conducts constant temperature tests on samples or products inside the bath through internal circulation. Meanwhile, external circulation circulates constant-temperature liquid via a high-pressure pump, enhancing temperature uniformity and reducing fluctuations. This instrument is widely used in research departments such as petroleum, chemical engineering, electronic instruments, physics, chemistry, bioengineering, hygiene, life sciences, light industry, food science, physical property testing, and chemical analysis. It is also applied in colleges, universities, corporate quality inspection departments, and production departments to provide a precisely controlled liquid environment with stable and uniform temperatures.
1. Large-screen backlit LCD display clearly shows status information such as set temperature and actual temperature. 2. ABS mold design and streamlined appearance, combined with R rounded corners, prevent operators from being injured by sharp edges. 3. High-performance stirring circulation motor with low noise, low heat generation, full enclosure, and long service life. 4. Equipped with a heat-free circulation pump to prevent traditional water pumps from affecting the tank's temperature field due to self-generated heat. 5. 304 stainless steel worktop and inner tank, with refrigeration coils treated for positioning and surface finishing, offering corrosion and rust resistance. 6. Fully enclosed motor impeller to prevent safety hazards; multiple safety protections, including low-level empty heating protection and alarm function. 7. Power-off protection and over-temperature alarm function provide multiple safety measures. 8. Fully enclosed compressor unit for refrigeration, with multiple protection devices for overheating and overcurrent. 9. The surrounding door panels can be flexibly disassembled for easy dust cleaning. 10. The instrument operates stably and reliably, with temperature calibration and self-tuning functions. 11. Circulation ports and drainage outlets use 304 stainless steel hose barb fittings, with a built-in concealed drainage valve. 12. Standard configuration includes two sections of circulation silicone hoses with insulation sleeves for convenient and flexible use.
The constant temperature bath directly performs constant temperature tests or measurements on test samples or products inside the tank through internal circulation. The external circulation function uses a high-pressure pump to circulate and maintain the temperature of the liquid medium in the tank. Through the outlet, the constant temperature medium in the tank is externally led via insulated hoses to establish an external constant temperature environment, providing constant temperature cooling liquid for testing experiments or production. This liquid can be recycled and reused, ensuring a uniform and constant temperature liquid environment.
Petrochemical, electronics instrumentation, physics, chemistry, bioengineering, healthcare, life sciences, light industry and food, physical property testing, chemical analysis, higher education institutions, enterprise quality inspection, and production departments.
1. Place the instrument on a stable, well-ventilated surface and connect the power supply. 2. Turn on the power switch and set the required temperature via the large LCD screen. 3. Independently start or stop functions such as "Heating," "Cooling," and "Internal/External Circulation" as needed. 4. Connect the standard silicone circulation tubes and thermal insulation sleeves to the external circulation ports, ensuring a reliable seal. 5. Place the test samples or products inside the tank, or connect them to external equipment through the external circulation tubing. 6. Monitor the temperature displayed on the LCD screen, and wait for it to stabilize before conducting tests or production operations. 7. After use, turn off heating, cooling, and circulation functions, then switch off the power. 8. To drain the liquid in the tank, use the built-in concealed drain valve, and regularly clean the instrument to remove dust.
- Avoid running the heating tube at low liquid levels to prevent damage from dry heating. - When the instrument alarms (with both light and sound warnings), promptly check and troubleshoot the issue. - Ensure a stable power connection to avoid equipment malfunctions caused by power outages. - Regularly clean the dust inside the surrounding door panels to maintain optimal cooling performance. - Before use, check that the circulation ports and drains are securely installed to prevent leakage. - Avoid operating in flammable or explosive environments and ensure proper ventilation. - After prolonged operation, check the cooling system for overheating to ensure safety. - Be careful not to touch high-temperature or low-temperature components during operation to prevent burns or frostbite. - During transport, ensure that foam packaging is intact to prevent damage. - After use, promptly drain any liquid and clean the equipment to extend its service life.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
