Using two-stage RO plus two-stage Resin four-stage filtrate, the desalination rate exceeds 96%; ultra-pure water and pure water are produced at the same time; the water production speed reaches 100L/H, and the effluent Flow rate is 17L/min; 10G pressure bucket and 200L liquid storage bucket are equipped to meet the large amount of continuous water use; intelligent automatic control and real-time monitoring of water quality.
Category : Laboratory Pure Water System
Brand : HuiNuo
SKU : NB050935
Service :The delivery and service By NBCLab.Com

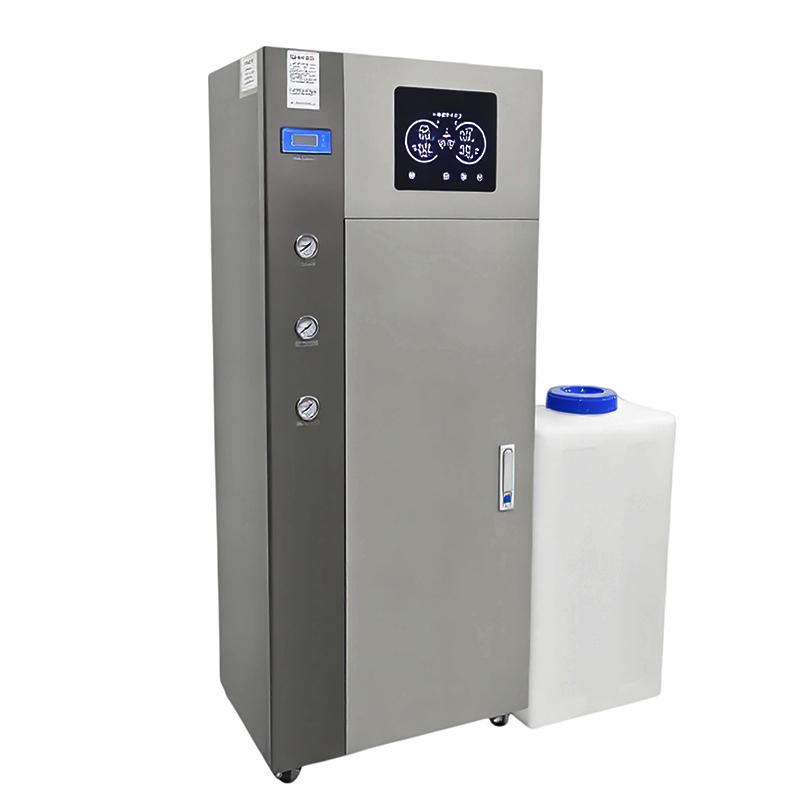

The HiiNor HN-UV/SUN-3DZ laboratory ultrapure water system is specifically designed for laboratory applications with high water quality requirements. It employs advanced two-stage reverse osmosis (RO) water treatment technology and a two-stage resin purification process, using municipal tap water as the source. This system simultaneously produces ultrapure water meeting Class I water standards (resistivity > 10MΩ·cm) and pure water meeting Class III water standards. The unit delivers a water production rate of up to approximately 100 liters per hour and comes standard with an external 10G pressure tank and a 200L high-capacity storage tank. The ultrapure water output flow rate reaches 17L/min, fully meeting the continuous, high-volume, and multi-scenario water demands of laboratories.
1. High-efficiency two-stage reverse osmosis (RO) technology with a pore size of only 0.0001 microns, achieving an effective removal rate of ≥96%. 2. Two-stage resin purification using high-quality ultrapure water terminal filter materials from reputable brands, requiring no regeneration. 3. Dual water quality output, simultaneously producing ultrapure water (resistivity >10 MΩ·cm) and purified water (conductivity <5 μs/cm). 4. High-flow rapid water production and large-capacity water storage, with a water production rate of approximately 100 liters per hour, standard external 10G pressure tank and 200L storage tank, and an ultrapure water output flow rate of 17 L/min. 5. Quiet and stable operation, featuring a high-pressure silent pump from a reputable brand with low noise and minimal vibration. 6. Four-stage precision filtration, including PP precision filter, CTO activated carbon filter, first-stage RO membrane, second-stage RO membrane, and two-stage resin filtration (ultrapure column). 7. Intelligent fully automatic control, with automatic shutdown when the tank is full, automatic startup when the water level drops, and automatic standby when the raw water supply is interrupted or water pressure is too low. 8. Real-time monitoring of effluent water quality, with a digital panel displaying the conductivity and resistivity of the purified water. 9. High-quality water circuit system, made of inert materials such as PE and POM to avoid secondary contamination, with optimized pipeline design. 10. Convenient maintenance and economical operation, with replaceable pre-treatment filter cartridges and built-in snap-in filter cartridges for quick replacement.
This equipment uses municipal tap water as its source and produces purified water through a four-stage core treatment unit. First, the raw water passes sequentially through a PP precision filter and a CTO activated carbon filter to remove impurities such as sediment, rust, suspended solids, residual chlorine, odors, and organic matter. Then, it is filtered through two stages of reverse osmosis (RO) membranes with a pore size of 0.0001 microns for stepwise desalination, achieving a cumulative effective removal rate of over 96%, along with the removal of heavy metals, bacteria, viruses, and pyrogens. Finally, it undergoes fine purification through secondary resin filtration (ultra-purification columns) using high-quality brand end filter media that does not require regeneration, producing ultrapure water with a resistivity of >10 MΩ·cm while maintaining effective control over TOC and SiO₂ levels. The equipment operates fully automatically, shutting down automatically when the water tank is full, restarting automatically when the water level drops, and entering standby mode when the raw water supply is interrupted, ensuring safety and stability.
High-Performance Liquid Chromatography (HPLC), Atomic Absorption Spectroscopy (AAS), Ion Chromatography (IC), Mass Spectrometry (MS), cell culture and molecular biology experiments, standard solution preparation and precision analytical experiments, water supply for various high-sensitivity analytical instruments, routine laboratory glassware cleaning, and buffer solution preparation.
Grade 1 water standard, Grade 3 water standard
1. Ensure the equipment is properly installed and connected to the municipal tap water supply and power source. 2. Open the water inlet valve and start the equipment; the fully automatic water production process begins. 3. Observe the digital display panel to monitor the conductivity and resistivity of the purified water in real-time, confirming that the water quality meets standards. 4. According to experimental requirements, collect water from either the ultrapure or purified water outlet. 5. When the water tank is full, the main unit automatically shuts down; it restarts automatically when the water level drops. 6. Regularly inspect and replace the pretreatment filter cartridges (PP precision filter cartridge and CTO activated carbon filter cartridge), designed with a snap-on mechanism for quick replacement. 7. If the raw water supply is interrupted or the pressure is too low, the equipment automatically enters standby mode and restarts when the supply is restored.
- The equipment has certain requirements for raw water supply conditions. Failure to meet the parameters may result in contamination and damage to the RO membrane module. - Performance damage caused by operation under non-standard production conditions is not covered by the warranty. - To operate beyond specified conditions, a suitable pre-treatment system must be selected to improve raw water quality. - Changes in raw water conditions and operating parameters will lead to variations in the equipment's production capacity. - The ultrapure cartridge contains non-renewable filter media and requires direct replacement. - During operation, avoid running the equipment dry as it may cause damage. The system will automatically enter standby mode when the raw water supply is interrupted. - Use genuine original parts during maintenance to ensure water quality and performance. - Please read the product manual carefully before installation and use, and follow the operating guidelines.
