Using secondary RO + secondary Resin + UV digestion four-stage treatment, the resistivity of the produced water is > 10MΩ · cm, and the TOC is as low as trace. The water production rate is 100L/h, the ultra-pure water Flow rate is 17L/min, and the dual water quality is produced at the same time to meet the needs of high Sensitivity analysis.
Category : Laboratory Pure Water System
Brand : HuiNuo
SKU : NB050936
Service :The delivery and service By NBCLab.Com

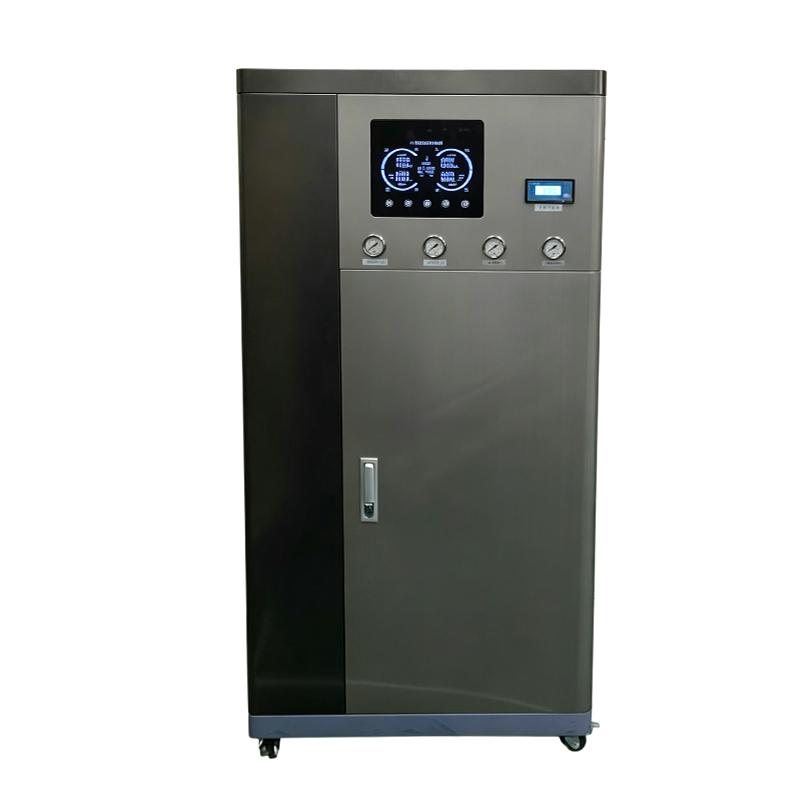

The Huinuo HN-UV/SUN-3DZX laboratory ultrapure water system is specifically designed for laboratories with stringent water quality requirements. It incorporates advanced two-stage reverse osmosis (RO) water treatment technology, a two-stage resin purification process, and an integrated UV ultraviolet digestion module. Using municipal tap water as the source, it simultaneously produces ultrapure water meeting Type I water standards (resistivity > 10 MΩ·cm) and pure water meeting Type III water standards. The UV ultraviolet digestion technology effectively reduces total organic carbon (TOC) in ultrapure water, meeting the needs of sensitive precision experiments such as HPLC, GC, and TOC analysis, which are highly demanding in terms of organic content. The system achieves a production rate of up to approximately 100 liters per hour, with an ultrapure water flow rate of 17 L/min, fully meeting the continuous, high-volume, and high-standard water demands of laboratory applications.
1. Efficient two-stage reverse osmosis (RO) technology: pore size 0.0001 μm, two-stage RO in series to improve desalination efficiency. 2. UV digestion module: 185nm/254nm dual-wavelength UV irradiation reduces TOC and disinfects. 3. Secondary resin purification: high-quality terminal filter media requires no regeneration, effluent resistivity >10 MΩ·cm. 4. Dual water quality output: simultaneously produces ultrapure water (Grade 1) and purified water (Grade 3). 5. High flow rate rapid production and large-capacity water storage: production rate approx. 100 L/h, with standard 10G pressure tank + 200L storage tank, ultrapure water output flow rate 17 L/min. 6. Silent and stable operation: branded high-pressure silent pump reduces noise and vibration. 7. Four-stage precision filtration + UV module: PP filter, CTO activated carbon, secondary RO membrane, secondary resin filtration, and UV module. 8. Intelligent fully automatic control: automatic shutdown at full water level, automatic standby protection when water supply is cut off. 9. Real-time monitoring of output water quality: digital panel displays purified water conductivity and resistivity. 10. High-quality water path system: pressurized closed design, pipes and connectors made of inert PE and POM materials to avoid secondary contamination. 11. Convenient maintenance and economical operation: replaceable filter cartridges, economical and easy to replace.
This device uses municipal tap water as the source and processes it through four stages of precision filtration (PP filter, CTO activated carbon, two-stage RO reverse osmosis membrane), two-stage resin purification, and an integrated UV disinfection module. The specific process is as follows: the raw water first passes through a PP filter and a CTO activated carbon filter to remove sediment, suspended solids, residual chlorine, etc.; then it undergoes preliminary desalination through a first-stage RO reverse osmosis membrane; subsequently, a second-stage RO reverse osmosis membrane performs a secondary fine filtration, achieving a cumulative desalination rate of over 96%. Finally, it passes through a two-stage resin filter (ultra-purification column) to ensure that the effluent resistivity is >10 MΩ·cm. Meanwhile, the UV disinfection module uses 185nm/254nm dual-wavelength ultraviolet light to reduce TOC and kill bacteria, ultimately producing ultrapure water and pure water.
High-performance liquid chromatography, gas chromatography, total organic carbon analysis, atomic absorption spectroscopy, ion chromatography, mass spectrometry, cell culture and molecular biology experiments, standard solution preparation and precision analytical experiments, water supply for various high-sensitivity analytical instruments, routine laboratory glassware cleaning and buffer solution preparation.
1. Connect to municipal tap water, ensuring the raw water meets equipment parameter requirements. 2. Plug in the power supply and start the equipment. 3. The equipment automatically produces and stores water; the main unit automatically shuts off when the tank is full. 4. Use ultrapure water (Grade 1) or purified water (Grade 3) as needed. 5. The digital display panel monitors water quality in real-time. 6. Regularly inspect and replace pretreatment filters and resin filter cartridges.
- This equipment has certain requirements for raw water supply conditions; changes in raw water conditions and operating conditions may lead to variations in water production capacity. - Raw water and operating conditions that do not meet the specified parameters may cause contamination and damage to the RO membrane components. - Equipment performance damage resulting from operation under non-standard production conditions is not covered by the warranty. - If operation beyond the specified conditions is required, a suitable pretreatment system must be selected to improve the raw water quality. - The filter cartridge is designed to be replaceable and requires regular replacement to ensure stable water quality.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
