Product Overview

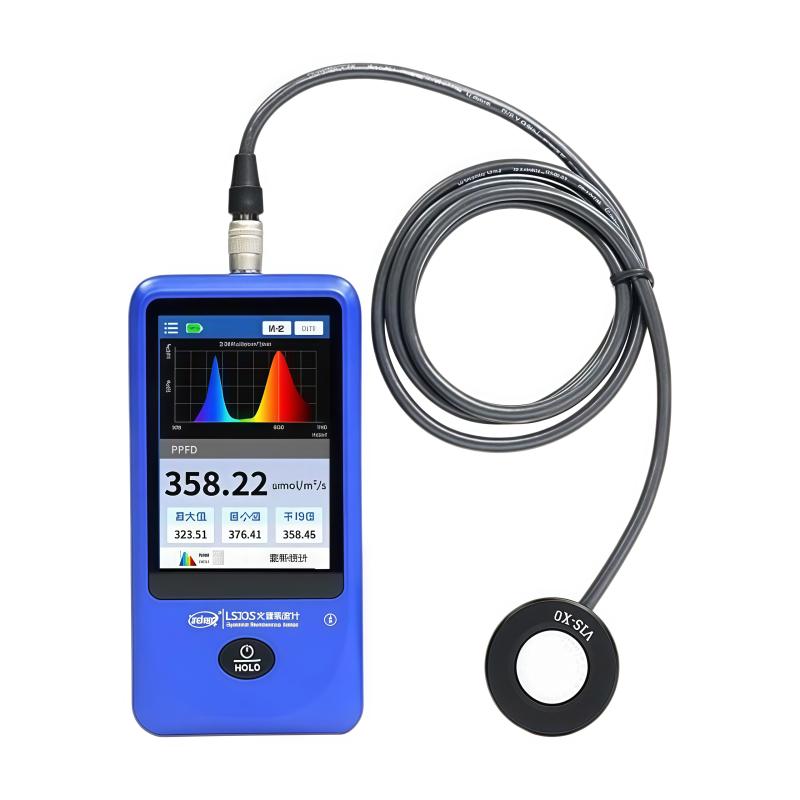

This instrument is a split-type spectral illuminance meter, featuring a 3.5-inch large color touchscreen design for easy and convenient operation. It is widely used for measuring illuminance, UV index, correlated color temperature, flicker frequency, modulation depth, color rendering index, color tolerance, temperature, humidity, and blue light hazard ratio in applications such as indoor lighting, outdoor lighting, greenhouse lighting, and stage lighting. It can display a spectrum to identify lamp types and assess blue light hazards.
Product Features
1. 3.5-inch large color touchscreen for easy operation and convenient reading.
2. Displays spectral curves to identify whether the lamp is a full-spectrum LED.
3. 1 million Lux ultra-wide range, suitable for illuminance measurement in various occasions.
4. Measurement of environmental parameters such as UV index, temperature, and humidity for greenhouse light source testing.
5. High-precision spectral sensor with spectral response fully consistent with the V(λ) function.
6. Stroboscopic measurement function to evaluate whether the lamp's flicker meets national standards.
7. Color rendering index measurement function to assess the lamp's ability to reproduce colors.
8. Correlated color temperature measurement function to determine if the lamp's color temperature meets requirements.
Working Principle
This instrument receives light sources through a high-precision spectral sensor, converting optical signals into electrical signals. The built-in spectral response is fully consistent with the V(λ) function, enabling precise measurement of parameters such as illuminance, UV index, correlated color temperature, flicker frequency, flicker depth, color rendering index, color tolerance, temperature, humidity, and blue light hazard ratio. It also generates spectral charts for analysis.
Application Areas
Lighting fixtures, outdoor lighting, greenhouse lighting, stage lighting.
According to standard
National standard
Operation Steps
1. Turn on the instrument and enter the main interface.
2. Select the desired measurement function (e.g., illuminance, color temperature, flicker) via the 3.5-inch color touchscreen.
3. Aim the sensor at the light source to be measured, ensuring there are no obstructions.
4. Read the measurement data and spectrum curve displayed on the screen.
5. To record data, use the touchscreen to save it.
Precautions
- Avoid strong vibrations and impacts during measurement.
- Keep the sensor surface clean to ensure measurement accuracy.
- Do not use in high temperature, high humidity, or strong electromagnetic interference environments.
- When not in use for an extended period, turn off the power and store in a dry place.
- Instrument calibration must be performed by professionals; do not disassemble on your own.
