Product Overview

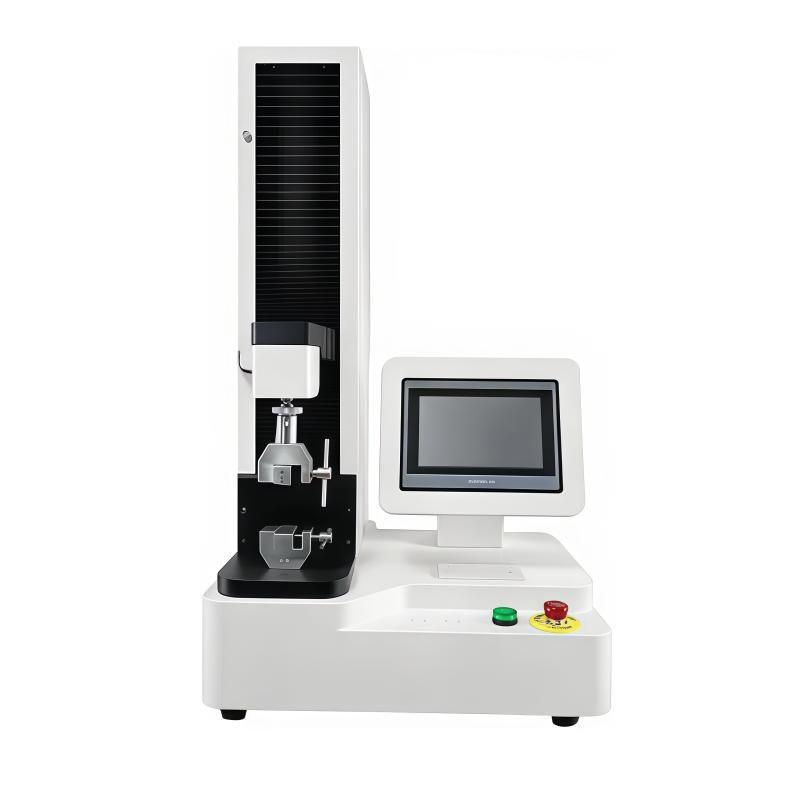

MED-01 Medical Packaging Material Mechanical Performance Tester is designed in accordance with the new pharmaceutical packaging material standards. It is primarily used for testing the heat seal strength, tensile strength, peel strength, and elongation at break of products such as pharmaceutical packaging materials, aluminum foil, PVC hard sheets, composite films, syringes, and cartridges. It also performs ampoule breaking force tests, as well as tests for aluminum-plastic combination cap opening force, puncture force, and aluminum foil tearing force. Additionally, it tests syringe sealing performance, extrusion force, sliding properties, and needle-to-needle hub connection force. This instrument is a multifunctional testing device that integrates various fixtures for diverse test applications.
Product Features
1. Menu-based interface for easy and convenient operation, making it simple to learn, understand, and use.
2. Compatible with various test methods, including tensile, peel, opening force, puncture force, breaking force, and piston mobility tests.
3. Large LCD screen fully displays real-time measurement data, change curves, and test results.
4. The instrument can independently conduct tests, and its built-in micro printer can promptly print each test result.
5. Equipped with a USB interface and professional measurement and control software, allowing software-controlled operation of the instrument for various tests.
6. The professional software can display real-time data and change curves during tests, and test data can be saved for comparison.
7. Multiple functional operations, including parameter settings, printing, viewing, clearing, and calibration, can be performed for different test projects.
8. Features overload protection, limit protection, travel protection, and automatic return to starting position upon test completion.
Working Principle
Mount the specimen between two grips. The grips move in opposite directions, and a puncture or opening force test is conducted using a specially designed grip. The instrument's force measurement system accurately records the changes in force and displacement during this process, thereby obtaining the corresponding force data.
Application Field
Rubber stoppers for medicinal use, ampoules, aluminum-plastic composite caps, composite film bags, PVC hard sheets, medicinal aluminum foil.
Compliant with standards
YBB00152002-2015、YBB00212005-2015、YBB00232005-2015、YBB00222005-2015、YBB00182004-2015、YBB00202005-2015、YBB00242002-2015、YBB00212004-2015、YBB00132005-2015、YBB00142005-2015、YBB00152005-2015、YBB00092005-2015
Operating steps
1. Clamp the specimen between the two grips.
2. Select the appropriate grip for puncture or opening force testing.
3. Measure the variation in force and displacement using the instrument's force measurement system.
4. Record and analyze the test data. Results can be printed via the micro printer or processed through the USB interface with software.
Precautions
- Ensure the instrument is properly installed and calibrated before use.
- Follow the interface instructions during operation to avoid misuse.
- Pay attention to limit protection during testing to prevent mechanical overload.
- After the test, the instrument can automatically return to its initial position, but the specimen and fixture status should be checked.
- Regularly inspect all components of the instrument to ensure safe operation.
- Operate according to relevant standards to ensure accurate test results.
- Do not exceed the rated load; ensure the instrument's safety.
- The instrument must not be operated by children or untrained personnel.
