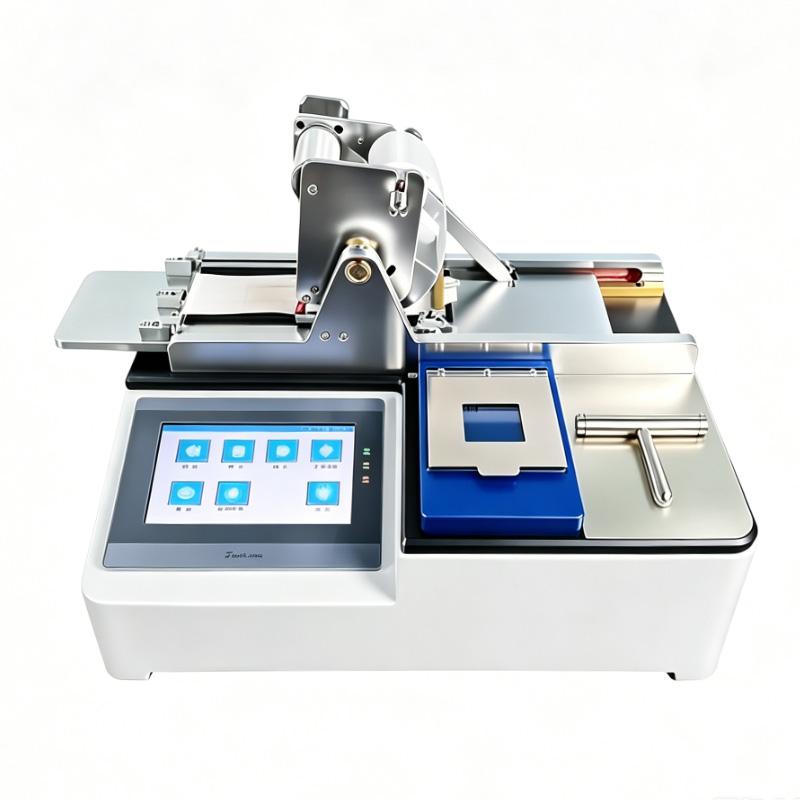

Yunda YD-XSX-A Ink Absorption Tester Measurement of ink wiping speed 15.5cm/min

Name: Yunda YD-XSX-A Ink Absorption Tester Measurement of ink wiping speed 15.5cm/min
Brand: YunDa
SKU: NB050944
Price: 3380.0 USD
Availability: InStock

$ 3380.00Ex works

The ink wiping speed is 15.5cm/min and the opening area of the ink coating platen is 20 +/- 0.4cm ², the absorption time of inks is automatically controlled by 120 +/- 5s, and the human-machine interface is 4.3 inches, which can accurately reflect the penetration of inks to paper and conjunctiva.

Model

YD-XSX-A

Get Quote

Category : Ink Absorption Tester

Brand : YunDa

SKU : NB050944

Service :The delivery and service By NBCLab.Com

Product Overview

The printing ink absorbency tester is a testing device used to measure the ability of paper or paperboard to absorb standard ink over a specific time and area. It is primarily used to evaluate the paper's acceptance of ink and its capacity to absorb the binder in the ink, directly affecting ink penetration and film formation. This tester is essential for evaluating ink absorbency in the papermaking, printing, and packaging industries.

Product Features

1. Determine the ability of paper or paperboard to absorb standard ink within a specified time and area. 2. Evaluate the paper's ink receptivity and binder absorption capacity. 3. Directly affect ink penetration and film formation, reflecting the ink's penetrability into the paper.

Working principle

This instrument evaluates the ink receptivity of paper or paperboard and its ability to absorb the binder from ink by measuring the ink absorption performance over a specified time and area. This process reflects the permeability of ink into the paper, occurring over an extended period from the moment the ink contacts the paper surface to its complete curing on the paper, thereby influencing the drying and surface properties of the ink film on the paper.

Application areas

Paper making, printing, packaging

Conforms to standards.

QG/T 12911-91 "Method for the Determination of Ink Absorbency of Cardboard"

Precautions

- Ensure the instrument usage complies with QG/T 12911-91 standard. - Control the accuracy of time and area during testing. - The sample should be kept clean and dry. - Standard ink should be used according to the specified formula and conditions. - Operators must be trained to avoid human errors.

ink erasing speed
15.5±cm/min
Opening area of ink-coated platen
20±0.4cm2
Inked platen thickness
0.1mm
Automatic mechanism controls absorption inks time
120±5s
Human Machine Interface
4.3
Working Ambient Temperature
(20 +/- 10 ° C), Humidity < 85%
power supply
220V±10％ 50Hz
power consumption
90W
Dimension
535×308×280mm
weight
33kg
