Product Overview

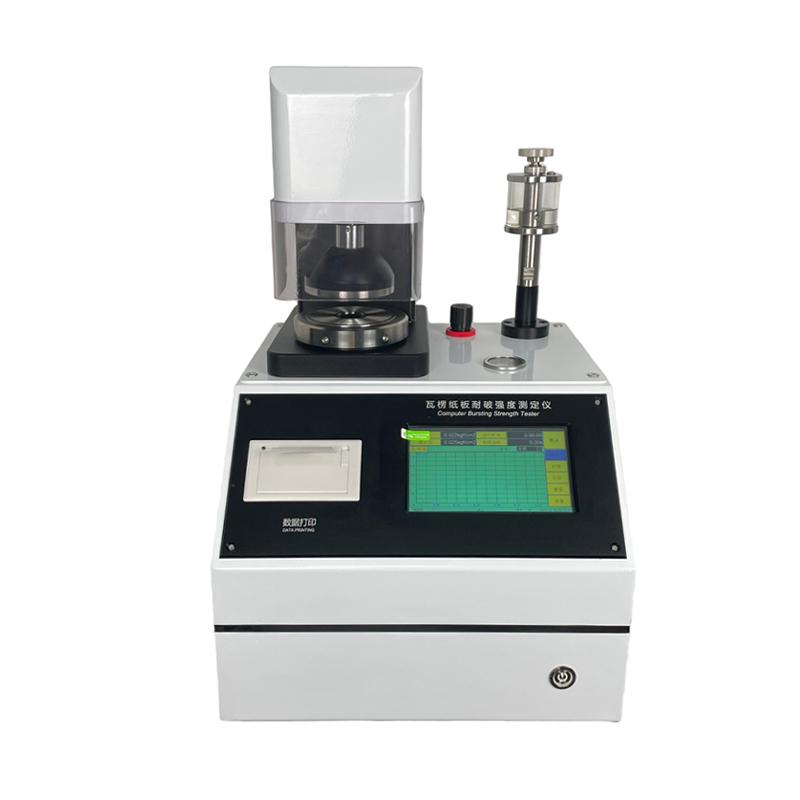

The vertical high-precision bursting strength tester is designed in accordance with the internationally accepted Mullen method, serving as a dedicated instrument for testing the bursting strength performance of various types of paper. It complies with standards such as ISO 2758 "Paper—Determination of bursting strength" and GB 454 "Method for determination of bursting strength of paper". The instrument incorporates various functions specified in the standards, including parameter testing, conversion, adjustment, display, memory, and printing. It also features data processing capabilities, enabling direct calculation of statistical results for various data. The instrument offers automatic reset, convenient operation, and stable performance, making it suitable for bursting strength tests on various types of paper as well as non-paper materials such as silk and cotton fabric.
Product Features
1. Anti-explosion membrane function to reduce operational errors.
2. Over-range alarm function to protect precision sensors.
3. Bilingual operating menu (Chinese-English) with seamless language switching.
4. Three-dimensional semicircular full-view observation window, incorporating a 3D-bent high-strength acrylic protective cover.
5. High-speed ARM processor for high automation, fast data acquisition, fully automatic measurement, and intelligent judgment for safety and reliability.
6. 32-bit high-precision AD converter (resolution up to 1/10,000,000) combined with a high-precision, stable pressure sensor to ensure speed and accuracy in force data acquisition.
7. Displays pressure and deformation curves while providing real-time pressure readings.
8. Modular integrated thermal printer with fast printing speed and convenient paper replacement.
9. Multiple unit options, allowing switching between kPa, kgf/cm², and lbf/in².
Working principle
This instrument is designed based on the internationally accepted Mullen method. It is controlled by a high-speed ARM processor and utilizes a high-precision pressure sensor along with a 32-bit high-accuracy AD converter to collect force value data. It performs automatic measurement and intelligent determination of the bursting strength of paper or other materials. The instrument can display pressure and deformation curves in real time, and automatically resets, calculates, and prints various statistical results after testing.
Application Fields
Various types of paper, silk, cotton, and other non-paper materials
Compliant with standards
GB/T454 "Paper - Determination of bursting strength" and ISO 2758 "Paper - Determination of bursting strength"
Operating steps
1. Connect the power and turn on the instrument.
2. Switch the language via the Chinese/English menu and set test parameters (e.g., unit selection) as needed.
3. Place the specimen in the test area, ensuring it is firmly secured.
4. Start the test; the instrument will automatically perform a fully automated measurement.
5. After the test is complete, the instrument will automatically display the results, pressure curve, and deformation curve.
6. If printing is required, use the modular thermal printer to print the report.
7. Upon test completion, the instrument automatically resets and prepares for the next test.
Precautions
- Ensure the protective cover (3D bent high-strength acrylic protective cover) is closed before operation.
- Avoid exceeding the measurement range to protect the precision sensors.
- When changing samples, ensure the upper and lower pressure rings are clean.
- When using the burst film function, install the burst film correctly according to the instructions.
- When replacing paper in the thermal printer, use qualified thermal paper.
- Place the instrument in a stable, dry environment and avoid strong vibrations.
- If an abnormal alarm occurs, stop using the instrument immediately and check it.
- Calibrate the sensors regularly to ensure testing accuracy.
