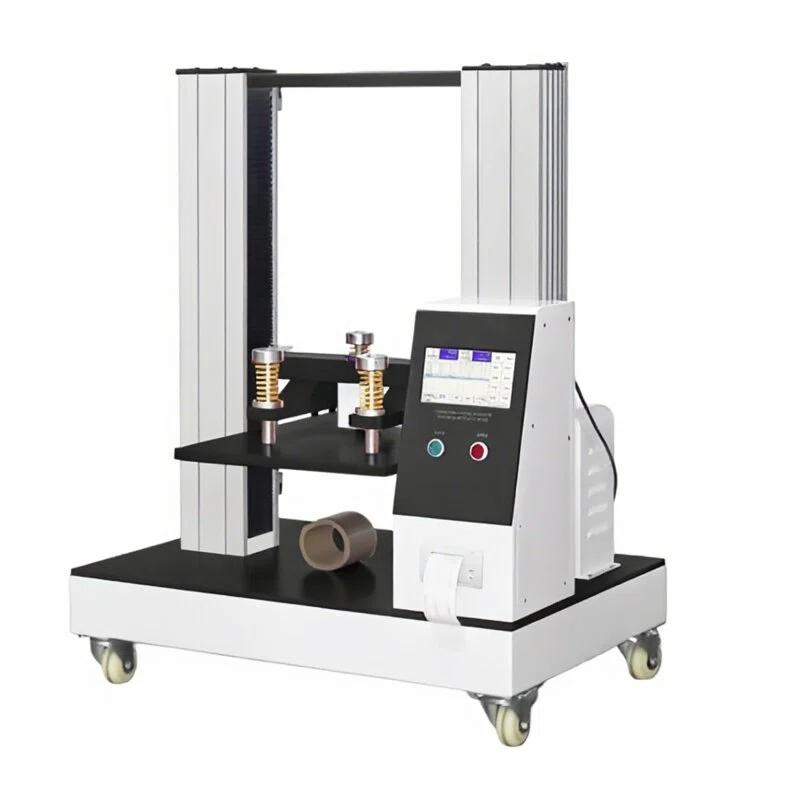

Yunda YD-ZGK paper tube compression machine, paper tube compression testing machine 1T capacity

Name: Yunda YD-ZGK paper tube compression machine, paper tube compression testing machine 1T capacity
Brand: YunDa
SKU: NB050964

Please contact customer service

Using 1-level accuracy Sensor and 1T capacity, after the test is completed, it will automatically return and judge the crushing force. All Chinese LCD display Operating interface, adjustable speed, and a variety of units to choose from.

Model

YD-ZGK

Get Quote

Category : Compression Strength Tester

Brand : YunDa

SKU : NB050964

Service :The delivery and service By NBCLab.Com

Product Overview

YD-ZGK Paper Tube Compression Tester is suitable for paper tubes with an outer diameter of up to 600mm. Also known as the paper tube pressure resistance tester or paper tube compression testing machine, it is a fundamental instrument for testing the compressive performance of paper tubes. It is designed with high-precision sensors and high-speed processing chips to ensure sampling accuracy.

Product Features

1. After the test is completed, it has an automatic return function, automatically determines the crushing force, and automatically saves the test data. 2. The speed is adjustable, with a full Chinese LCD display operation interface, and multiple units are available for selection. 3. Equipped with a micro printer, it can directly print the test results.

Working Principle

By using high-precision sensors and high-speed processing chips, pressure is applied to the paper tube to measure its compressive performance, automatically determining the crushing force and saving the data.

Application Areas

Paper tubes, paper cores, paper bowls

Conforms to the standard

BB/T 0032、ISO 11093-9、GB/T 22906.9、GB/T 27591-2011

Operating Steps

None mentioned

Precautions

No mention.

Capacity selection
1 T (optional 500 kg, 2 T)
Paper tube outer diameter
Within 600 mm
test space
600×800 mm
Test speed
10～150 mm/min
Power resolution
1/200000
Display resolution
1 N
accuracy grade
Level 1
displacement unit
mm、cm、in
unit of strength
kgf、gf、N、kN、lbf
stress unit
MPa、kPa、kgf/cm2、lbf/in2
Control mode
Microcomputer Control (Optional Computer Operating system)
Display mode
Electronic LCD display (optional computer display)
software function
Chinese and English language swap
shutdown mode
overload shutdown, automatic shutdown for specimen damage, automatic shutdown for upper and lower limit setting
safety device
Overload protection, limit element protection device
Machine power
AC variable frequency motor drive controller
Mechanical system
High Accuracy Ball Screw
power supply
AC220V/50HZ~60HZ 4A
Machine weight
Approx. 120 kg
