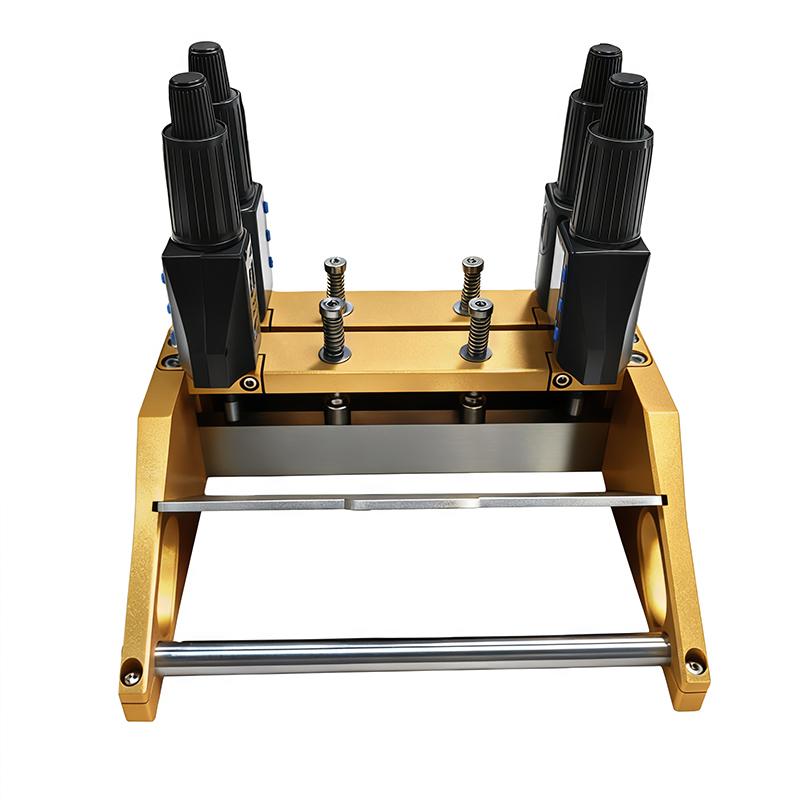

HuiNuo KTQ-200-2S digital display adjustable preparation device (double Drawdown blade) 0~ 5000μm adjustable accuracy +/- 2μm

Name: HuiNuo KTQ-200-2S digital display adjustable preparation device (double Drawdown blade) 0~ 5000μm adjustable accuracy +/- 2μm
Brand: HuiNuo
SKU: NB050972
Price: 1074.0 USD
Availability: PreOrder

$ 1074.00Ex works

Drawdown blade design, easy to clean to achieve double-decked Spreader; differential head accuracy adjustment, film thickness 0~ 5000μm; with baffle plate to reduce waste; die steel Drawdown blade, accuracy +/- 2μm.

Model

KTQ-200-2S

Get Quote

Category : Film Applicator

Brand : HuiNuo

SKU : NB050972

Service :The delivery and service By NBCLab.Com

Product Overview

The H-uinuo KTQ-200-2S digital adjustable applicator (dual scraper) is a next-generation scraper detachable film applicator, featuring a magnetic scraper design and differential gap coating principle, which solves the cleaning challenges posed by coating high-viscosity, easily solidifying materials. It offers a variety of coating widths from 50mm to 600mm to meet the needs of different application scenarios.

Product Features

1. Magnetically attachable and detachable dual-scraper structure for easier cleaning and effortless double-layer coating 2. Micrometer-precise thickness adjustment (optional scale or digital display) 3. Adjustable material retaining plate to improve film density and reduce material waste 4. High-hardness die steel scraper and sandblasted aluminum oxide frame, lightweight, wear-resistant, and corrosion-resistant 5. Adjustable film thickness range: 0–5000 μm 6. Scraper accuracy: ±2 μm to 5 μm (varies by model, non-exaggerated specification) 7. Available in multiple coating widths from 50 mm to 600 mm, with custom support

Working principle

The differential gap scraping principle is adopted, and the magnetic suction scraper design enables the scraper to be detachable, allowing for the scraping of high-viscosity, fast-curing materials. The differential head precisely adjusts the coating thickness, and the adjustable material blocking plate enhances coating denseness while reducing material waste.

Application Areas

Coating and ink R&D & quality inspection, lithium battery electrode preparation, optical film coating, adhesive testing, ceramic slurry, nanomaterials research

wet film thickness
0~5000um
application width
200mm
Drawdown blade accuracy
±2um
Drawdown blade straightness
±2um
Graduation of digital differential head
1um
Net weight
860g
type
Drawdown blade removable
Rack material process
Sand blasting anodic oxidation
Drawdown blade material process
Die steel
differential head
digital display
Differential head brand
green quantity
