Product Overview

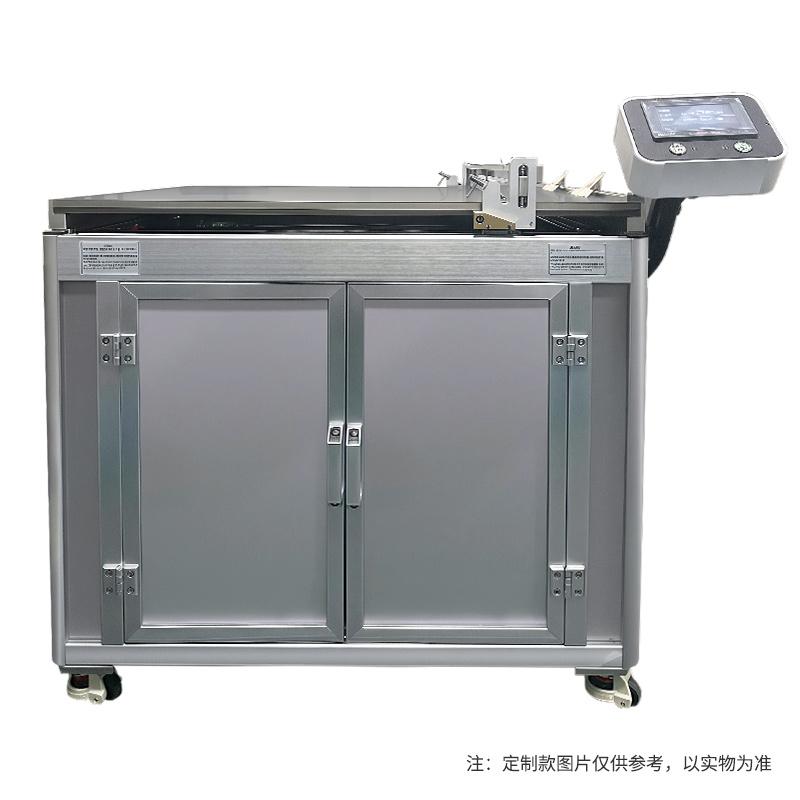

Automatic Film Applicator is a device for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This multi-functional Automatic Film Applicator supports bar Spreader and Blade Coating two coating methods. It is suitable for high, medium and low viscosity material Spreaders. It has heating and Vacuum chuck functions to meet the needs of different material Spreaders. The new simple bar installation method and clamshell magnetic suction drawdown blade greatly improve the efficiency of Spreaders and facilitate cleaning. Touchscreen control, simple operation, can freely set Spreader speed and Spreader length. Spreader size and function can be customized according to experimental requirements.
Product Features
1) Aluminum alloy hard oxidation surface preparation Spreader baseplate, Abrasion Resistance is good, flatness is high; 2) Big brand differential regulator, drawdown blade film thickness control accuracy is high; 3) Simple snap bar groove, easy loading and unloading, avoid bar abrasion; 4) New clamshell magnetic drawdown blade design, easy and fast cleaning; 5) High Accuracy film applicator, original imported bar film uniform, high accuracy; 6) Touchscreen control panel, simple operation; 7) Spreader length, Spreader speed free adjustment; 8) With heating and Vacuum chuck function; 9) Adopt Servo motor, more stable operation, higher film accuracy; 10) Floor-Standing structure, without position restrictions, with universal wheel can move freely.
Working Principle
Automatic Film Applicator controls the Spreader head and Spreader parameters to evenly Spreader the sample on the substrate to form the desired film. The device uses a servo motor to drive the Spreader head, and cooperates with heating and Vacuum chuck functions to ensure the stability of the Spreader process and the uniformity of the film.
application field
Inks, Stock, Lithium Battery, Adhesive, hot-melt adhesive, gel, Resin, glue, polymer materials, polymer materials, pharmaceuticals and other film samples can be scraped on different substrates such as Glass, cardboard, non-woven fabric, film, release paper, plastic, silicone, etc.
Operation steps
1) Select the bar or Blade Coating method according to the material; 2) Install the bar or drawdown blade; 3) Set the Spreader length and Spreader speed; 4) Place the substrate on the Spreader baseplate and turn on the Vacuum chuck to fix; 5) Start the Spreader program to complete the film; 6) Clean the Spreader head.
