Product Overview

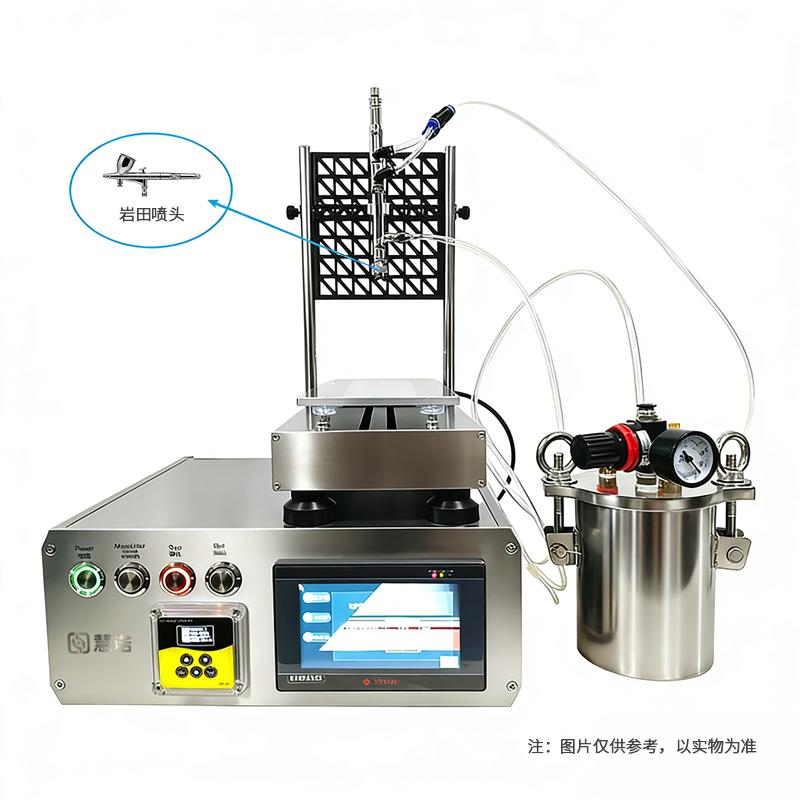

HuiNuo PTM1100/01 is a small area automatic spray coating machine specially designed for polymer emulsion and other materials, using reciprocating lame plating structure. The equipment is equipped with a blue brand airbrush (0.3mm nozzle), adopts gravity type pot feeding, and is equipped with Platen Heating function (room temperature to 100 ℃). It supports spray gun XY reciprocating motion. The traverse speed, lame plating times and pause time can be programmed, and the nozzle height can be flexibly adjusted. The equipment lame plating area of 235mm * 235mm, using PLC plus 5 inch Touchscreen control, compact structure can be put into the standard fume cupboard, suitable for all kinds of sheet substrate laboratory automatic film and precision lame plating operation.
Product Features
1. Equipped with a blue brand airbrush, the nozzle size is 0.3mm, the liquid injection system is small in size, and the liquid injection volume can be controlled
2. The substrate heating function can reach 100 ℃
3. XY reciprocating motion, closed-loop stepper motor drives the spray gun to reciprocate in X and Y directions, lame plating coverage is uniform, and the speed is adjustable
4. Programmable cycle lame plating, support setting lame plating times, traverse speed, pause time (0 - 60 minutes), suitable for multi-layer or thick film coating process development
5. Nozzle height can be adjusted, according to the substrate Film thickness and lame plating process needs flexible adjustment distance
6. Adjustable air pressure and paint output, lame plating air pressure 0.1 - 0.29 MPA adjustable, paint output supports external adjustment
7. Gravity type upper pot feeding, paint cup capacity 7ml, suitable for small batch sample testing, reducing material waste
8. PLC plus 5-inch Touchscreen, intuitive operation, support parameter preset and process monitoring, help to improve experimental repeability
Working Principle
PTM1100/01 adopts "gravity type feeding plus pneumatic atomization lame plating plus XY reciprocating motion" cooperative Operating Mode: Blue brand airbrush (0.3mm nozzle) feeds through gravity type pot, air pressure and paint output can be adjusted, and the paint atomization is micron-level droplets; closed-loop stepper motor drives the spray gun to reciprocate in the XY direction (speed adjustable), Platen Heating function (room temperature to 100 ° C) can assist coating drying; PLC cooperates with Touchscreen coordinated motion, lame plating and timing control, supports multiple cycles of lame plating and pause settings in the middle.
application field
Polymer emulsion film formation research (such as acrylic, polyurethane, fluorocarbon emulsion), low viscosity functional coatings (hydrophobic coatings, Optical inspection coatings, barrier coatings, antibacterial coatings), dyestuff Spreader, fluorescent indicator Spreader, color development Spreader, biocompatible coatings (protein, polysaccharide and other biological macromolecule solutions), low temperature heat curing coatings (80 - 100 ℃ can be cured Resin system), multi-layer coating process development
Operation steps
1. Connect power and air source, set lame plating air pressure (0.1 - 0.29 MPA)
2. Add the paint to the gravity type upper pot (capacity 7ml) and adjust the paint output
3. Place the substrate in the Platen Heating area and set the heating temperature as required (room temperature to 100 ° C).
4. Set lame plating parameters through Touchscreen: traverse speed, lame plating times, pause time (0 - 60 minutes)
5. Adjust the nozzle height to adapt to the substrate Film thickness
6. Start the device and start the automatic lame plating cycle
7. After finishing, take out the sample and clean the brush and pot body.
Precautions
- This equipment is suitable for liquid materials with low viscosity, no particles or fine particles (recommended less than 0.1mm)
- For materials containing solids, high viscosity or requiring high temperature curing, it is recommended to consult customer service to confirm the appropriate configuration
- Make sure it is well ventilated before use and can be placed in a standard fuming cupboard
- Regularly clean the airbrush and feeding system to prevent clogging
- Pay attention to prevent burns after using the heated baseplate
Please wear the necessary protective equipment when operating
