Product Overview

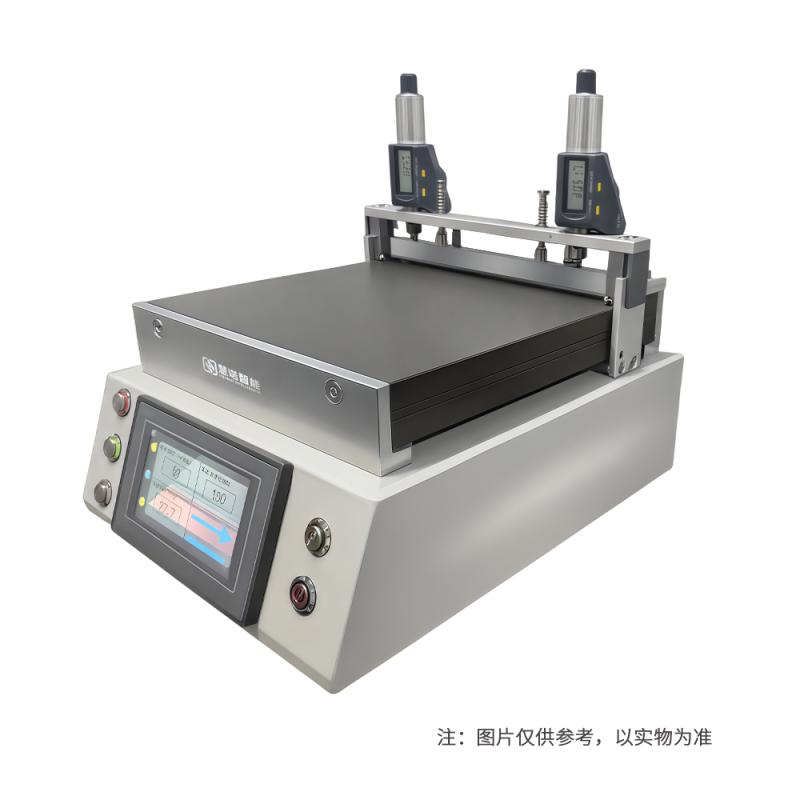

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Automatic Film Applicator is a small automatic Film Applicator that can be used in glove boxes. It adopts bar and drawdown blade double coating method, which can be separated from the knife holder. The design is easy to clean, and the magnetic drawdown blade can be quickly replaced. The closed-loop stepper motor drives to precisely control the scraping distance and speed. Planetary gear reducer + rack and pinion drive is more reliable and durable.
Product Features
1) Float Glass countertop. 2) Big brand differential regulator with high film thickness control accuracy. 3) Separable tool holder for easy cleaning, magnetic suction drawdown blade for easy replacement. 4) With High Accuracy film applicator, the original imported bar film uniform accuracy is high. 5) Touchscreen control panel, easy to operate. 6) Spreader length and Spreader speed are freely adjusted. 8) Closed-loop stepper motor drive to precisely control the scraping distance and speed. 9) Planetary gear reducer + rack and pinion drive is more reliable and durable.
Working Principle
The Working Principle of the Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This Automatic Film Applicator adopts the bar and drawdown blade double coating method, and the scraping distance and speed are precisely controlled by the closed-loop stepper motor drive. The planetary gear reducer and rack and pinion drive achieve reliability and durability.
application field
Paint, inks, paints, Stock, Lithium Battery, Pressure sensitive adhesive, Resin, Glue, Polymer Materials, Pharmaceuticals and other film sample preparation, can be scraped on Glass, cardboard, fabric
Operation steps
1) Prepare the substrate and sample. 2) Place the substrate on the float Glass countertop. 3) Select the bar or Blade Coating method according to the needs and install the corresponding film applicator. 4) Set the Spreader length and Spreader speed through the Touchscreen control panel. 5) Start the Automatic Film Applicator and automatically film. 6) After the film is completed, remove the sample for subsequent processing.
Precautions
Make sure the equipment is placed smoothly before use.
- Regularly clean the tool holder and drawdown blade to avoid residual substances affecting the film mass.
- Pay attention to safety during operation and avoid touching moving parts.
- Use according to product specifications to avoid overload operation.
Store in a dry, clean environment to avoid moisture and pollution.
- Follow the relevant standards for filming operations to ensure the accuracy of the results.
