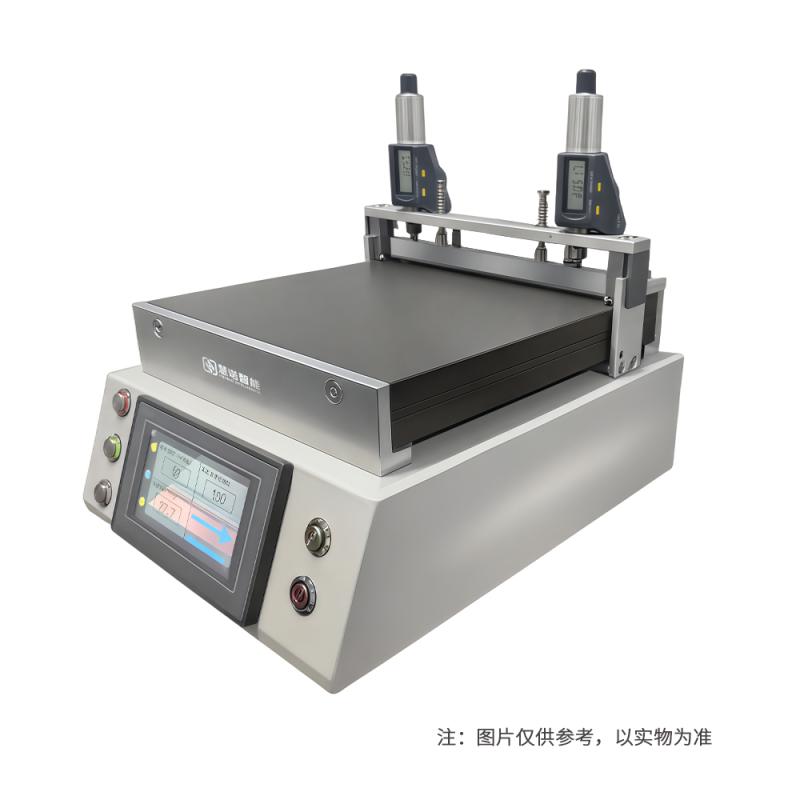

HuiNuo TM3000/02mini Automatic Film Applicator Glove Box Special drawdown Bar & Blade Double Spreader 210 × 150mm

Name: HuiNuo TM3000/02mini Automatic Film Applicator Glove Box Special drawdown Bar & Blade Double Spreader 210 × 150mm
Brand: HuiNuo
SKU: NB050994

Please contact customer service

Adopt drawdown Bar & Blade double coating method, closed-loop stepper motor drive, precise control of speed and distance. Planetary gear reducer and rack and pinion drive, durable and reliable. Magnetic drawdown blade quick replacement, easy to clean.

Model

TM3000/02mini

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB050994

Service :The delivery and service By NBCLab.Com

Product Overview

Automatic Film Applicator is a device for intermediate coating film in the laboratory. This is an Automatic Film Applicator for small glove boxes. It adopts the bar and drawdown blade double coating method. The separable tool holder is designed to clean easily. The magnetic suction drawdown blade realizes quick replacement. The closed-loop stepper motor drives to precisely control the scraping distance and speed. The planetary gear reducer + rack and pinion drive is more reliable and durable. Its Working Principle is to evenly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the required film.

Product Features

1) Float Glass countertop.\ n2) Big brand differential regulator with high film thickness control accuracy.\ n3) Separable tool holder for easy cleaning and magnetic drawdown blade for easy replacement.\ n4) Equipped with High Accuracy film applicator, the original imported bar film has high uniform accuracy.\ n5) Touchscreen control panel, simple operation.\ n6) Spreader length and Spreader speed can be adjusted freely.\ n8) Closed-loop stepper motor drive to precisely control the scraping distance and speed.\ n9) Planetary gear reducer + rack and pinion drive is more reliable and durable.

Working Principle

By controlling the Spreader head and Spreader parameters, the sample is uniformly Spreader on the substrate to form the desired film.

application field

Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples

coating method
Bar + drawdown blade
coating speed
1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Float Glass Table
Coating table size
Subject to the actual product
effective coating area
210 * 150Mm (can be customized)
meyer rod coating thickness range
Film thickness is different, with High Accuracy bar
meyer rod coating accuracy
±0.001mm
Blade Coating Film thickness range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Blade Coating Width
150mm
Blade Coating accuracy
±0.003mm
Motor type
Closed loop stepper motor
operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host power supply
100V~220V/50~60HZ
power
1800w
dimensions
Subject to the actual product
weight
About 30kg, subject to the actual product.
