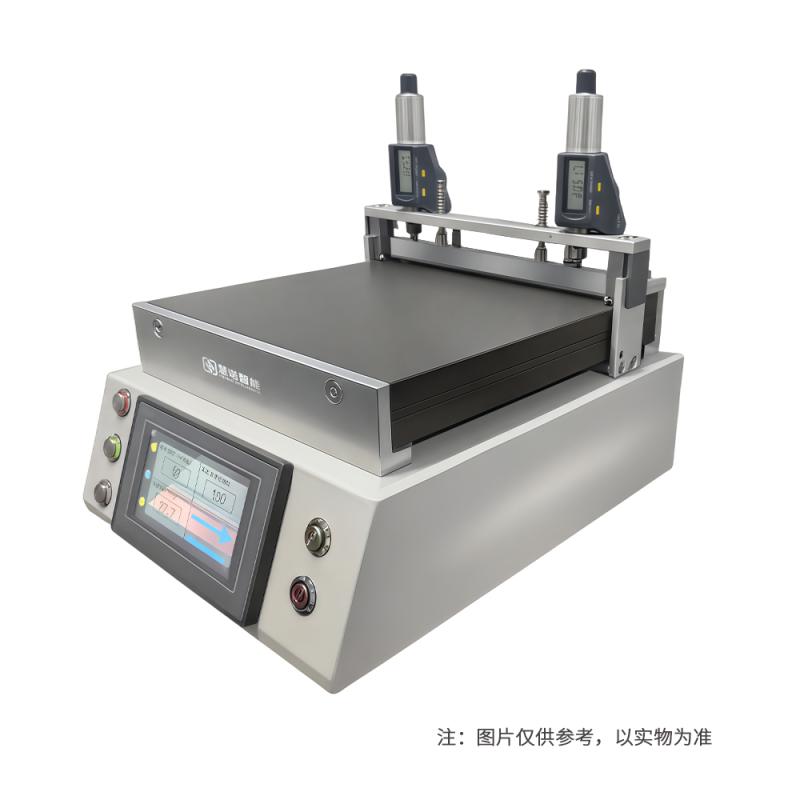

HuiNuo TM3100/02mini Automatic Film Applicator drawdown Bar & Blade Dual Spreader Glove Box 210x150mm

Name: HuiNuo TM3100/02mini Automatic Film Applicator drawdown Bar & Blade Dual Spreader Glove Box 210x150mm
Brand: HuiNuo
SKU: NB050996
Price: 4269.0 USD
Availability: PreOrder

$ 4269.00Ex works

Adopt bar and drawdown blade double coating method, magnetic drawdown blade rapid replacement, closed-loop stepper motor drive, planetary gear reducer + rack and pinion drive reliable and durable, Spreader accuracy +/- 0.003mm, coating speed 1~ 300mm/s stepless speed regulation.

Model

TM3100/02mini

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB050996

Service :The delivery and service By NBCLab.Com

Product Overview

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Automatic Film Applicator is a small automatic Film Applicator that can be used in glove boxes. It adopts bar and drawdown blade double coating method, which can be separated from the knife holder. The design is easy to clean, and the magnetic drawdown blade can be quickly replaced. The closed-loop stepper motor drives to precisely control the scraping distance and speed. Planetary gear reducer + rack and pinion drive is more reliable and durable.

Product Features

1) Surface hard treatment aluminum alloy. 2) Big brand differential regulator, high film thickness control accuracy. 3) Separable tool holder for easy cleaning, magnetic suction drawdown blade for easy replacement. 4) Equipped with High Accuracy film applicator, the original imported bar film uniform accuracy is high. 5) Touchscreen control panel, easy to operate. 6) Spreader length, Spreader speed freely adjusted. 8) Closed-loop stepper motor drive precise control of scraping distance and speed. 9) Planetary gear reducer + rack and pinion drive is more reliable and durable.

Working Principle

The Automatic Film Applicator uniformly Spreaders the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.

application field

Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, Glues, Polymer materials, Pharmaceuticals

coating method
Bar + drawdown blade
coating speed
1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Surface hard treatment aluminum alloy
Coating table size
Subject to the actual product
effective coating area
210 * 150Mm (can be customized)
meyer rod coating thickness range
Film thickness is different, with High Accuracy bar
meyer rod coating accuracy
±0.001mm
Blade Coating Film thickness range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Blade Coating Width
150mm
Blade Coating accuracy
±0.003mm
Heating method
Mica sheet heating (optional graphene heating, faster thermal conductivity)
Heating temperature range
RT +~ 180 ℃ (can be customized)
Temperature Uniformity
±1℃
Motor type
Closed loop stepper motor
operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
power supply
100V~220V/50~60HZ
power
1800w
dimensions
Subject to the actual product
weight
About 30kg, subject to the actual product.

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
