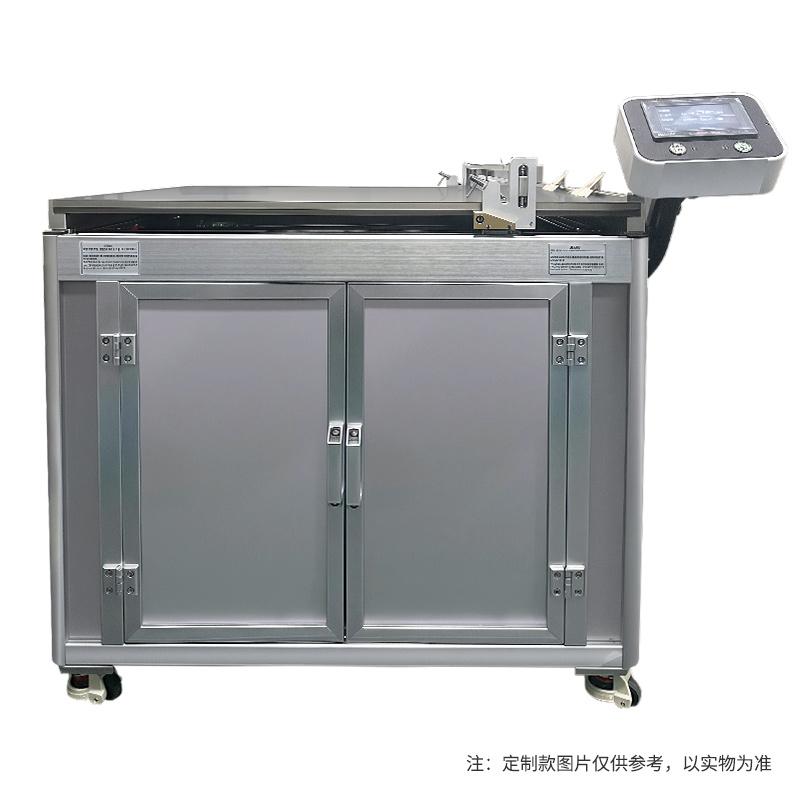

Product Overview
This Floor-Standing Automatic Film Applicator belongs to the bar drawdown blade Coater, which integrates two functions of bar Spreader and Blade Coating. The innovative bar installation method is matched with the clamshell drawdown blade head, which effectively improves the efficiency of the Spreader and facilitates the cleaning and maintenance of the equipment. The equipment has the functions of Spreader speed control and Spreader length adjustment, and is suitable for the needs of high Accuracy film in laboratories. It is widely used in Moulding proofing work in related fields such as university research institutes, New material, lithium batteries, glue, Resin, etc.
Product Features
1. Using high flatness cemented aluminum alloy baseplate, hard texture, scratch resistance, not easy to abrasion, to ensure the stability of Spreader reference.
2. Equipped with big brand differential regulator, accurate film thickness control, reduce film Film thickness deviation, improve experimental repeability.
3. Flip type Blade Coating head design, easy to disassemble, simple and efficient cleaning, saving preparation time.
4. With High Accuracy film applicator and original imported bar, Spreader has good uniformity and stable accuracy.
5. With Touchscreen control panel, the interface is simple and easy to understand, the operation process is convenient, and no complex training is required.
6. Support the free adjustment of Spreader length and Spreader speed, and flexibly adapt to various sample preparation scenarios.
Working Principle
This device integrates the two functions of bar Spreader and Blade Coating, uses the high flatness aluminum alloy baseplate as the Spreader reference, and cooperates with the differential regulator to precisely control the film thickness. The bar installation method is innovative and the drawdown blade head is a flip design, which realizes uniform coating during the Spreader process, and adjusts the length and speed of the Spreader through the Touchscreen control panel to ensure film accuracy and repeability.
application field
Coatings, inks, paints, Stocks, Lithium Battery Related Materials, Pressure sensitive adhesives, Resin, Glue, Polymer Materials, Pharmaceuticals, Glass, Cardboard, Fabrics
Operation steps
1. Prepare samples and substrates (e.g. Glass, cardboard, fabric).
2. Set the Spreader length and Spreader speed according to requirements.
3. Install bar or adjust Blade Coating head to desired film thickness.
4. Start the device for Spreader operation.
5. After completing the Spreader, remove the drawdown blade or bar for cleaning and maintenance.
Precautions
- Make sure the baseplate is clean and free of debris before use.
- Select the appropriate substrate and coating method according to the sample characteristics.
- Avoid scratching surfaces with hard objects when cleaning drawdown blades.
- Regularly check the differential regulator accuracy to ensure accurate film thickness control.
- Avoid touching moving parts during operation to prevent pinching.
- If the equipment malfunctions, please contact a professional for repair and do not disassemble it yourself.
