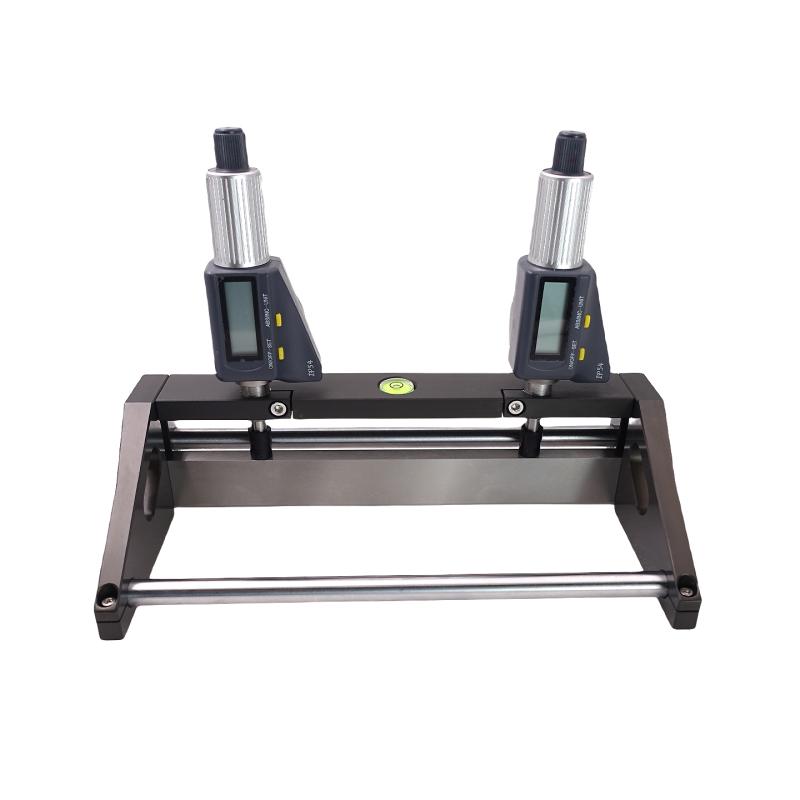

HuiNuo KTQ-55S Digital Display Adjustable Preparation, Magnetic drawdown blade Spreader width 55mm

Name: HuiNuo KTQ-55S Digital Display Adjustable Preparation, Magnetic drawdown blade Spreader width 55mm
Brand: HuiNuo
SKU: NB051000
Price: 383.0 USD
Availability: PreOrder

$ 383.00Ex works

The magnetic detachable drawdown blade is used to solve the problem of difficult cleaning of high viscosity materials; the film thickness is adjustable from 0 to 5000 μm, and the accuracy is +/- 2 μm; the green differential head is precisely adjusted, and the width of the Spreader is 55mm, which meets the needs of precision Spreaders.

Model

KTQ-55S

Get Quote

Category : Film Applicator

Brand : HuiNuo

SKU : NB051000

Service :The delivery and service By NBCLab.Com

Product Overview

HuiNuo KTQ-55S digital display adjustable fabricator is a new type of removable drawdown blade film applicator. Based on the principle of differential gap scraping, the magnetic drawdown blade is designed to solve the cleaning problems of high viscosity and easy curing materials. It provides a variety of Spreader width options and is suitable for different application scenarios.

Product Features

1. Magnetic detachable drawdown blade structure, easier to clean 2. Film thickness adjustment with green differential head (scale, digital display optional) 3. drawdown blade high hardness die steel material, hard aluminum oxide frame, lightweight and wear-resistant and corrosion-resistant 4. Adjustable film thickness range 0~ 5000μm 5. drawdown blade accuracy +/- 2μm to 5μm (depending on model) 6. Provide a variety of film widths of 50-600mm and support customization

Working Principle

Applicators operate on the principle of differential gap scraping, using a magnetic drawdown blade structure with a precise micro head to adjust the gap between the drawdown blade and the substrate, thereby achieving precise control of film thickness in the range of 0 to 5000 microns.

application field

Coatings, inks R & D and Quality control, Lithium battery Electrode prepative, Optical inspection Film Spreader, Adhesive testing, Nanomaterials research

type
Removable drawdown blade
wet film thickness
0~5000um
Spreader Width
55mm
Drawdown blade accuracy
±2um
Rack material process
Aluminum hard oxidation
Drawdown blade material process
Die steel
size
174 * 100 * 55mm (length * width * height, excluding differential head)
net weight
860g
differential head
green quantity
Drawdown blade straightness
±2um
Graduation of digital differential head
1um
