Product Overview

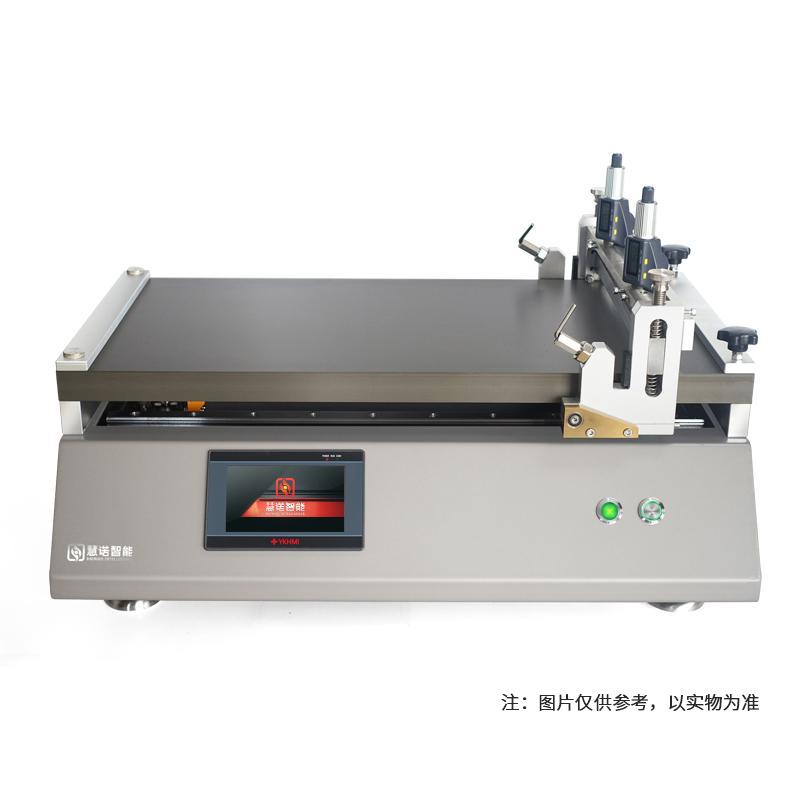

TM3000Pro/35 Automatic Film Applicator is a drawdown Bar & Blade Spreader device for laboratory scenes. It can replace the traditional manual film operation and complete the film coating through automatic control, effectively improving the film accuracy and sample preparation efficiency. The device relies on precise control of the movement of the Spreader head and various Spreader parameters to evenly Spreader various experimental samples on the surface of the substrate to form a stable and uniform experimental film. This machine integrates the dual functions of bar Spreader and Blade Coating, adopts innovative bar mounting structure and clamshell drawdown blade design, greatly simplifies the cleaning and maintenance process while improving the efficiency of Spreader, and is equipped with adjustable Spreader speed and Spreader length to meet the diverse needs of experimental Moulding. It is widely suitable for laboratory High Accuracy film proofing work in the fields of university research institutes, New material research and development, lithium battery materials, glue and Resin.
Product Features
1. Equipped with high flatness cemented aluminum alloy coated table baseplate, with excellent scratch resistance performance, to ensure long-term use stability.
2. Using big brand differential regulator, accurate film thickness control, to meet the requirements of High Accuracy Moulding in the laboratory.
3. Flip type Blade Coating head design, easy to disassemble and clean, reduce the residue of experimental consumables, improve the use efficiency.
4. Standard High Accuracy film applicator and original imported bar, excellent film uniformity and Film thickness accuracy.
5. Equipped with a color LCD Touchscreen control panel, the interface is simple and intuitive, and the operation is easy to use.
6. Spreader length and Spreader speed can be adjusted freely as needed to meet the needs of different samples and experimental protocols.
Working Principle
The device automatically controls the movement of the Spreader head, adjusts the speed, length and other parameters of the Spreader, and uniformly Spreaders the samples on the surface of the substrate to form a stable film. Combining the dual functions of bar Spreader and Blade Coating, relying on high-flatness aluminum alloy baseplate and precise differential regulator to ensure film thickness control, clamshell design is easy to clean and maintain.
application field
Coatings, inks, paints, Stocks, Lithium Battery Materials, Pressure sensitive adhesives, Resins, Glues, Polymer Materials, Pharmaceuticals
Operation steps
1. Select the bar or Blade Coating module according to the experimental requirements.
2. Place the substrate (such as Glass, cardboard, fabric) on the coating table baseplate.
3. Set the Spreader length and Spreader speed through the color LCD Touchscreen.
4. Install film applicator or bar, adjust differential regulator to set film thickness.
5. Start the device, and the Spreader head automatically completes the film job.
6. After the Spreader is completed, remove the sample and clean the equipment parts.
Precautions
- Ensure that the surface of the coating table baseplate is clean and free of impurities, so as not to affect the uniformity of the film.
- Select the appropriate Spreader speed and length according to the material characteristics to avoid excessive adjustment resulting in poor film.
- Clean the clamshell drawdown blade and bar in time after use to prevent the residue from curing.
- Check the accuracy of the differential regulator before operation to ensure accurate film thickness control.
- Only suitable for laboratory environment, non-professionals need to operate under the guidance.
