Product Overview

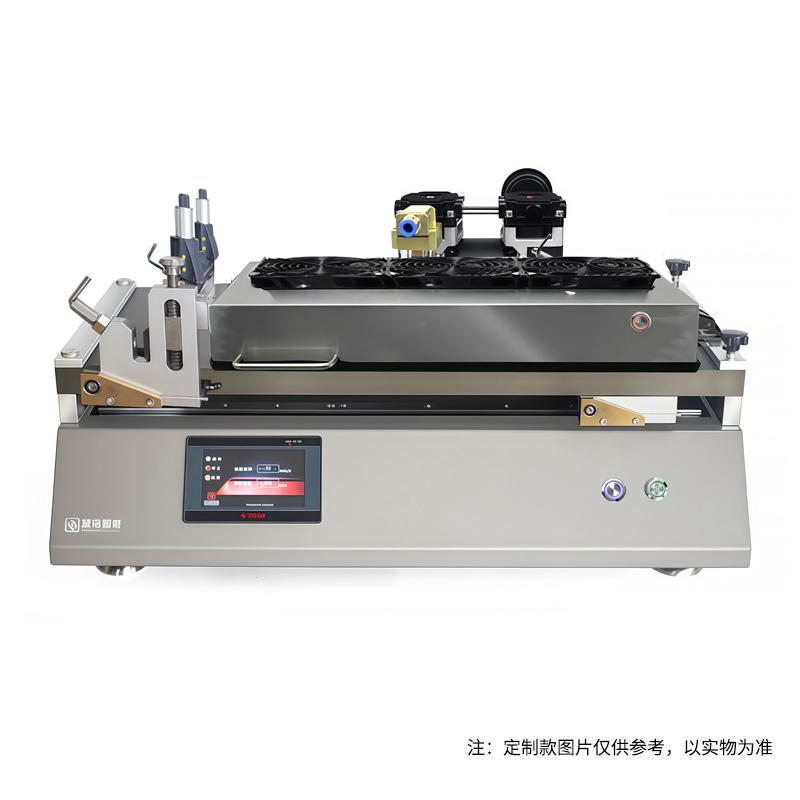

TM3000UV/03 Automatic Film Applicator is a multi-functional automation equipment of HuiNuo brand that integrates High Accuracy Spreader and UV UV curing. It is specially designed for laboratory Moulding proofing and small batch precision production. The equipment adopts bar and drawdown blade dual Spreader mode, and with a precise UV curing system, it can realize the integrated operation from Spreader to curing, effectively eliminate human errors, improve film uniformity, conformity and production efficiency, and is suitable for film needs of various substrates.
Product Features
1. Dual Spreader + High Accuracy: bar + drawdown blade dual mode, imported bar accuracy up to +/- 0.001mm, die steel drawdown blade accuracy up to +/- 0.003mm, suitable for multi-Film thickness requirements.
2. Integrated and efficient: Spreader and UV curing integration, LED UV light source to achieve fast and uniform curing, no additional equipment, shorten the process.
3. Flexible and customizable: Multi-Parameters such as speed, area, power supply, language, etc. can be customized, and Vacuum chuck is optional to adapt to individual needs.
4. Convenient and easy to operate: Color Touchscreen, Chinese interface, fixture fixation and easy to clean drawdown blade, reduce the operating threshold and improve work efficiency.
5. Safe and stable: It is designed with an aviation plug and a separate switch, making it compact in size, moderate in energy consumption, and suitable for long-term continuous operation.
Working Principle
The device uniformly coats the material on the substrate through the bar or drawdown blade dual Spreader mode, and then the built-in LED ultraviolet light source performs rapid and uniform curing of the coating, realizing the integrated operation from Spreader to curing. This design eliminates human operation errors and ensures the uniformity and conformity of the film.
application field
New material enterprises, lithium battery industry, paint inks manufacturers, electronic material manufacturers and other scenarios, suitable for Moulding proofing, performance testing and small batch production of coatings, inks, Adhesive, Resin, lithium battery Electrode, Optical inspection film and other materials
Meet the standard
no mention
Operation steps
no mention
