Core parameters: Spreader Film thickness 0.01-2 mm, slitting accuracy +/- 1mm. Features: Integrated tracking servo horizontal slitting, support for continuous/intermittent Spreader post-fixed-length cutting, easy to clean quick-release glue slot, all-electric control No air source required.
Category : R2R Coater
Brand : HuiNuo
SKU : NB051015
Service :The delivery and service By NBCLab.Com

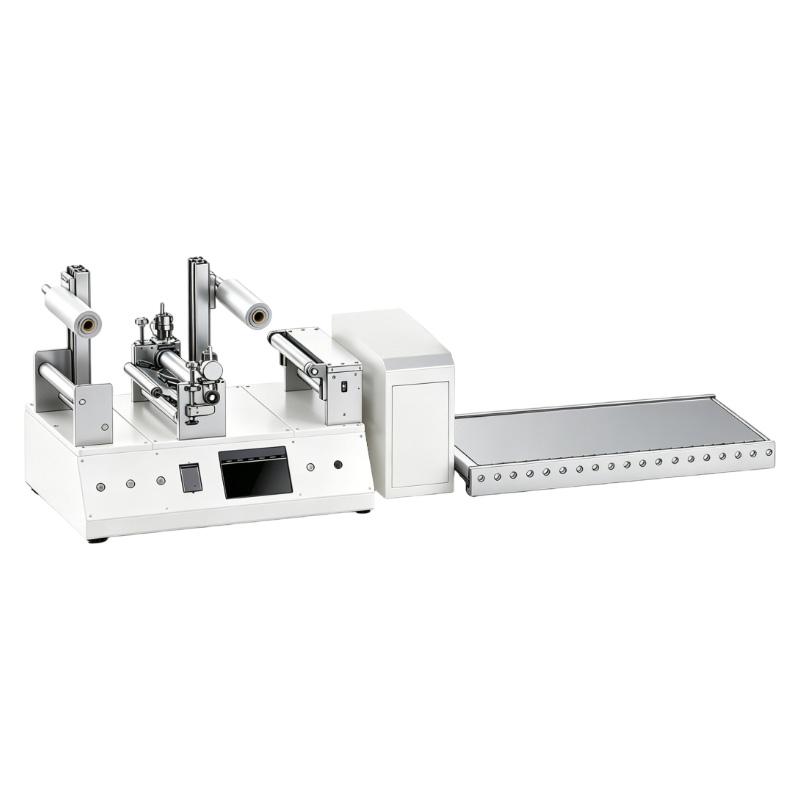

JTM-300/CSH is a desktop type, High Accuracy roll-to-roll Spreader experimental equipment. On the basis of retaining the standard High Accuracy scratch coating process, this model integrates the function of transverse slitting (fixed length cutting), which is mainly composed of unwinding unit, scratch coating unit (with heating) and transverse slitting unit. It is suitable for continuous Spreader experiments and proofing of hot-melt adhesives, Pressure sensitive adhesives, hydrocolloid dressings, gels and various stocks. It is especially suitable for production or R & D scenarios where the Spreader roll material needs to be directly cut into sheets (such as dressing patches, Electrode sheets).
1. Integrated horizontal slitting function, which can cut the coil material after Spreader to a fixed length and directly obtain the sheet. 2. Support continuous Spreader + fixed-length cutting mode and intermittent Spreader mode to adapt to the cutting requirements of the blank space. 3. Adopt electric push rod or High Accuracy trimmer to adjust the gap, and the system maintains the pressure to prevent the gap from drifting. 4. Equipped with all-electric control and electronically controlled precision tension system, suitable for different substrates such as paper, PET film, aluminum foil, and non-woven fabrics. 5. Adopting quick-release rubber groove design, the upper rubber wheel and the rubber groove can be quickly disassembled and separated, which is convenient for removing residual glue at high temperature.
The device releases the substrate through the unwinding unit, and enters the scraping unit after tension control. Here, the thermostatic chute and drawdown blade are used to ensure that the stock such as hot-melt adhesive maintains a constant viscosity, and the Spreader Film thickness is precisely controlled by the gap adjustment mechanism. The material after the Spreader enters the transverse slitting unit. The cutter adopts the chasing servo or flying shear algorithm to achieve High Accuracy transverse cutting at low speed or stop state, and finally obtains a single sheet, which is collected manually.
Adhesive products, new energy, electronic products
1. Install the substrate on the unwinding unit and pass it through each unit of the equipment correctly. 2. Set parameters such as Spreader Film thickness, heating temperature and slitting length according to experimental requirements. 3. Start the device and enter the continuous Spreader + fixed-length cutting mode or the intermittent Spreader mode to work. 4. After the equipment completes the horizontal slitting, manually collect the cut sheet.
- Due to the addition of a horizontal slitting mechanism, the total length of the equipment has increased compared to the standard JTM-300. Please confirm the laboratory space. - Spreader Film thickness and cutting accuracy are affected by material characteristics (such as tensile deformation, thermal cissing rate), it is recommended to provide materials for proofing test before purchase. If the cutter is used to cut metal foil (e.g. copper foil, aluminum foil), a special carbide blade is required.
