Spreader Film thickness 0.01-2 mm adjustable, film accuracy up to +/- 0.003mm, using dial meter fine-tuning clearance and electric push rod down pressure lock, double heating Temperature range RT +~ 200 ℃, all-electric gas source design, Modular structure is easy to disassemble and clean, to meet the needs of High Accuracy experiments.
Category : R2R Coater
Brand : HuiNuo
SKU : NB051016
Service :The delivery and service By NBCLab.Com

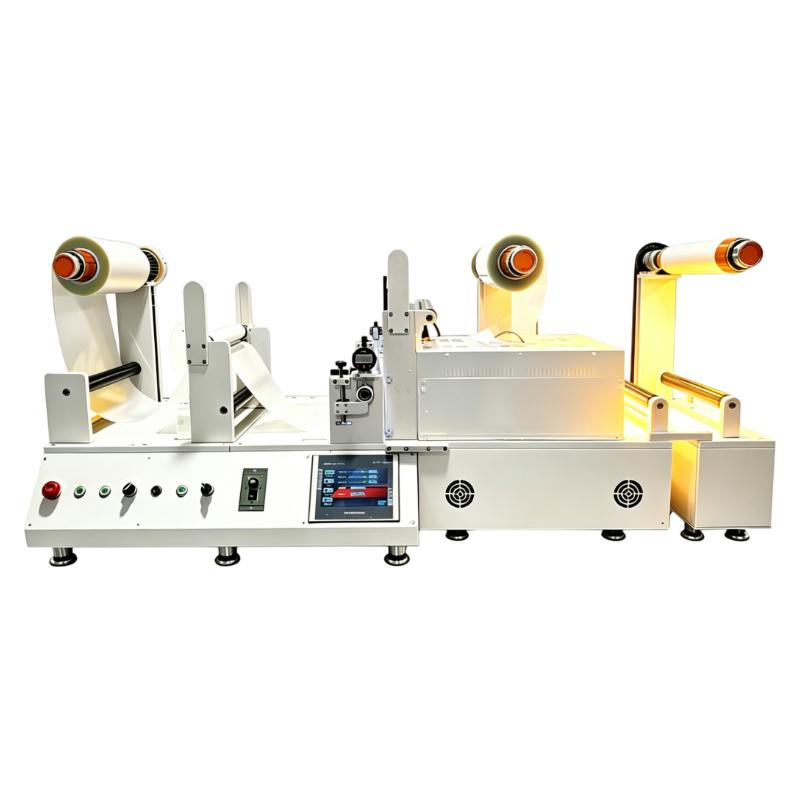

JTM-300/0.5 small continuous coater (with heat curing) is a High Accuracy modular, fully electric controlled laboratory mini hot-adhesive melt coater without external air source. It can directly Spreader the hot melt Pressure sensitive adhesive to the heat resistant substrate, or Spreader can transfer the film to different surfaces after release paper, and optionally a curing module for single top coating film, suitable for continuous Spreader proofing or small production.
1. The whole machine is a High Accuracy modular Spreader station structure, using Modular assembly, which can be separated from the rewinding module, and modules can be added as needed. 2. Fully electric control, no external air source required. 3. Use the dial meter as the indexing head to fine-tune the gap between the upper and lower rubber wheels Spreader to control the Film thickness. The minimum film thickness is 0.01mm. The electric push rod provides the downward pressure to prevent the gap from changing. 4. The maximum Spreader width is 300mm (effective 280mm), and the PEEK baffle unlimited length Spreader can be adjusted and automatically rewound. 5. Positive and reverse stepless variable speed, Spreader speed 2-4.5 m/min adjustable, electronic control precision tension control. 6. Quick-release rubber groove, the upper rubber wheel and the rubber groove can be quickly disassembled and separated from the body to remove the residual glue.
The equipment uses a High Accuracy modular Spreader station to realize the Spreader process through electric control. The gap between the upper rubber wheel and the rubber groove is precisely fine-tuned by a dial meter to control the Spreader Film thickness, and the electric push rod provides downforce to maintain Spreader stability. The substrate enters the Spreader module through the discharge reel, and the rubber material is evenly Spreader through the upper rubber wheel, and then automatically rewound through the rewinding module. The tension is adjusted by the electronic control system to adapt to different materials.
Hot-melt adhesive, gel, hydrocolloid dressing, water-based glue, solvent glue
1. Adjust the Spreader gap according to the material and use the dial meter to fine tune to the desired Film thickness. 2. Adjust the PEEK baffle in the glue slot to set the width of the Spreader. 3. Install the base material to the discharge reel, and adjust the discharge tension through the control panel knob. 4. Set the Spreader speed (adjustable 2-4.5 m/min). 5. Start the device for Spreader, and the forward and reverse are optional. 6. After the Spreader is completed, disassemble the quick-release glue tank to remove the residual glue.
- Make sure the Spreader gap setting is accurate before use to prevent uneven film. - Spreader material needs to be heat resistant to avoid overheating damage. - Gradually increase when adjusting the tension to prevent the substrate from breaking. - Remove the glue tank to clean the residual glue in time after each use. The equipment is fully electrically controlled to avoid overload operation. During operation, pay attention to preventing pinch injuries and maintain a safe distance. - The curing module needs to be installed on demand, and compatibility should be confirmed before use. - Suitable for laboratory environments, avoid use in humid or dusty environments.
