Core parameters include Spreader accuracy +/- 0.003mm and minimum film thickness 0.01mm, featuring Modular assembly, all-electric control without gas source, and heating and UV instant curing functions.
Category : R2R Coater
Brand : HuiNuo
SKU : NB051017
Service :The delivery and service By NBCLab.Com

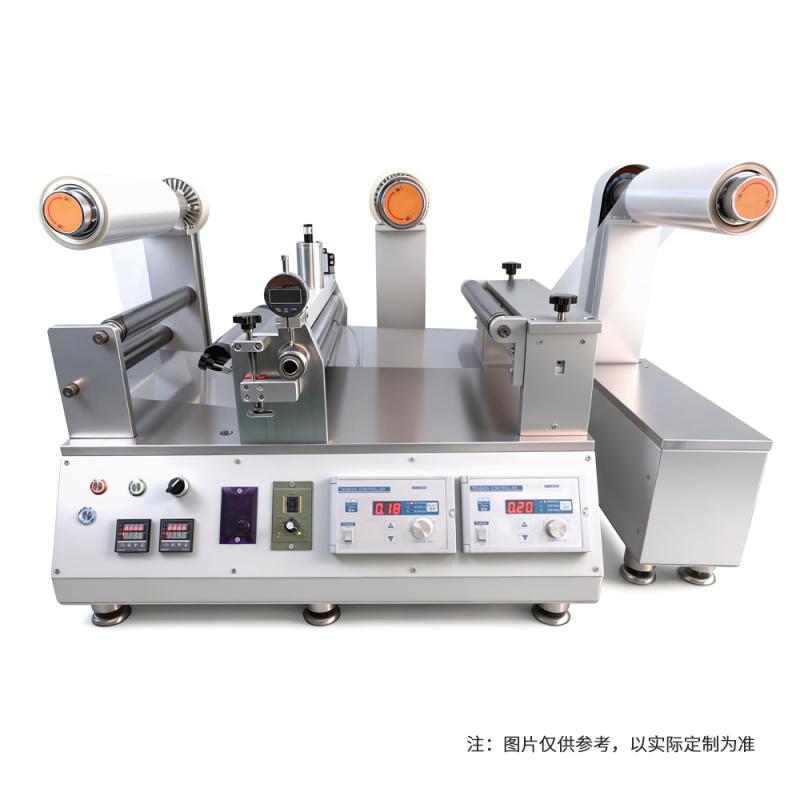

HuiNuo JTM - 300/0.5 UV roll-to-roll experimental coater (with heated UV UV curing) is a High Accuracy modular Spreader station mechanism with Modular assembly and all-electric control, no external air source is required. It is suitable for continuous Spreader proofing or small production. It can directly Spreader the hot melt Pressure sensitive adhesive to the heat-resistant substrate or through the release paper transfer coating and bonding. It can also add a curing module for single top coating film. It has precision electronically controlled tension control and is suitable for paper, plastic model metal film and other materials.
1. The whole machine is a High Accuracy modular Spreader station structure, using Modular assembly, which can be separated from the rewinding module, and modules can be added as needed. 2. Fully electric control, no external air source required. 3. Use the dial table as the indexing head to precisely fine-tune the Spreader gap of the upper and lower rubber wheels to control the Spreader Film thickness. The minimum glued Film thickness is 0.01mm. 4. The maximum width of the Spreader is 300mm (the effective Spreader width is 280mm), and the unlimited length Spreader can be glued and automatically rewound. 5. Positive and reverse stepless speed change, Spreader speed is adjustable 2-4.5 m/min, and the precision electronically controlled discharge reel precisely adjusts the discharge tension through the control panel knob. 6. Quick-release rubber groove, the upper rubber wheel and the rubber groove can be quickly disassembled and separated from the body to remove the residual glue.
The device uses a dial meter to precisely fine-tune the gap between the upper and lower rubber wheels to control the Spreader Film thickness through the Modular Spreader station structure. After the Film thickness is set, the electric push rod provides the downforce to prevent the gap from changing. During the Spreader process, the forward and reverse stepless variable speed motor drives the Spreader speed, and the precision electronically controlled discharge reel adjusts and maintains the discharge tension through the control panel knob. After the Spreader, it can be cured by heating the UV curing module or rotated film bonding through the release paper.
Hot-melt adhesive, gel, hydrocolloid dressing, water-based glue, solvent glue
1. Adjust the width of the Spreader according to the material requirements, and set it through the PEEK baffle in the glue slot. 2. Use the dial meter to precisely fine-tune the gap between the upper and lower rubber wheels, and set the Spreader Film thickness (minimum 0.01mm). 3. Turn on the all-electric control, adjust the discharge tension through the control panel knob, and continue to maintain it. 4. Set the Spreader speed (2-4.5 m/min adjustable), start the forward and reverse stepless transmission to Spreader. 5. According to the requirements, use the heating UV UV curing module for curing, or transfer the film through the release paper. 6. After the Spreader is completed, it will automatically rewind, and the removable quick-release glue tank will remove the residual glue.
The equipment is fully electric and does not require an external air source to ensure a stable power connection. - After the Spreader Film thickness is set, the downforce is provided by the electric push rod, and the push rod function needs to be checked regularly to ensure that the gap remains unchanged. - Be careful to disassemble the quick-release rubber slot when cleaning to avoid damaging the upper rubber wheel or rubber slot. - Spreader speed adjustment should be within the allowable range of the equipment (2-4.5 m/min) to avoid overspeed affecting the Spreader mass. - When using a heated UV UV curing module, pay attention to safety protection and avoid direct UV rays. The discharge tension adjustment should be carried out according to the material characteristics to ensure that the tension remains stable.
