Standard 0.3mm blue brand airbrush can be selected 0.5mm, 0.8mm nozzle to adapt to different viscosity materials, using external adjustment type paint output adjustment and gravity type 100ml pot feeding, air pressure stable 0.1-0. 29MPA, equipped with closed-loop stepper motor to achieve XY alternating reciprocating lame plating and head height electrically adjustable, PLC plus 5-inch Touchscreen programmable cycle lame plating.
Category : Lab Spray Coater
Brand : HuiNuo
SKU : NB051018
Service :The delivery and service By NBCLab.Com

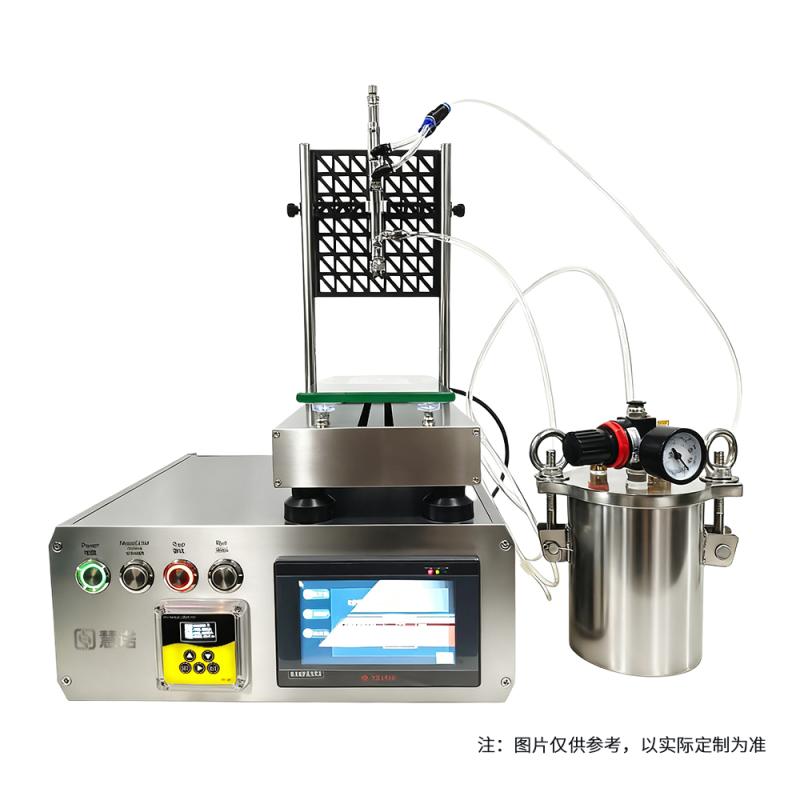

HuiNuo PTM1000/01 automatic lame plating machine is suitable for 300 × 500mm medium size lame plating operation, standard 0.3mm blue brand airbrush, optional 0.5mm, 0.8mm nozzle, using external adjustment type paint output adjustment and gravity type external 100ml material pot feeding, lame plating air pressure is stable at 0.1 - 0.29 MPA. The equipment is equipped with aluminum alloy countertop, supports 1 - 300mm/s adjustable traverse speed and 0 - 60 minutes can be set pause time, relying on closed-loop stepper motor to realize alternating reciprocating movement of spray gun XY, and the height of the nozzle is electrically adjustable. With PLC and 5-inch Touchscreen control system, programmable setting cycle lame plating, second-level control of lame plating speed and drying pause time, suitable for sheet substrate lame plating. Users can choose room temperature to 80 ℃ Platen Heating function.
1. Moderate lame plating area: the effective lame plating area is 300 × 500mm, suitable for lame plating operations of medium-sized sheets, taking into account the needs of research and development and small batch production. 2, multi-caliber nozzle optional: standard 0.3mm blue brush, optional 0.5mm, 0.8mm nozzle, adapt to different viscosity and particle size of the material. 3. Large-capacity feeding: external 100ml gravity type material pot, reducing frequent feeding, suitable for long-term continuous lame plating or multi-piece sample operation. 4. External adjustment paint output: The paint output can be adjusted in real time during the lame plating process, which is convenient for process optimization. 5, XY alternating reciprocating motion: closed-loop stepper motor drive, spray gun alternately moves in the XY direction, helping to achieve more uniform coating coverage. 6, electric adjustable lame plating height: nozzle height can be electrically adjusted, easy to set flexibly according to the substrate Film thickness and atomization effect. 7. Programmable cyclic lame plating: Support setting lame plating times, traverse speed, pause time (0 - 60 minutes, second-level accuracy), suitable for multi-layer or thick film coating process development. Optional Platen Heating: adjustable from room temperature to 80 ° C, which helps the coating to dry quickly and reduce defects during levelling. 9, PLC + 5 inch Touchscreen: intuitive operation, support parameter preset and process monitoring, help to improve the experimental repeability. 10. Aluminum alloy countertop: corrosion-resistant, easy to clean, suitable for fixed placement of a variety of sheet substrates.
The device is equipped with a closed-loop stepper motor, which drives the spray gun to alternately reciprocate in the XY direction to achieve uniform lame plating on the surface of the sheet substrate. The air pressure of lame plating is stable at 0.1-0.29 MPA, and the paint output can be adjusted in real time during the lame plating process by external adjustment. The height of the nozzle is electrically adjustable to adapt to different substrate Film thickness and atomization effects. In terms of control, the PLC and 5-inch Touchscreen work together to support user programming to set the cycle lame plating, traverse speed (1 - 300mm/s) and pause time (0 - 60 minutes, second-level accuracy), to achieve multi-layer or thick film coating process automation control.
Polymer emulsion film formation research (such as acrylic acid, polyurethane, fluorocarbon emulsion), low viscosity functional coatings (hydrophobic coatings, Optical inspection coatings, barrier coatings, antibacterial coatings), conductive coatings (PEDOT: PSS, recommended with more than 0.5mm nozzle), dyestuff, fluorescent indicator, color development solution Spreader, biocompatible coatings (protein, polysaccharide and other biomacromolecular solutions), low temperature heat curing coatings (Resin system that can be cured within 80 ° C), multi-layer coating process development (with halfway drying)
1. According to the substrate Film thickness and atomization effect, set the nozzle height through the electric adjustment device. 2, according to the material viscosity and particle size, choose the appropriate caliber of the brush (standard 0.3mm, optional 0.5mm or 0.8mm). 3, to be lame plating sheet substrate fixed on the aluminum alloy table. 4. Load the paint into a 100ml gravity pot and connect the feeding system. 5. Set the lame plating pressure in the range of 0.1 to 0.29 MPA. 6. Enter the PLC control system through the 5-inch Touchscreen, and program to set the traverse speed (1 - 300mm/s), pause time (0 - 60 minutes, second-level accuracy) and lame plating times. 7. Start the lame plating program, and the closed-loop stepper motor drives the spray gun to reciprocate XY alternately to achieve uniform coating coverage. 8. If you need to accelerate drying, you can turn on the optional Platen Heating function to adjust the temperature to the range of room temperature to 80 ° C. 9. After the lame plating is completed, clean the aluminum alloy countertop and pot. 10, if a multi-layer coating, after the completion of a layer of lame plating and drying pause is set, the repeability of steps 4-8.
- This equipment is only suitable for sheet substrate lame plating, not for non-sheet shapes. - The lame plating pressure should be maintained within the range of 0.1 to 0.29 MPA, which may cause uneven lame plating or equipment damage. - If lame plating conductive coatings such as PEDOT: PSS, it is recommended to use 0.5mm or 0.8mm nozzles to avoid clogging. - The Platen Heating function is optional, and the temperature should be set within the range of room temperature to 80 ° C when enabled, and should not exceed 80 ° C. After use, the aluminum alloy countertops, pots and airbrushes should be cleaned in time to ensure that the paint does not remain dry and solidified. Before operation, ensure that all connections are firmly secured to avoid loosening during operation. - Carefully check the parameters when programming settings, especially the pause time and traverse speed, to prevent process deviation. The electronic control part should avoid liquid splashing to prevent short circuit or damage. When the equipment is not used for a long time, it should be powered off and stored in a drying environment.
