Core parameters Spreader Film thickness 0.01-2 mm, accuracy +/- 0.003mm; features High Accuracy modular Spreader station and all-electric control, no external air source, can quickly remove the glue tank.
Category : R2R Coater
Brand : HuiNuo
SKU : NB051019
Service :The delivery and service By NBCLab.Com

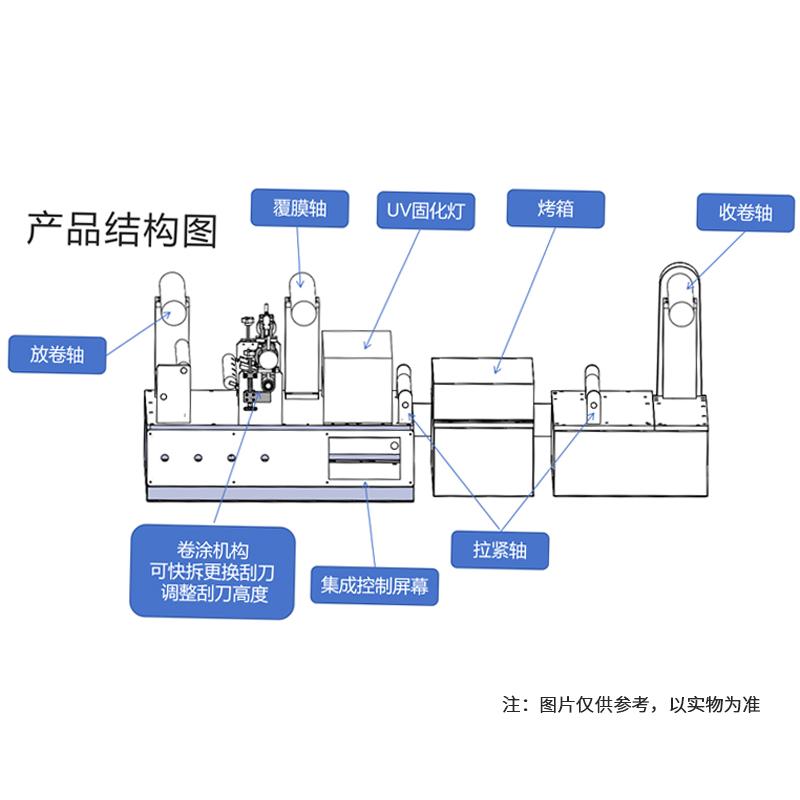

HuiNuo JTM - 300/0.6 UV small continuous coater (with heating + UV UV curing) is a high Accuracy modular Spreader station mechanism, Modular assembly laboratory mini coater, can be separated from the winding module, all-electric control without external air source. Suitable for hot melt Pressure sensitive adhesive Spreader directly on heat resistant substrate or release paper, can also add curing module for single top coating film, and has electronically controlled precision tension control, can adapt to paper, plastic model metal film and other different materials.
1. The whole machine is a High Accuracy Modular Spreader Station structure, using Modular assembly. 2. Fully electric control, no external air source required. 3. Use the dial table as the indexing head to precisely fine-tune the Spreader gap of the upper and lower rubber wheels to control the Spreader Film thickness. 4. The minimum gluing Film thickness is 0.01mm. Film thickness is set by the electric push rod to provide downward pressure to prevent the gap change. 5. The maximum Spreader width is 300mm (the effective Spreader width is 280mm). The width is adjusted by two PEEK baffles in the glue slot, which can be glued with unlimited length Spreader and automatically rewound. 6. Positive and reverse stepless speed change, Spreader speed 2-4.5 m/min adjustable, precision electronically controlled discharge reel can adjust the tension and continue to maintain. 7. Quick-release rubber groove, the upper rubber wheel and the rubber groove can be quickly disassembled and separated from the body to remove the residual glue.
The machine realizes the Spreader function through the structure of the High Accuracy modular Spreader station. The dial meter is used to precisely fine-tune the gap between the upper and lower rubber wheels to control the Spreader Film thickness. The electric push rod provides downforce to prevent the gap from changing. During the Spreader process, the precision electronically controlled tension system controls the discharge tension by adjusting the knob, and the material is Spreaded through the Spreader wheel. It can be equipped with heating and UV UV curing modules for processing, and the automatic winding completes the continuous operation.
Hot-melt adhesive, gel, hydrocolloid dressing, water-based glue, solvent glue
1. Put the rubber compound into the glue tank. 2. Use the dial meter to fine-tune the upper and lower rubber wheel clearance to set the required Spreader Film thickness. 3. Adjust the PEEK baffle to determine the Spreader width. 4. Turn on the electric control and set the Spreader speed (adjustable 2-4.5 m/min). 5. Adjust the discharge reel knob to set the precision tension. 6. Start the device to perform Spreader and automatically rewind. 7. Remove the glue tank and upper rubber wheel to remove the residual glue after use.
Verify that all modules are securely assembled before operation. - When adjusting the Spreader gap, use the dial meter to precisely fine-tune to avoid deviation affecting the Spreader mass. The adhesive should be suitable for heat-resistant substrates or release paper to avoid damage caused by material mismatch. - During the Spreader process, pay attention to monitor the tension stability to avoid material breakage or wrinkling. - When cleaning the residual glue, it is necessary to disassemble the glue tank and the rubber wheel in the power-off state to prevent accidental injury. When the equipment is running, it is necessary to ensure that no one touches the moving parts to avoid the risk of involvement. - Pay attention to protection when using UV curing modules to avoid direct UV light to the eyes or skin.
