Adopt dial meter fine-tuning and electric push rod downforce control, the minimum gluing Film thickness can reach 0.01mm, film accuracy +/- 0.003mm; positive and reverse continuously variable speed, Spreader speed 4.5m/min adjustable, support unlimited length Spreader and automatic winding.
Category : R2R Coater
Brand : HuiNuo
SKU : NB051020
Service :The delivery and service By NBCLab.Com

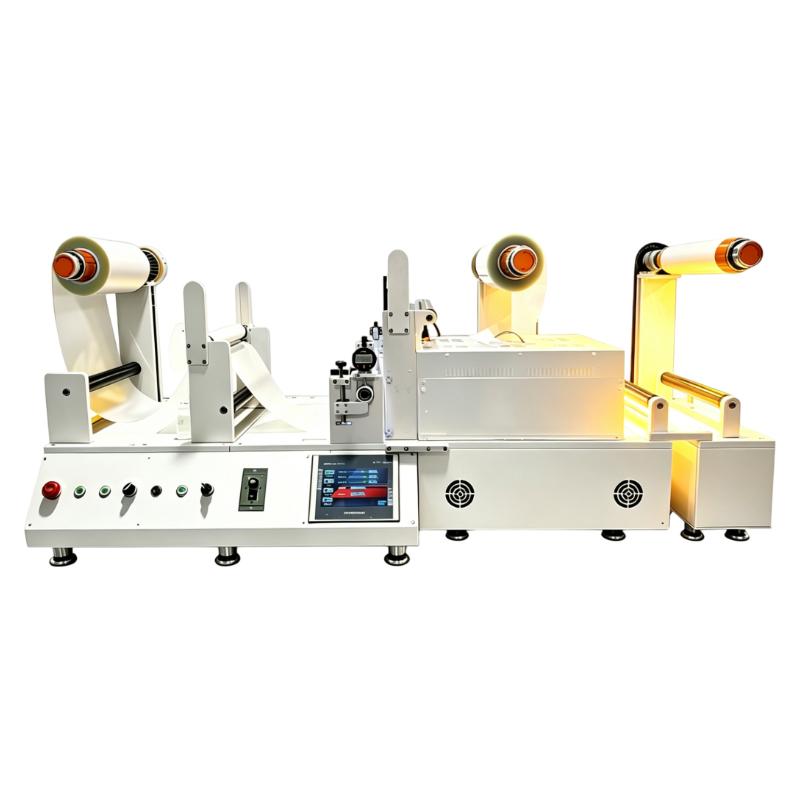

JTM-300/02 small continuous coater (with heat curing) is HuiNuo brand High Accuracy modular continuous Spreader experimental machine, using Modular assembly and all electric control, no external air source. The device can directly Spreader the hot melt Pressure sensitive adhesive on the heat resistant substrate or release paper, suitable for laboratory mini hot-melt adhesive Spreader proofing or small production, and supports single top coating film through the curing module. Its electronically controlled precision tension control can be adapted to a variety of materials such as paper, plastic model metal film.
1. High Accuracy Modular Spreader Station Structure, Modular Assembly, Separable Winding Module, Easy to Add Modules. 2. Fully electric control, no external air source required, easy to operate. 3. The dial meter indexing head precisely fine-tunes the gap of the rubber wheel Spreader, controls the Spreader Film thickness, and the minimum glued Film thickness is 0.01mm. 4. The electric push rod provides downforce to prevent the gap from changing and ensure the stability of the Spreader accuracy. 5. The maximum Spreader width is 300mm (the effective Spreader width is 280mm), and the unlimited length Spreader can be glued and automatically rewound. 6. Positive and reverse stepless speed change, Spreader speed 2-4.5 m/min adjustable, precision electronically controlled discharge reel through the knob to adjust the discharge tension and continue to maintain. 7. Quick-release rubber groove, the upper rubber wheel and the rubber groove can be quickly disassembled and separated, which is convenient for removing residual glue.
The device uses the hot-melt adhesive Spreader on the substrate through the Modular Spreader station, uses the dial meter indexing head to fine-tune the gap between the upper and lower rubber wheels, controls the Spreader Film thickness to a minimum of 0.01mm, and provides the lower pressure of the electric push rod to keep the gap stable. During the Spreader process, the electronically controlled tension system precisely adjusts the tension of the discharge reel through the knob to ensure the smooth operation of the material, and supports the forward and reverse stepless speed change to achieve 2-4.5 m/min adjustable Spreader speed, automatic winding to achieve continuous production.
Hot-melt adhesive, gel, hydrocolloid dressing, water-based glue, solvent glue
1. According to the needs of the Spreader, adjust the PEEK baffle in the rubber slot to the required width. 2. swirl/spin dial meter indexing head, accurately adjust the gap between the upper and lower rubber wheels to set the Spreader Film thickness. 3. Start the all-electric control system and set the discharge tension through the control panel knob. 4. Turn on the Spreader and adjust the speed knob to the appropriate speed (2-4.5 m/min) as needed. 5. Monitor the Spreader process to ensure that the automatic roll-up proceeds smoothly. 6. After completing the Spreader, use the quick-release rubber slot to separate the rubber wheel and the rubber slot to remove the residual glue.
Before operation, ensure that the equipment modules are firmly assembled, especially the rubber wheel clearance setting is accurate. - Spreader process, check the tension system regularly to avoid material deviation. - When using the quick-release glue tank to clean the residual glue, pay attention to prevent scratching parts. - It is strictly forbidden to adjust the Spreader gap or glue slot manually during the operation of the equipment. - During daily maintenance, clean the Spreader station and rewinding module to extend the service life.
