HuiNuo JTM-P200-GH1 Small coil lame plating machine 200mm wide manual control

Name: HuiNuo JTM-P200-GH1 Small coil lame plating machine 200mm wide manual control
Brand: HuiNuo
SKU: NB051029

Please contact customer service

The core uses a 1-meter drying tunnel to achieve medium and low temperature rapid drying, and cooperates with a splash protection cover and a receiving tray to ensure a clean environment; manual control does not require programming, the operation is intuitive and easy to maintain, and it is suitable for basic mass production.

Model

JTM-P200-GH1

Get Quote

Category : R2R Coater

Brand : HuiNuo

SKU : NB051029

Service :The delivery and service By NBCLab.Com

Product Overview

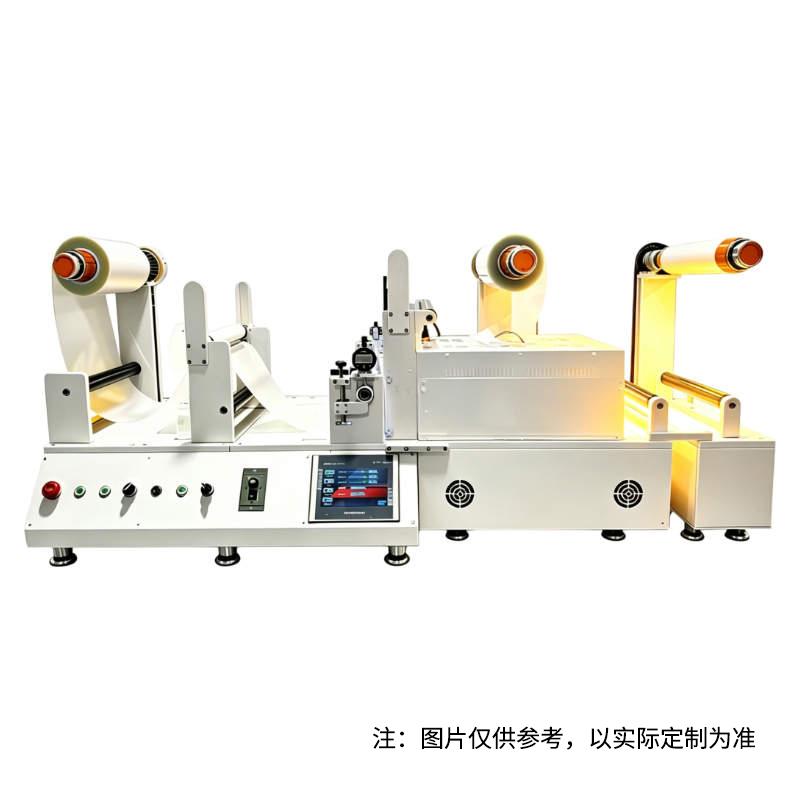

This equipment is designed for coils with an effective width of 200mm. It integrates unwinding, lame plating, drying (1 meter drying tunnel) and winding functions to realize the integrated production of lame plating and drying and winding on the surface of the coils. The equipment is equipped with a splash protection structure to ensure a clean production environment. The overall structure is simple, easy to use, and low cost, which is suitable for basic mass production.

Product Features

1. The structure is simplified, only the core functions are retained, and the processing and use costs are reduced.\ n2. The practical protective structure (transparent protective cover, bottom receiving tray, Nozzle sheath) is installed to prevent the paint from splashing.\ n3. The operation is simple, ordinary workers can get started without professional debugging, and the maintenance and repair are convenient.\ n4. The mature general accessories are adopted, which have stable operation and few failures to meet the basic production capacity needs.

Working Principle

The equipment transports the coil development through the unwinding mechanism, and transports it to the lame plating area through the guide roller. The atomization spray gun and 5L Mixing Tank carry out the lame plating operation of manually adjusting the flow. The coil after lame plating enters the 1-meter closed drying channel, and is heated by hot air circulation (adjustable from room temperature to 200 ° C) to achieve medium and low temperature rapid drying. Finally, the winding mechanism automatically rolls it into a finished product. The whole process is started and stopped by the manual control system, and the operation is intuitive.

Spreader process
Raw material coil → unwinding → lame plating (with protection) → drying in a 1m oven → winding → finished coil
coating method
Lame plating, manual flow adjustment, suitable for 200mm width
Effective Spreader Width
200mm（±2mm）
unwinding method
With automatic tension, anti-stretching, wrinkling
winding method
Manual assistance, neatly wound
winding outer diameter
Maximum winding diameter ≤ 300mm, paper core inner diameter 76mm
Drying temperature range
Room temperature +~ 200 ℃ (adjustable)
Oven length
1m
Power frequency
AC 380V/50Hz, three-phase five-wire, with independent air switch
total power consumption
≤10kW
Suggested space
At least 3m × 1.5m × 2m space, the ground is flat, ventilated, and away from fire sources
Operating Environment Temperature
10~ 35 ℃, less dust, no corrosive gas, rain and sun protection
Scroll size
Maximum coil diameter ≤ 300mm, paper core inner diameter 76mm
Lame plating flow
0.1~ 5Ml/min (precision pump)
Unwinding/rewinding speed
1~ 3M/min, manual synchronization
Coil width deviation
≤ +/- 3mm, no damage, wrinkles
