Product Overview

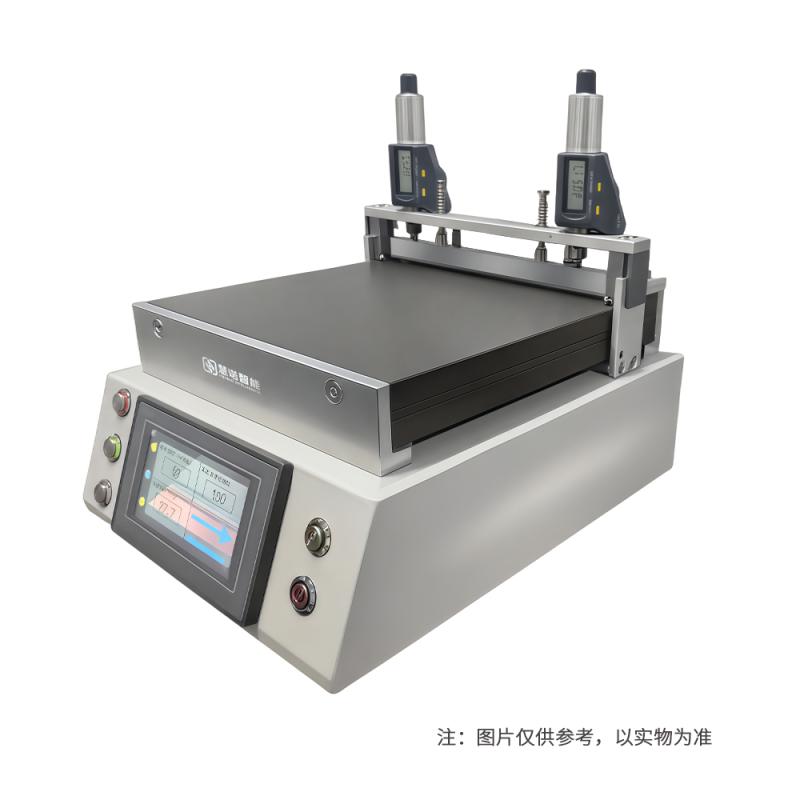

HuiNuo TM1300mini is a small High Accuracy automatic film equipment specially designed for the glove box environment. It replaces the traditional manual scraping method to achieve high efficiency and good repeability accuracy of film coating through automated control. The equipment adopts bar Spreader, which not only has flexible coating methods, but also is more convenient to clean and replace. The core drive adopts a closed-loop stepper motor with a planetary gear reducer and a rack and pinion drive system, which helps to ensure a smooth and accurate Spreader process. Whether it is preparing lithium battery film, Optical inspection coating or functional polymer materials, this equipment can meet the various needs of the laboratory Spreader process.
Product Features
1. Glove box adaptation design: compact fuselage, easy to put into the glove box transition compartment or box body operation.
2. Transmission system: closed-loop stepper motor plus planetary gear reducer, with rack and pinion drive, Spreader speed and distance control is more accurate.
3. Table flatness: hard aluminum alloy table, checked by testing instruments to ensure that the surface of the substrate is flat after adsorption.
4. Operation interface: Color LCD Touchscreen, support Chinese and English switching, Spreader length and speed can be adjusted freely.
5. Substrate fixation: Equipped with Vacuum chuck function, combined with vacuum hole design, the auxiliary substrate remains stable during the Spreader process.
6. Platen Heating: Support heating function (RT to 180 degrees, uniformity plus or minus 1 degree).
Working Principle
The device drives the planetary gear reducer through a closed-loop stepper motor, which drives the rack and pinion transmission system to make the Spreader head move smoothly on the cemented aluminum alloy table. The bar coating method, combined with the Vacuum chuck fixed substrate, and the Platen Heating function are used to realize the automatic operation of film coating, ensuring the high efficiency and good repeability accuracy of the Spreader process.
application field
Energy Materials, Paint inks, Adhesives, Polymer Materials, Substrate Types (Including Glass Sheet, Cardboard, PET Film, Fabric, Metal Foil)
Operation steps
1. Put the equipment in the glove box or through the transition compartment.
2. Turn on the power and turn on the color LCD Touchscreen.
3. Select the Chinese and English interface and set the Spreader length and speed.
4. Place the substrate on the table and turn on the Vacuum chuck function to fix the substrate.
5. For heating, set the Platen Heating temperature (RT to 180 degrees).
6. Install bar and start the Spreader program.
7. After the Spreader is finished, close the Vacuum chuck and remove the substrate.
8. Clean bar and countertops.
9. Turn off the power.
Precautions
Make sure the equipment is properly secured before operating in the glove box.
- When using Vacuum chuck, confirm that the substrate completely covers the vacuum hole.
- When heating the baseplate, avoid contact with high-temperature surfaces to prevent burns.
Regularly check the transmission system components to maintain cleanliness and lubrication.
- When replacing the bar, pay attention to gentle operation to avoid damage.
It is strictly forbidden to clean or maintain the equipment while it is in operation.
Avoid use in humid or corrosive environments.
