Spreader accuracy of +/- 5%, the effective width of 100-600mm adjustable; Stir and solvent recovery system synergize to improve solvent utilization.
Category : R2R Coater
Brand : HuiNuo
SKU : NB051031
Service :The delivery and service By NBCLab.Com

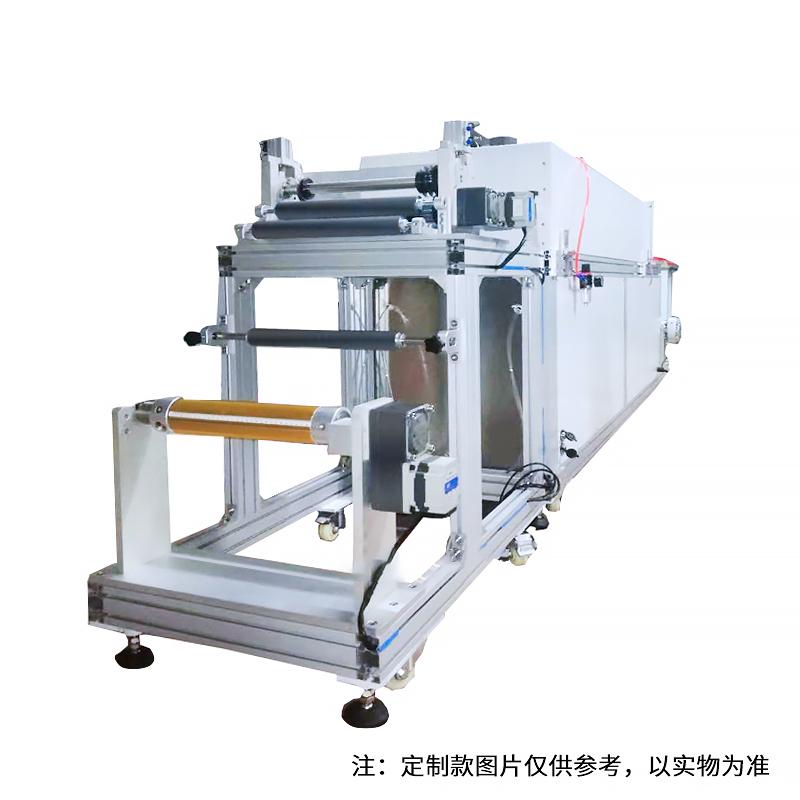

HuiNuo JTM-FW700-GH5 (2)/XB Multifunctional Solvent Coil Automatic Film Applicator is a precision Spreader equipment for solvent-based paints, integrating the whole process automation process from sealing feeding, front and back Spreader, drying and curing to winding. The equipment adopts a fully airtight design and negative pressure control to effectively prevent solvent leakage, and is equipped with a solvent recovery system, taking into account production safety, environmental protection requirements and Spreader mass.
1. Full-process airtight design: from the barrel, Spreader room, drying tunnel to the winding are all closed structure, with negative pressure control, effectively prevent the solvent from dissipating and ensure the safety of the operating environment.\ n2. High-efficiency and energy-saving drying tunnel: equipped with 5 meters long drying tunnel, using hot air domestic circulation design, high thermal efficiency, can be segmented and independent temperature control, to meet the needs of different drying Linear dispersion.\ n3. Environmental solvent recovery: drying tunnel exhaust connected to the condensation recovery device, can be mixed or single solvent recycling, reduce operating costs.\ n4. Precision Spreader and correction: micro-concave or slot-die coating method to ensure Spreader accuracy, multi-unit configuration of ultrasonic or photoelectric correction system to ensure winding uniformity.\ n5. Safety interlock protection: configuration over-temperature alarm, material level alarm, LEL concentration monitoring and interlock exhaust and other multiple safety mechanisms.
When the equipment is working, the paint is first heated in the sealing cylinder and Stir evenly, and automatically transported to the closed negative pressure Spreader chamber through a pneumatic explosion-proof diaphragm pump. The wet-film after the Spreader enters the closed drying tunnel and dries under hot air domestic circulation and micro-negative pressure conditions. At the same time, the solvent vapor in the exhaust air of the drying tunnel is introduced into the condensation recovery system for recovery. For the double top coating layer, the equipment completes the other side treatment through the secondary Spreader and the secondary drying tunnel. Finally, the finished product after online dismantling and trimming is wound in the closed cavity with constant tension.
Suitable for substrates that require Spreader solvent materials, such as films, papers, aluminum foils, etc., especially for the production of high-end coils such as electronic materials, Optical inspection films, adhesive tapes, and battery separators.
Explosion-proof design standards, solvent recovery safety specifications, coater related industry standards
- Be sure to confirm that all seals and negative pressure systems are in good condition before operation to prevent solvent leakage.\ n- Regularly check the LEL monitoring device to ensure that the interlocking function with the exhaust air is normal.\ n- The solvent recovery system needs to set the condensation temperature according to the boiling point of the solvent to avoid non-condensing gas emissions.\ n- The pneumatic diaphragm pump needs to use drying clean compressed air to prevent water vapor from entering the paint.\ n- When double top coating cloth, it is necessary to set the temperature layer of the front and back drying tunnels reasonably to prevent the coating from missolving.\ n- When changing the material type, the barrel, pipeline and Spreader room should be thoroughly cleaned to prevent cross-contamination.
