Product Overview

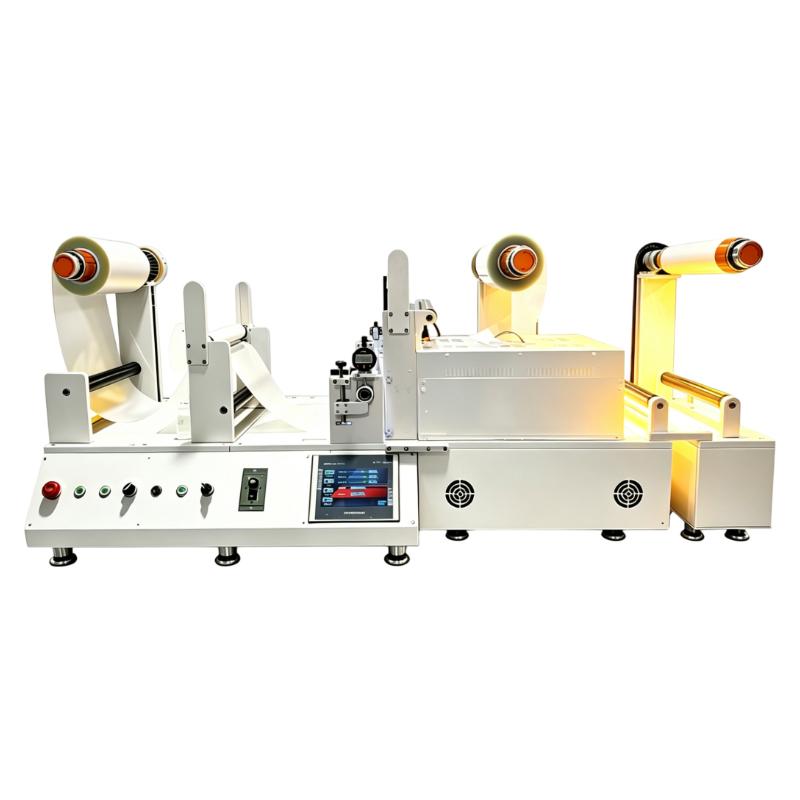

For the effective width of 300mm coil, this equipment designs a set of unwinding → lame plating → drying (1 meter drying tunnel) → winding integrated simple production line, which mainly realizes the basic lame plating and drying and winding on the surface of the coil. The equipment is equipped with anti-splash protection to ensure a clean production environment, the overall structure is simple, easy to use, low cost, and meets the basic mass production use.
Product Features
1. Simplified structure, only retain the core functions of unwinding, lame plating, drying, and winding, reducing processing and use costs.\ n2. Install practical protective structure (transparent protective cover, bottom receiving tray, Nozzle sheath) to block paint splashing and do not pollute equipment and environment.\ n3. No professional debugging is required, ordinary workers can get started, and maintenance and overhaul are convenient.\ n4. Select mature general accessories, the equipment runs continuously and stably, with few failures, and meets the basic production capacity.
Working Principle
This equipment develops the coil through the unwinding mechanism, passes through the lame plating mechanism with anti-splash protection for surface basic lame plating, and then enters the 1-meter long hot air drying tunnel to dry, and finally completes the winding by the winding mechanism to form the finished coil. The whole process is a continuous automatic production line of unwinding → lame plating → drying → winding, which adopts pure manual control and is easy to operate.
application field
It is suitable for lame plating on the surface of all kinds of coils (film, paper, metal foil, etc.) with a width of ≤ 300mm. It can use water-based and oil-based conventional coatings. It is suitable for production scenarios with low requirements for lame plating accuracy and simple and easy to use.
Operation steps
1. Load the raw material coil to the release reel, and adjust the guide roller to ensure that it is centered.\ n2. Turn on the unwinding mechanism and manually transport the coil through the lame plating area.\ n3. Turn on the lame plating system and manually adjust the spray gun flow and Nozzle height to ensure uniform coating.\ n4. Adjust the drying tunnel temperature (adjustable at room temperature +~ 200 ° C) and speed to ensure the drying effect.\ n5. Turn on the winding mechanism, adjust the automatic tension and simple deviation correction, and the pressure roller ensures that the winding is tight.\ n6. Manually control the start and stop of each unit, and adjust the temperature and speed knobs according to the production situation.
