Product Overview

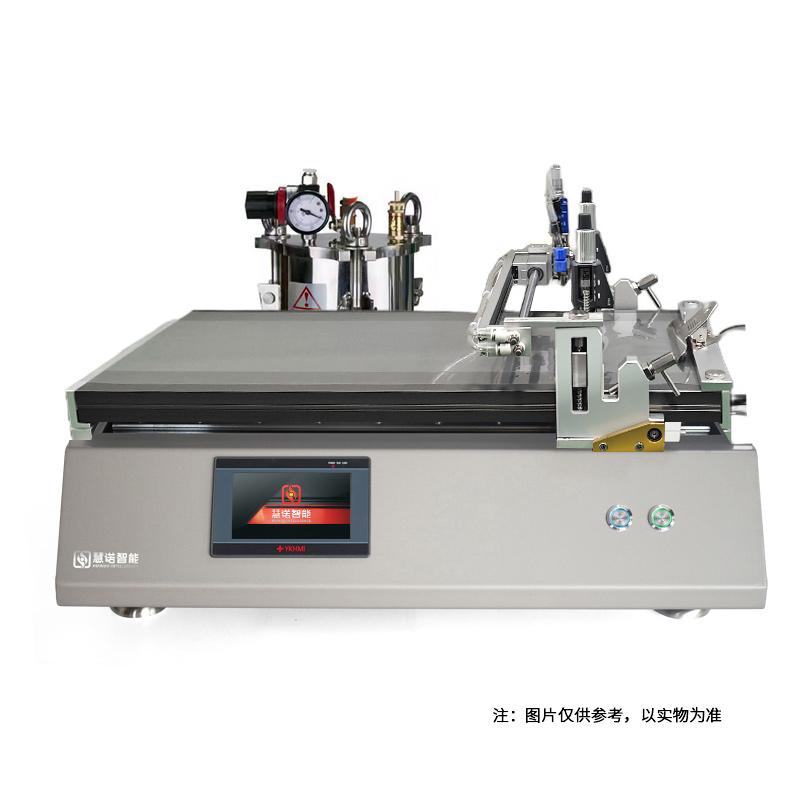

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The TM3200/11proAF Automatic Film Applicator is a large-scale Spreader device that supports dual modes of bar and drawdown blade, integrating Vacuum chuck and automatic feeding system. The Spreader area is 1200 × 1000mm, and the rate can be steplessly adjusted in the range of 1 - 300mm/s. It is suitable for large-scale Moulding proofing and small batch production in the laboratory. The equipment adopts Vacuum chuck and mechanical fixture double Substrate clamping method, suitable for film, cardboard, aluminum foil, copper foil and other soft or smooth substrate Spreader. Equipped with pneumatic automatic feeding system, it can realize reciprocating linear feeding, reduce manual intervention and improve Spreader efficiency.
Product Features
1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, flatness is tested by imported High Accuracy instruments to ensure uniform large size Spreader
2) Big brand differential regulator, high film thickness control accuracy, drawdown blade Film thickness 0.1 - 10mm adjustable
3) Flip Type Blade Coating Head, Easy and Quick Cleaning
4) High Accuracy film applicator, original imported bar, uniform film, high accuracy
5) Touchscreen control panel, easy to operate
6) Spreader length and Spreader speed can be adjusted freely
7) With Vacuum chuck function, suitable for soft substrates such as thin films, Spreader process does not shift
8) With automatic feeding system, pneumatic pressure feeding, reciprocating linear motion, adjustable discharge amount, reducing manual pouring operation
Working Principle
The Working Principle of the Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. Specifically, the device achieves uniform coating of the film by controlling the movement of the bar or drawdown blade and the speed of the Spreader, combined with the Vacuum chuck to fix the substrate.
application field
Coatings, inks, paints, Stock, hot-melt adhesives, Lithium batteries, Pressure sensitive adhesives, Resin, Glue, Polymer materials
