Modular assembly can add UV curing or oven; Spreader gap dial meter fine-tuning, minimum Film thickness 0.01mm, maximum width 400mm, speed 2-4.5 m/min adjustable; 7 inch Touchscreen integrated temperature, tension, film pressure control.
Category : R2R Coater
Brand : HuiNuo
SKU : NB051035
Service :The delivery and service By NBCLab.Com

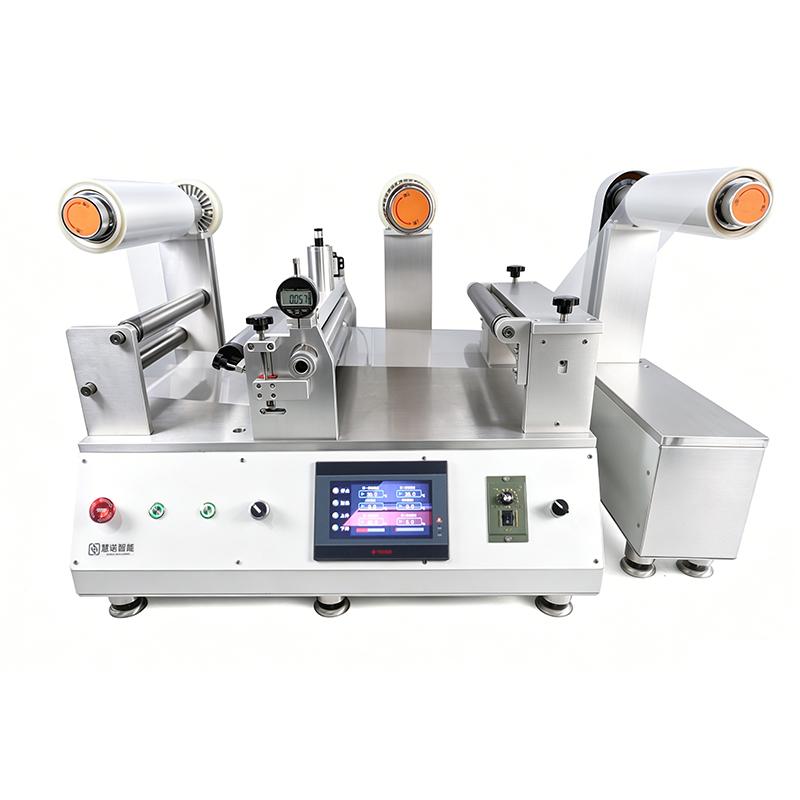

HuiNuo JTM-400 small continuous coater is a high Accuracy modular Spreader station structure, fully electric control laboratory mini hot-melt adhesive coater without gas source. The equipment is designed for continuous Spreader proofing or small production. It can directly Spreader the hot melt Pressure sensitive adhesive on the heat resistant substrate or release paper, and has electronic control precision tension control to adapt to different material needs.
1. The whole machine is a High Accuracy modular Spreader station structure, using Modular assembly.\ n2. Fully electric control, no air source required.\ n3. Use a dial meter as the indexing head to precisely fine-tune the Spreader gap of the upper and lower rubber wheels to control the Spreader Film thickness.\ n4. The minimum glued Film thickness is 0.01mm. After the Film thickness is set, the electric push rod provides the lower pressure to prevent the gap from changing.\ n5. The maximum Spreader width is 400mm. The width is adjusted by two PEEK baffles in the plastic slot. The unlimited length Spreader can be glued and automatically rewound.\ n6. Forward and reverse stepless speed change, Spreader speed 2-4.5 m/min adjustable, precision electronically controlled discharge reel can accurately change the discharge tension.\ n7. Quick-release rubber groove, the upper rubber wheel and the rubber groove can be quickly disassembled and separated to remove residual glue.\ n8. Temperature control, tension adjustment, and film pressing action are all integrated into the 7-inch Touchscreen.\ n9. The rewinding and unwinding module has a positioning ruler.\ n10. Equipped with substrate film stripping device.\ n11. UV curing, heating and other devices can be freely added.\ n12. Ion air knife can be installed to remove static electricity.
The device realizes the Spreader process through the structure of a modular Spreader station with High Accuracy. It uses a dial meter to fine-tune the gap between the upper and lower rubber wheels to precisely control the Spreader Film thickness, and applies downward pressure through an electric push rod to keep the gap stable. The all-electric drive Spreader wheel rotates forward and reverse stepless speed change, and cooperates with a precision electronically controlled discharge reel to adjust the tension to ensure stable delivery of the substrate and uniform Spreader. Automatic winding realizes continuous production.
Hot-melt adhesive, Pressure sensitive adhesive, Lithium battery cathode sheet, Solid electrolysis, Hydrogen fuel cell film Electrode, Perovskite solar cell, Flexible circuit, RFID antenna, OLED light emitting layer, Organic solar cell, Graphene film, Pottery and porcelain coated diaphragm, Electromagnetic Shielding composite film, Transdermal delivery patch, Hydrocolloid dressing, Medical tape, electric conductive ink, Intelligent Encasement
1. According to the needs of the Spreader, install the PEEK baffle to adjust the width of the Spreader.\ n2. Fine-tune the gap between the upper and lower rubber wheels through the dial meter and set the Spreader Film thickness.\ n3. Load the substrate into the discharge reel and set the discharge tension.\ n4. Add the rubber compound to the glue slot and heat it to the desired temperature.\ n5. Set the Spreader speed and temperature parameters through the 7-inch Touchscreen.\ n6. Start the device for Spreader and monitor the automatic winding process.\ n7. After the Spreader is completed, remove the glue slot and upper rubber wheel for residual glue cleaning.
- The Spreader substrate needs to withstand the operating temperature and avoid thermal deformation.\ n- Careful operation is required when adjusting the gap of the Spreader to ensure accuracy.\ n- Before cleaning the residual glue, make sure that the equipment has been completely chilled down.\ n- Appropriately adjust the tension according to the material characteristics to prevent pulling deformation or sliding.\ n- If you need to install UV curing or heating module, you need to ensure the safety of electrical connection.\ n- Pay attention to safety protection when using ion air knife to remove static electricity.\ n- Avoid idling for a long time in a free state to prevent damage to the rubber wheel.\ n- Regularly check the electric push rod and transmission parts to keep lubrication.
