Overview

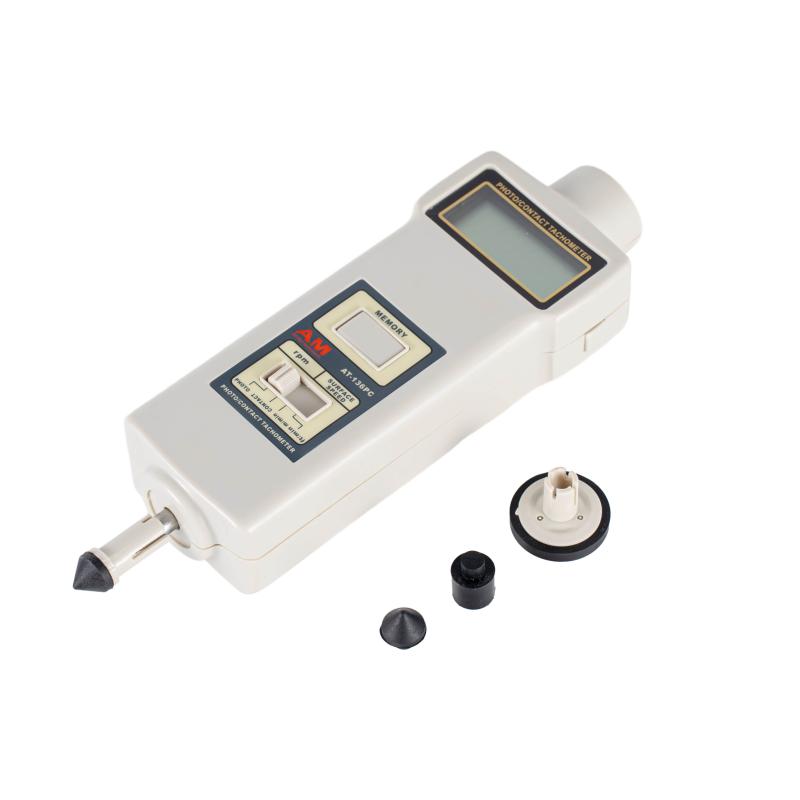

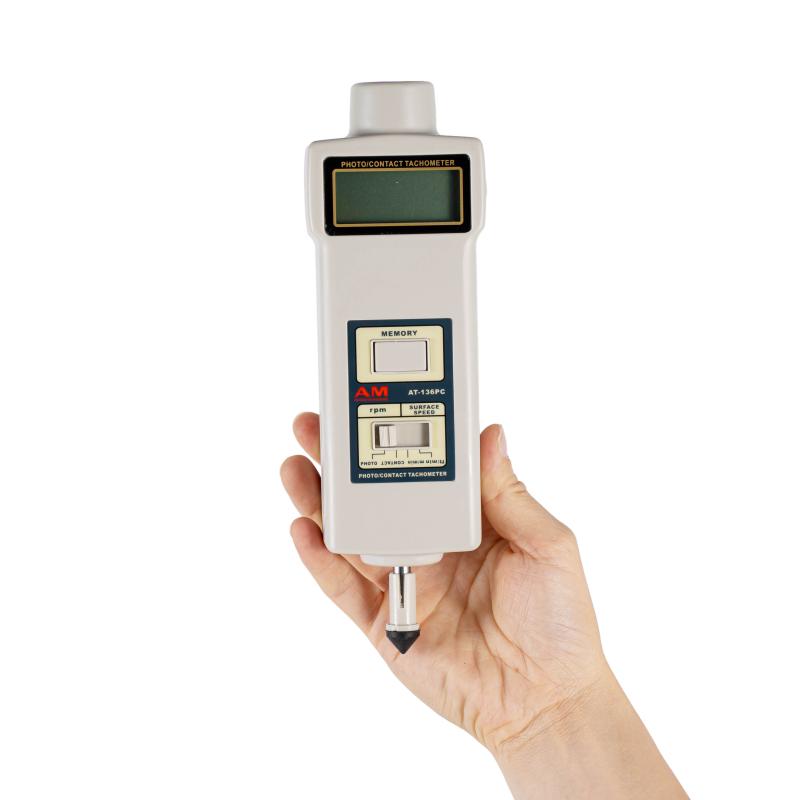

AMITTARI AT-136PC Multifunctional Rotation speed meter is a professional measuring instrument for measuring motor Rotation speed, linear speed or Frequency. It is widely used in motor, fan, paper, plastic, chemical fiber, washing machine, automobile, aircraft, steamship and other manufacturing fields.
Features
1. Measurement range, high resolution; digital display, ignore the difference
2. Automatic memory MAX Maximum, MIN Minimum and last Measured value during measurement
3. Multifunctional, can be used as photoelectric Rotation speed meter for non-contact Rotation speed measurement, and can be used as contact Rotation speed meter for Rotation speed and linear speed measurement
4. Strong structure, exquisite, easy to carry; the whole machine adopts durable professional electronic components; the shell adopts light weight and hard ABS plastic, beautiful and easy to use
5. With automatic shutdown and manual shutdown functions; under-voltage alarm indication function
Principle

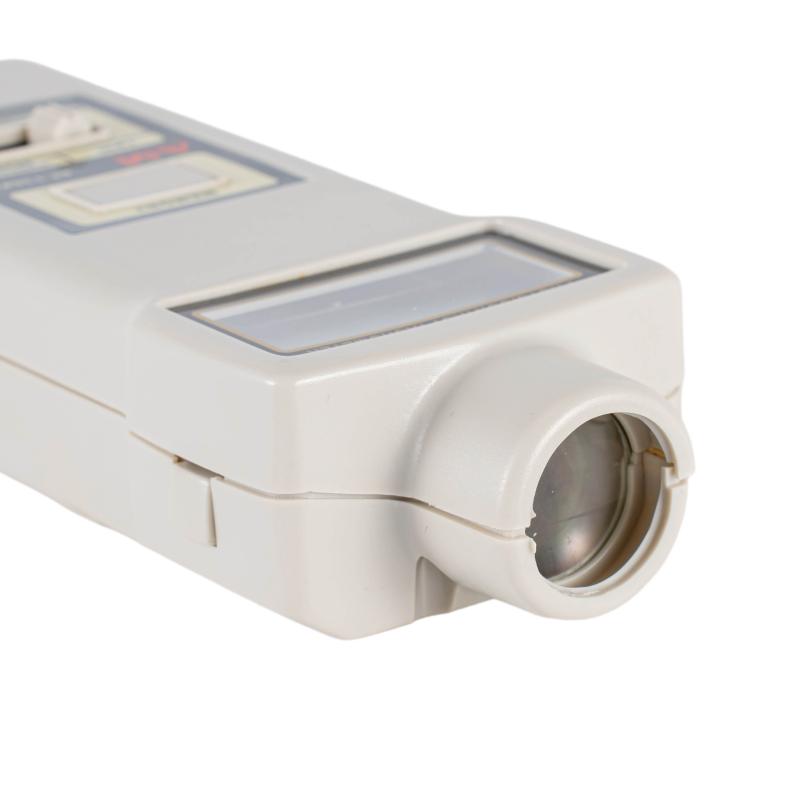

The Rotation speed meter uses two measurement modes: photoelectric and contact. The photoelectric measurement detects the Rotation speed in a non-contact distance of 50-600mm through the laser Sensor, and the contact measurement performs the Rotation speed and linear speed measurement by directly contacting the measured object. The instrument uses a quartz crystal time base to automatically switch the range, and the Sampling time is 1.0 seconds (60 rpm or less).
Applications
Motor, fan, paper, plastic, chemical fiber, washing machine, automobile, aircraft, steamship and other manufacturing industries
Steps
1. Select photoelectric non-contact measurement or contact Measurement mode according to measurement needs
2. When photoelectric measurement, align the instrument with the measured object and maintain a measurement distance of 50-600mm

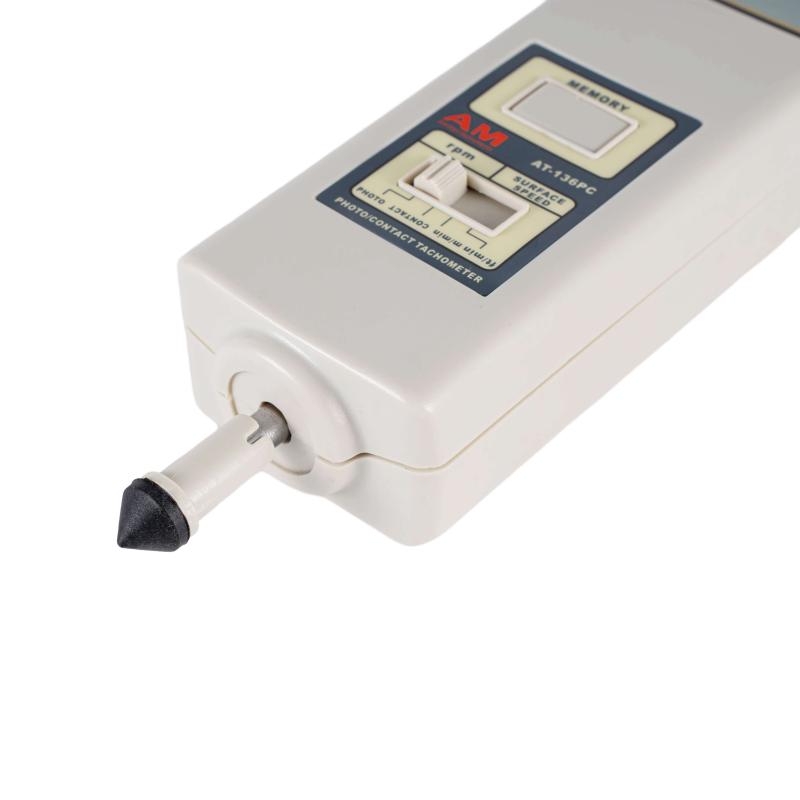

3. Contact the measurement head in direct contact with the measured object
4. Read the measurement values on the display
5. Optionally view the MAX Maximum, MIN Minimum and Last Measured value of the memory
6. After use, you can manually shut down or wait for automatic shutdown.
Notice
* Photoelectric measurement needs to maintain an effective measurement distance of 50-600mm
* Make sure that the measurement head is in good contact with the measured object during contact measurement

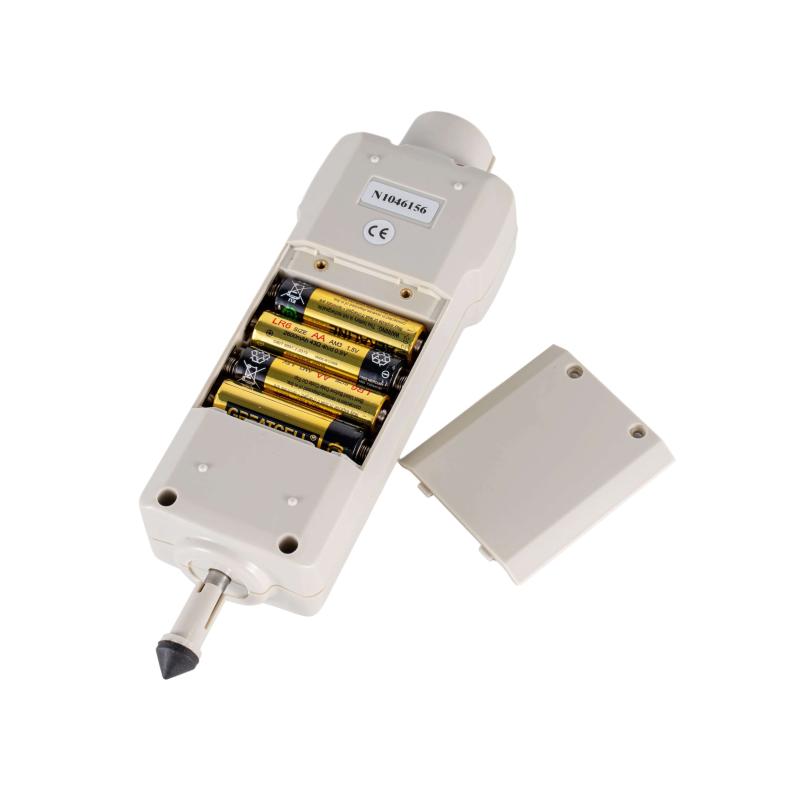

* Pay attention to the battery level, and replace the battery in time when there is an under-voltage alarm
* Avoid use in strong electromagnetic interference environments
* When storing, avoid high temperature and humid environment
