TQC sheen VF2161 Prismatic bird type coating Applicator Stainless steel four thickness Spreader

Name: TQC sheen VF2161 Prismatic bird type coating Applicator Stainless steel four thickness Spreader
Brand: TQC sheen
SKU: NB000520
Price: 1163.0 USD
Availability: InStock

$ 1163.00Ex works

The single gap design is easy to clean, the four painted surfaces can be prepared with four different thicknesses, the application width is 50mm, the accuracy is +/- 3μm, and the acid and alkali corrosion resistance service life is long.

Model

Get Quote

Category : Film Applicator

Brand : TQC sheen

SKU : NB000520

Service :The delivery and service By NBCLab.Com

Overview

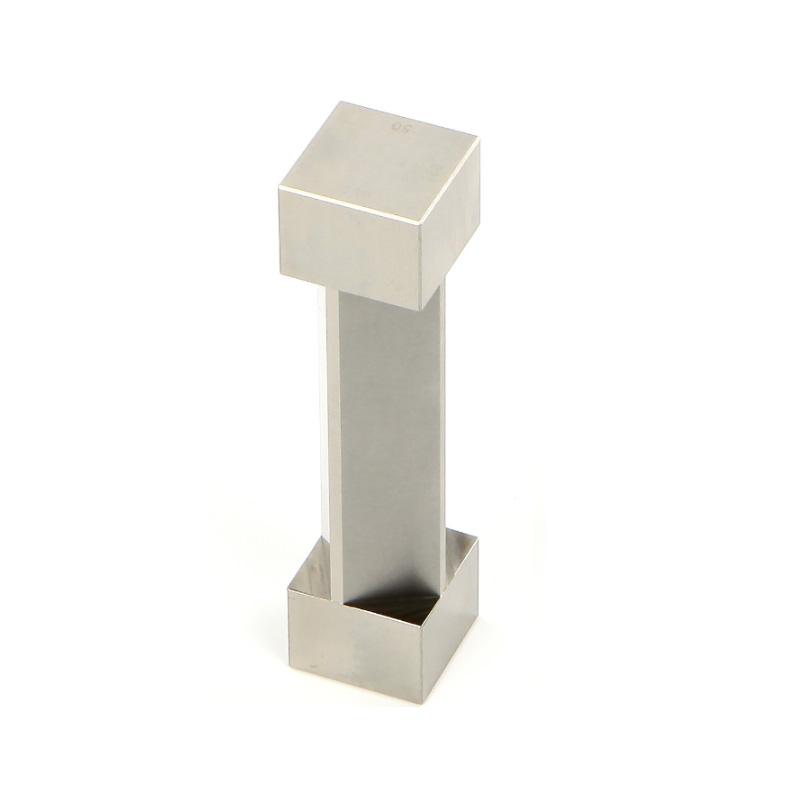

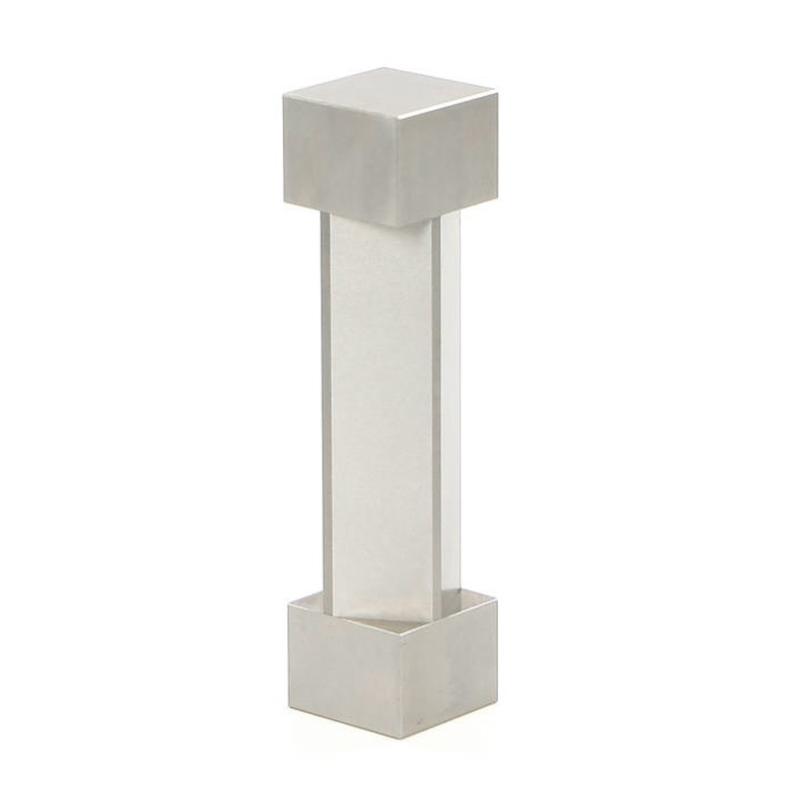

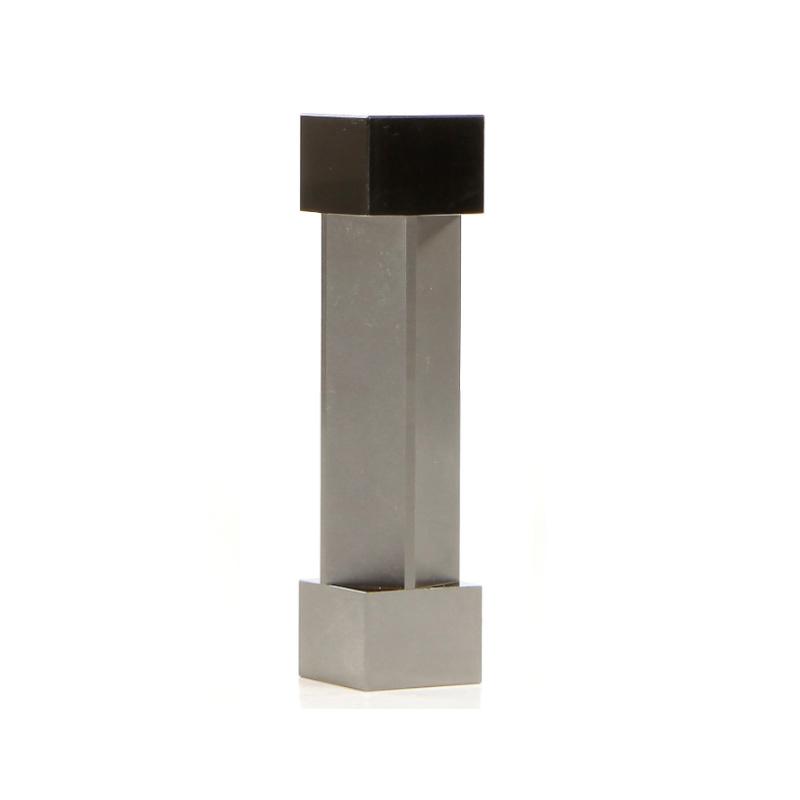

TQC prismatic bird type coating applicator model VF2161 is a stainless steel film applicator with a gap design for easy cleaning and durability against acid and alkali erosion in coatings or cleaning agents. The coating applicator has four paint surfaces and can be applied to four different film thicknesses. With a painting width of 50mm, it is suitable for most products and solid substrates.

Features

1. Stainless steel material, acid and alkali erosion, strong durability; 2. A gap design makes cleaning easy. 3. Four painted surfaces can be applied to four different film thicknesses. 4. The painting width is 50mm, with wide applicability; 5. The accuracy is +/- 3μm, and the operation is simple and effective.

Principle

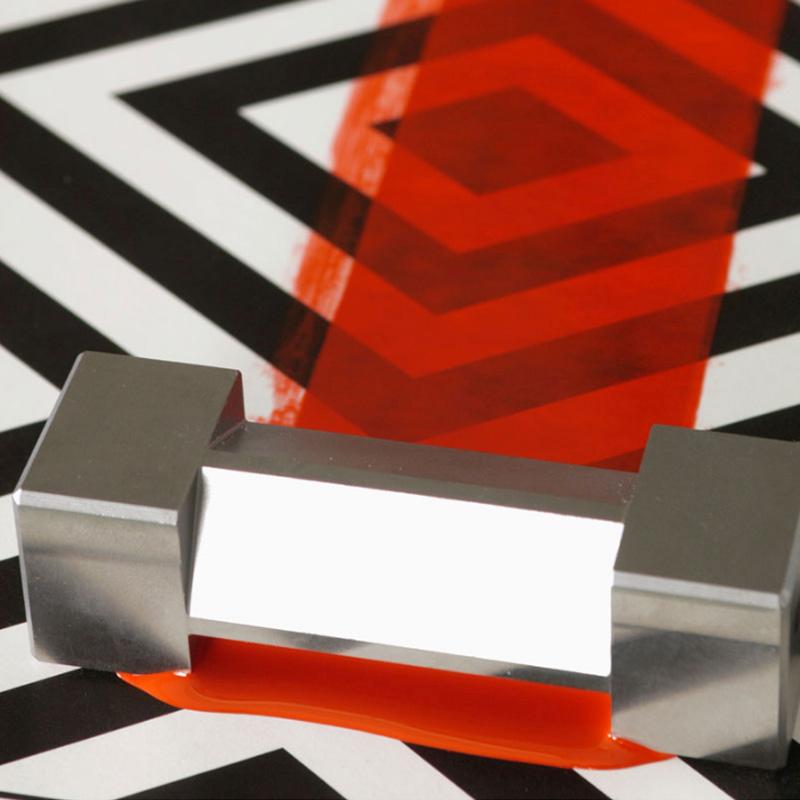

The bird type coating applicator forms wet-films of different thicknesses during the Spreader process through its prismatic design and four painted surfaces. The user selects a specific painted surface for Spreader, and uses the coating applicator to move evenly on the substrate to prepare the desired film thickness.

Applications

Coating Spreader, wet-film preparatory

Standards

ASTM D 3022、ASTM D 823

Steps

1. Select the desired paint surface to determine the film thickness; 2. Place the coating applicator on the substrate; 3. Spreader uniformly moving coating applicator; 4. Clean the coating applicator after completion.

Notice

- Clean the coating applicator after use to prevent Coating residue; - Avoid scratching the surface of the coating applicator with sharp objects; - Ensure coating applicators are stored in a drying environment to prevent rusting; - Pay attention to the uniformity of the Spreader during operation to avoid uneven thickness.

Type
multi-faceted
wet film thickness
50/100/150/200μm
application width
50mm
accuracy
±3μm
material
stainless steel
standard
ASTM D 3022 ASTM D 823
