Overview

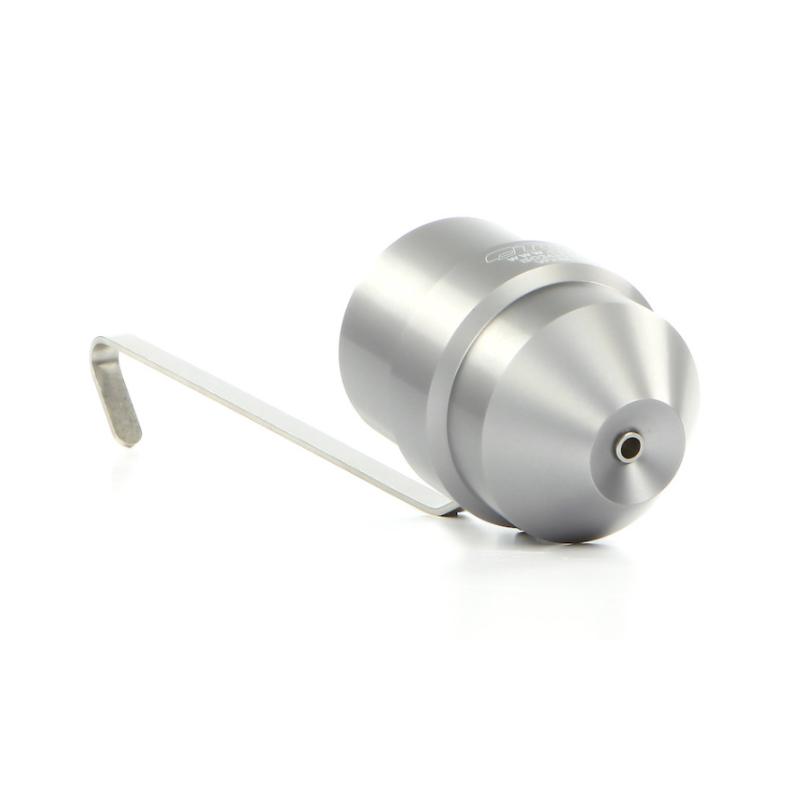

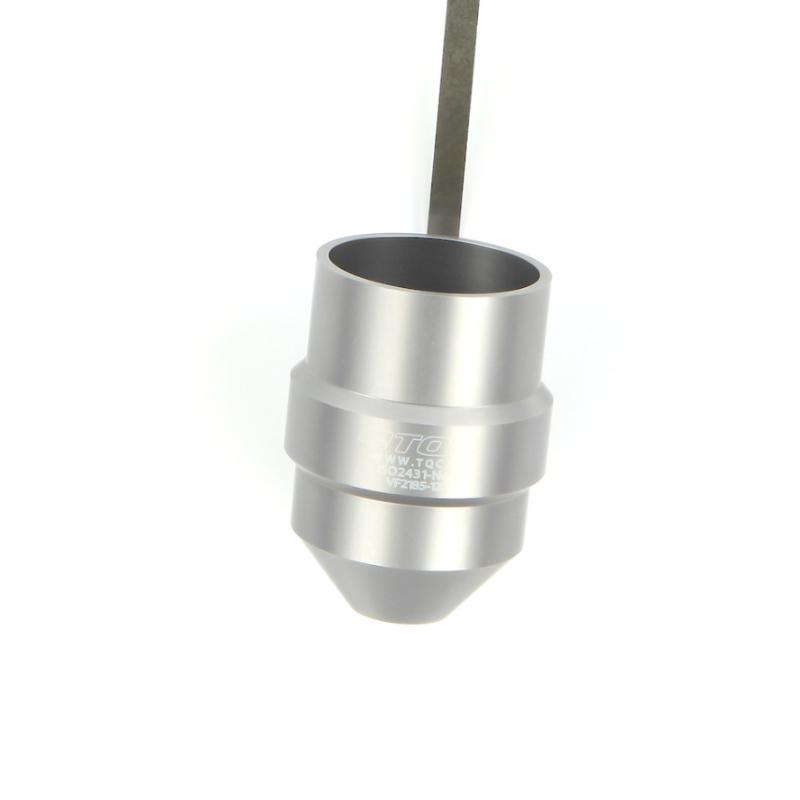

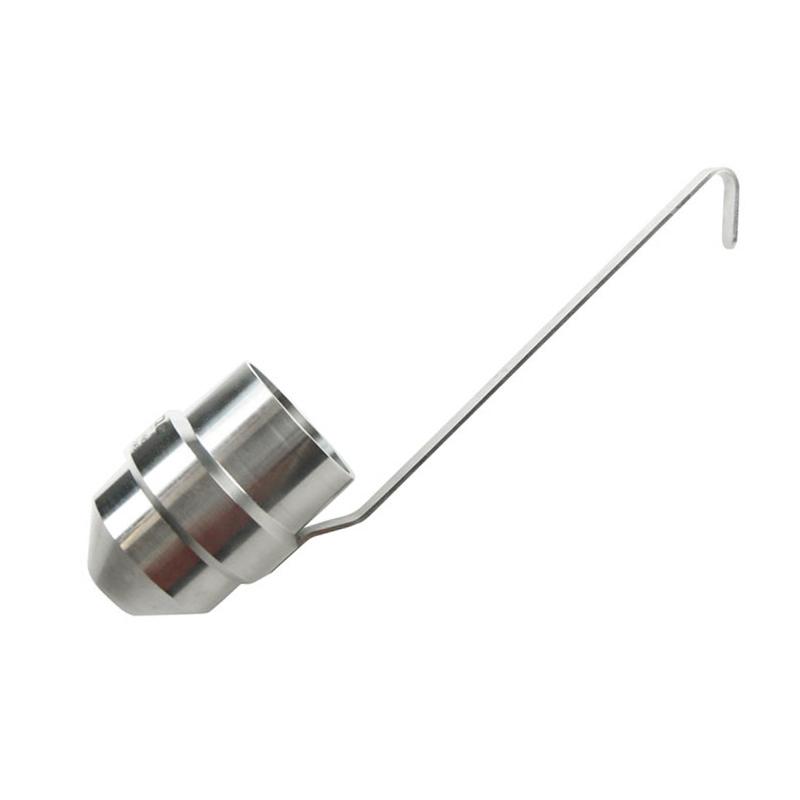

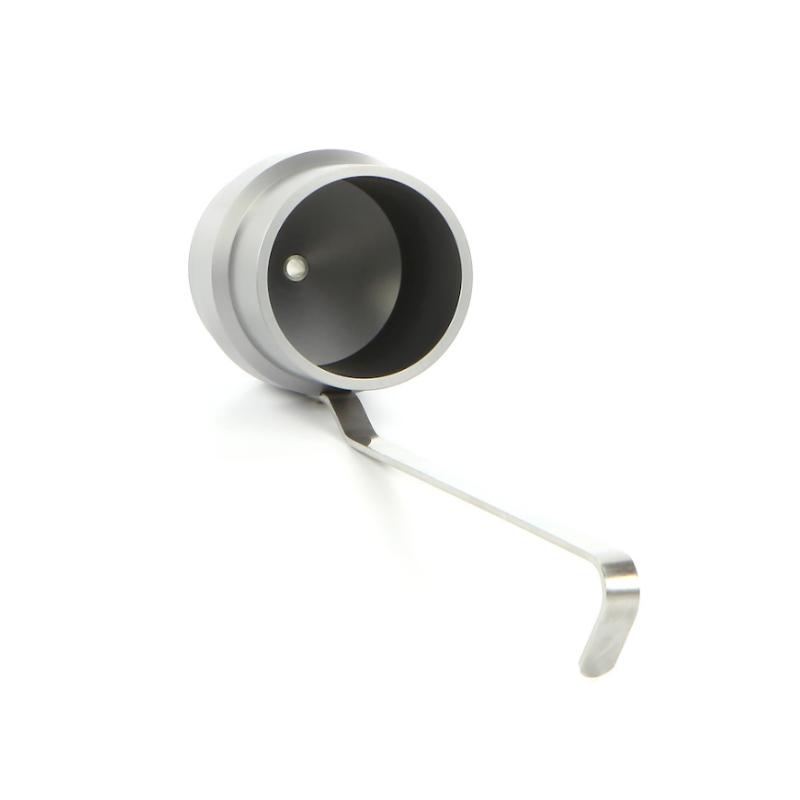

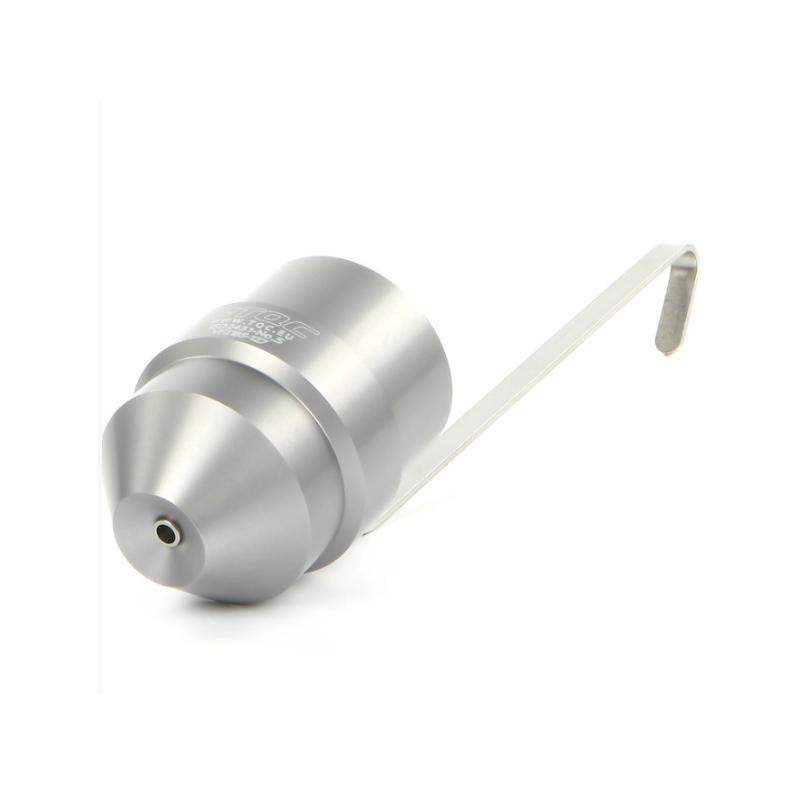

The TQC VF2222 dip viscosity cup is a Handheld stainless steel ISO viscosity cup with a filter diameter of 4mm, a height of 73mm and a width of 63mm. The product is suitable for various liquid viscosity tests, with a flow time measurement range of 30 to 100 seconds. It is produced in strict accordance with DIN EN ISO 2431 standards and is highly resistant to oxidation and durable.
Features
1. Made of stainless steel, strong oxidation resistance, durable
2. Handheld structure design, easy to operate
3. Filter diameter 4mm, Measurement accuracy
4. Each viscosity cup has a unique code for easy identification and management
5. Flow time measurement range 30~ 100 seconds
Principle
The TQC ISO viscosity cup calculates viscosity by measuring the time it takes for the liquid to flow out of the hole at the bottom of the cup. The time required for the liquid to completely flow out is recorded during the test, and the disc viscosity calculator converts the outflow time to dynamic viscosity units, so it is also called a flow cup.
Applications
Inks, paints, similar concentrations of product viscosity testing
Steps
1. Prepare the liquid sample to be tested
2. Immerse the viscosity cup into the liquid
3. Record the time for the liquid to completely flow out of the hole at the bottom of the cup
4. Convert outflow time to viscosity value using disc viscosity calculator
Notice
• Ensure viscosity cup is clean and drying before measurement
Keep Ambient Temperature Stable During Testing
• The outflow time should be within the range of 30 to 100 seconds
• Use the matching viscosity conversion disc for accurate conversion
• Regularly check whether the filter is blocked
