TQC sheen VF2357 cross-cut blade 2mm tooth spacer for soft substrate

Name: TQC sheen VF2357 cross-cut blade 2mm tooth spacer for soft substrate
Brand: TQC sheen
SKU: NB000528
Price: 848.0 USD
Availability: InStock

$ 848.00Ex works

Tooth spacing of 2mm, suitable for 0-60µm soft substrate, round cutter design with eight notches, effectively extend the service life, in line with ISO 2409 international standards.

Model

VF2357

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : TQC sheen

SKU : NB000528

Service :The delivery and service By NBCLab.Com

Overview

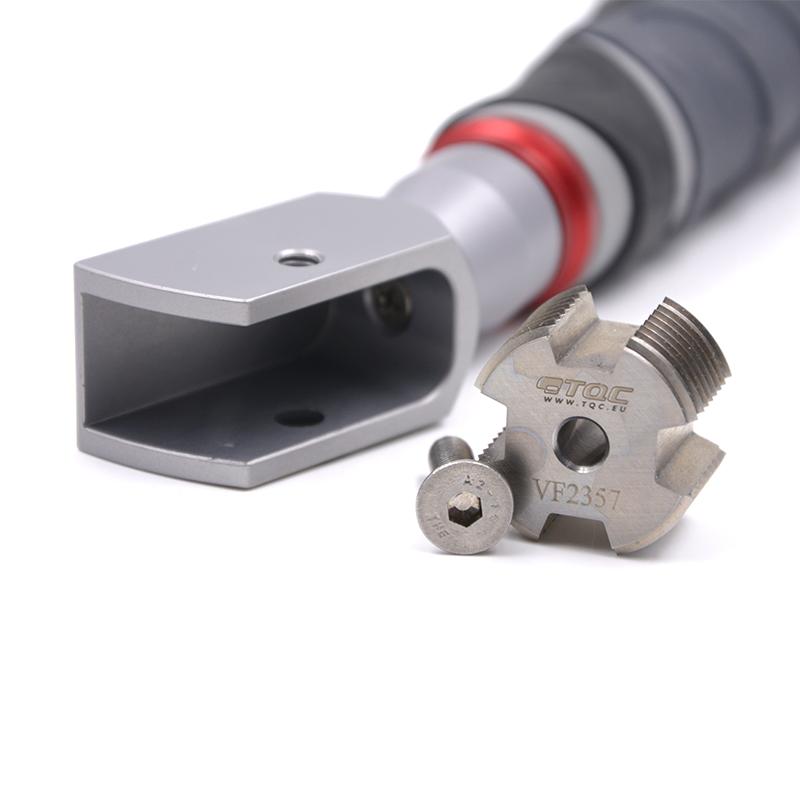

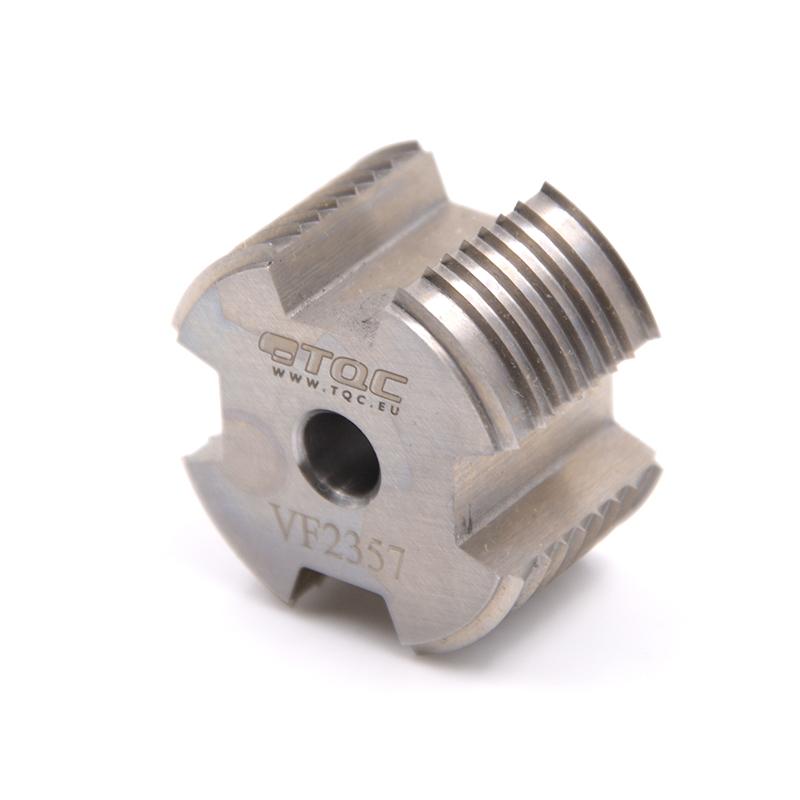

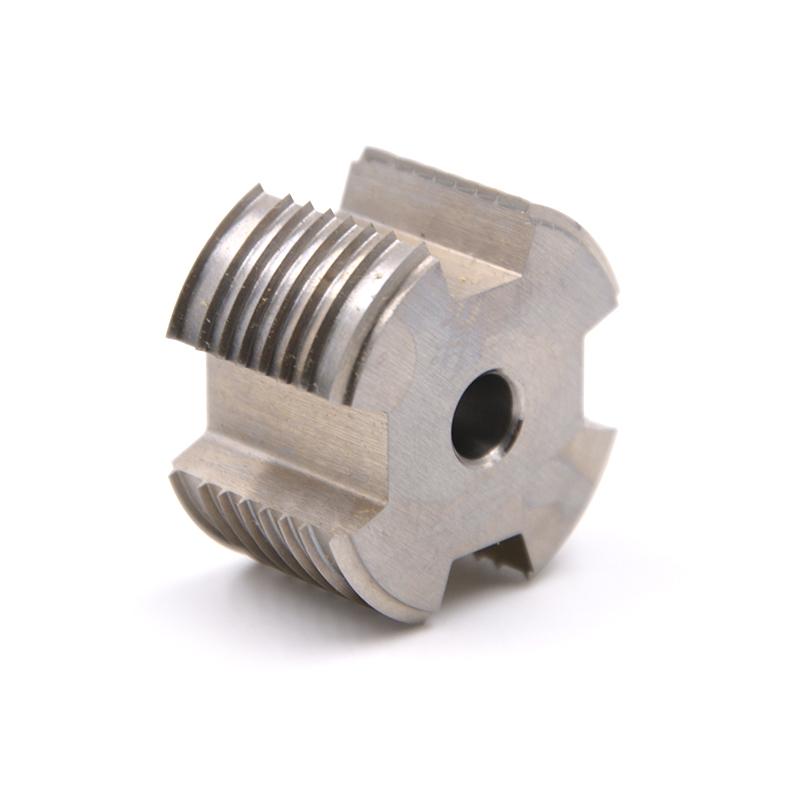

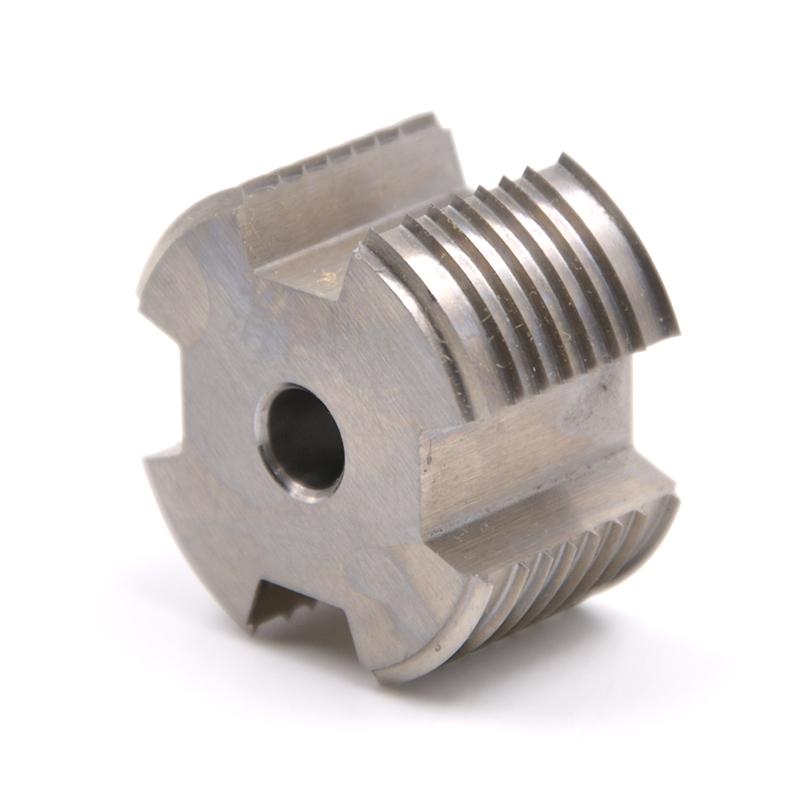

The TQC sheen VF2357 cross-cut blade is a professional cutting tool for coating adhesion testing. It is designed with a round cutter with eight cuts to provide a longer service life. The blade is suitable for testing soft substrates with a Coating thickness of less than 60 microns.

Features

1. The round cutter is designed with eight incisions for a longer service life 2. The cutter tooth spacing is 2mm, and the number of cutter teeth is 6 teeth 3. Coating thickness of less than 60 microns soft substrate design 4. Comply with ISO 2409 international standards

Principle

The cross-cut blade is used to evaluate the adhesion performance between the coating and the substrate by cutting a regular grid pattern on the coating surface. Standardized cutting grids are formed on the coating by specific spaced teeth for subsequent tape testing and adhesion grading.

Applications

Coating adhesion testing, mass testing, laboratory analysis

Standards

ISO 2409

Steps

1. Choose cross-cutting blades suitable for Coating thickness and substrate type 2. Uniform force on the coating surface to cut the mesh pattern 3. Clean up debris in the cutting area 4. Conduct tape test and evaluate adhesion grade

Notice

• The 100-grid blade is sharp, so pay attention to safety when using it. • Please use Encasement box to store blades • Coating thickness and substrate type selection • Maintain a stable force during operation to ensure cutting mass

Number of teeth
6 teeth
Tooth spacing
2mm
application standard
ISO 2409
Applicable film thickness environment
0~ 60µm (soft substrate)
Dimension
The round face cutter has eight incisions for a longer service life
