Overview

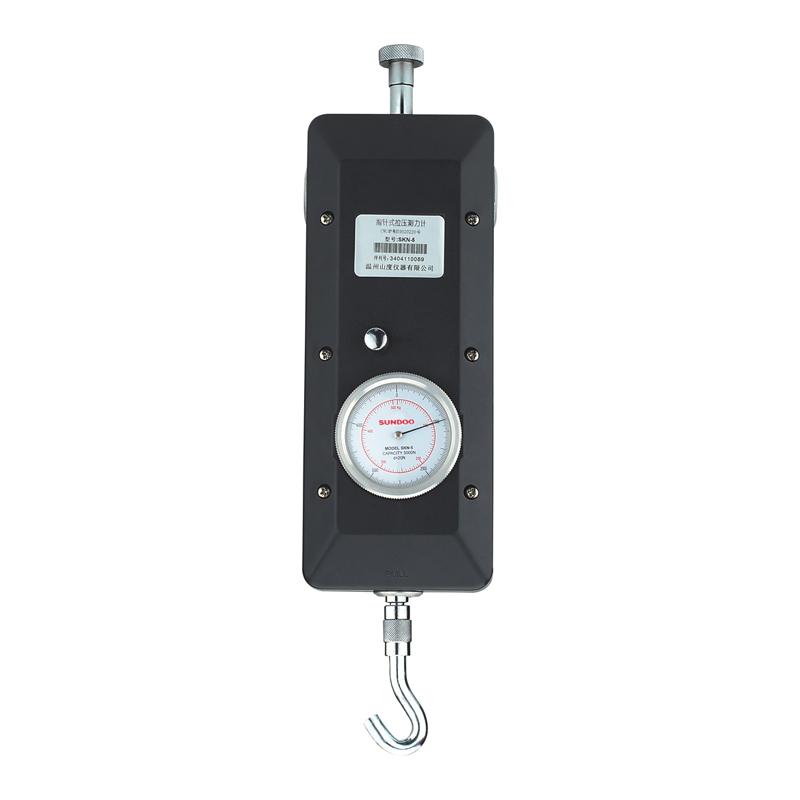

SKN-1 tension and compression Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO. It has the advantages of High Accuracy, easy operation and easy portability. It is equipped with a peak switching operation knob, which can indicate the peak load and continuous load value. It is equipped with a tolerance belt indicator device to facilitate batch test readings. It is suitable for push-pull load testing in Electronics, Light Industry Spinning & Weaving, Construction Hardware, Lighters and Ignition Devices, Fire Equipment, Pen Making, Locking, Fishing Tackle, Power Machinery, Scientific Research Institutions and other industries. It is a new generation of products to replace Tubular Force Gauge.
Features
1. Handheld design, compact size, simple operation, and can be used in combination with various fixtures.
2. Pointer indication, easy reading, high test Accuracy;
3. Peak protection function and continuous load indication can be switched freely.
4. Tolerance belt indicator device, which can achieve upper and lower limit setting;
5. Newton and kilogram units (units can be customized) are displayed at the same time, without unit conversion;
6. One-year warranty, long-term maintenance;
7. Patent design, patent number: ZL200520074355.1.
Principle
The SKN-1 Pull Force Gauge receives the push-pull force through the central axis, and the pointer indicates the load value on the dial. The user can switch the peak or continuous load mode, and use the tolerance band indicator to set the upper and lower limits for batch test judgment.
Applications
Electronics, Light Industry Spinning & weaving, Construction Hardware, Lighters and Ignition Devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Power Machinery, Scientific Research Institutions
Standards
Patent number: ZL200520074355.1
Steps
1. Test preparation: Select the appropriate test connector fixture and install it on the Force Gauge.
2. Tensile test: Install the attached tensile fixture onto the central shaft marking the pull [PULL] end.
3. Compression test: From the attached thrust fixture, select the appropriate test fixture and install it on the central axis marked with the [PUSH] end.
4. Utilization of extended connecting rod: When the test object cannot be contacted, use the attached accelerating connecting rod to install the fixture.
5. Confirmation and operation method of switching knob: including the switching of peak load [PEAK] and continuous load [TRACK], and the knob should be placed in the peak load [PEAK] position after testing.
6. Dial adjustment: swirl/spin scale adjustment makes the pointer align with the [0] position of the dial.
7. Tolerance indicator belt setting: Turn the two pointers on the tolerance indicator to set the upper and lower tolerance limits required for the test.
Notice
When testing, please align the object under test with the Force Gauge before performing the test, otherwise the correct load value cannot be obtained.
• When using the extended connecting rod for testing, the test object and the Force Gauge must be in the same line, otherwise the correct load value cannot be obtained.
• Please place the "·" mark of the switching knob at the peak load [PEAK] position after the test is completed. If it is placed in the continuous load [TRACK] position for a long time, the service life of the internal zero spring will be shortened.
• When this instrument is placed vertically, even if no load is applied, the pointer may deviate from the [0] bit. The swirl/spin scale should be adjusted to align the [0] of the dial with the pointer before testing.
• Environmental requirements: Operating temperature is 20 +/- 10 ℃ and relative humidity is 15%~ 80% RH.
