Overview

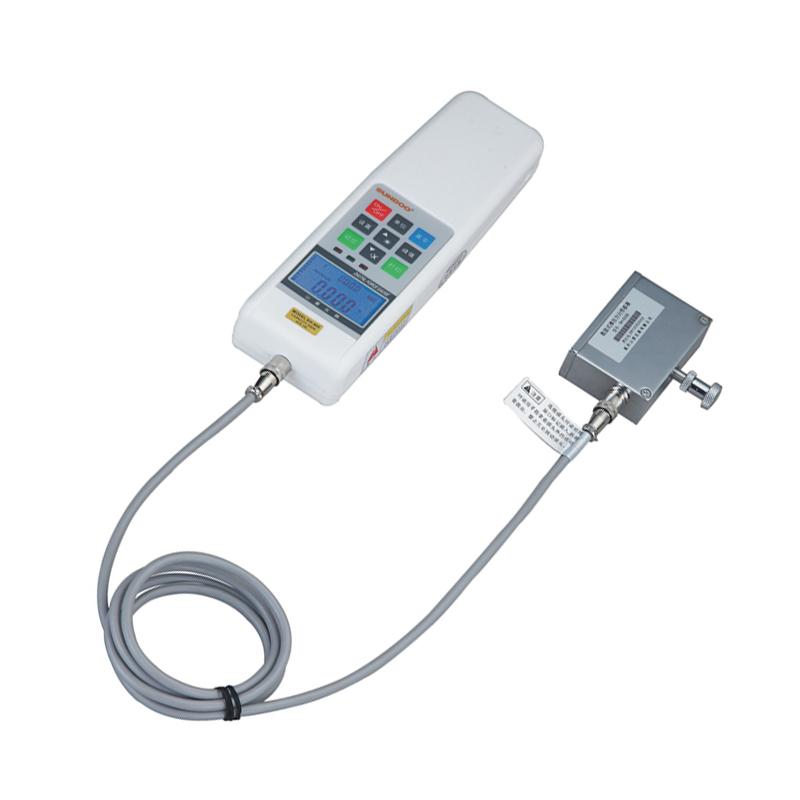

SHB-5B Tension and Compression Force Gauge is a small and simple digital display thrust and tension test instrument produced by SUNDOO. It has the characteristics of High Accuracy and High resolution. It is suitable for push-pull load test, plug-in force test and failure test. The instrument is small in size, light in weight and easy to carry. It can be combined with various machines and fixtures to form a small testing machine.
Features
1. High Accuracy and high resolution;
2. The upper and lower limit deviation values are freely set and judged, and the red and green indicator lights and buzzer are automatically set for sound and light alarm;
3. Test direction display;
4. The blue backlight can be switched on and off.
5. It can store 10 sets of test data and automatically calculate the average value of the stored data.
6. Three units N, kgf, and lbf are automatically converted;
7. The data on the LCD screen can be flipped and displayed;
8. With peak hold function, peak automatic release function and free release time setting;
9. Power-saving design for automatic shutdown without operation, with free shutdown time setting.
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, qualified or unqualified value judgment, connect the dedicated machine to achieve the machine stops moving when the predetermined stop value is reached.
Principle
Measurement range is 10%~ 100% FS, Indication Error is less than +/- 0.5%. The instrument converts the measured force value into digital signal display, and has Data storage, unit conversion and alarm functions.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
1. Read the instructions carefully before use.
2. Connect the power supply or ensure that the battery is fully charged.
3. Set the upper and lower limit deviation values, units, backlights and other parameters as needed;
4. Conduct push-pull load testing, and the instrument automatically displays and stores data.
5. It can be connected to a computer, printer or dedicated machine through a serial port to expand the function.
Notice
Please read the manual carefully before use.
• Charging time of the battery is about 4 hours and use time is about 40 hours;
• Avoid overload use, the maximum Measured value is 5N;
• Regularly check Sensors and Connections;
• Be careful not to exceed the 10-set limit when storing data.
