Overview

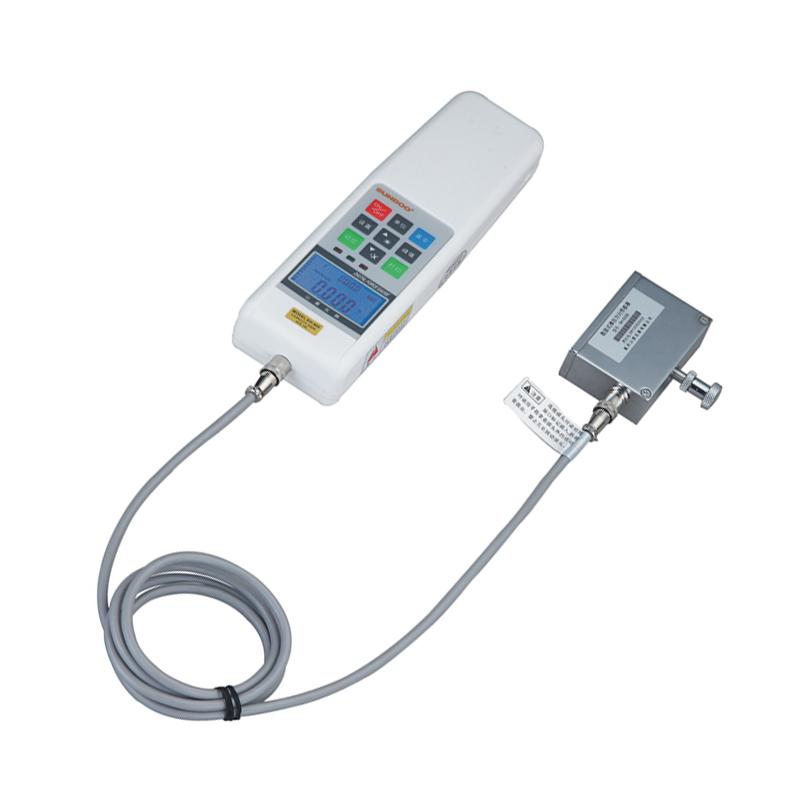

SHB-100B Pull and Compress Force Gauge is a small and simple digital display thrust and tensile test instrument produced by SUNDOO, with High Accuracy and high resolution. It is suitable for push-pull load test, plug-in force test and failure test of various products. It can be combined with machine and fixture to form a small testing machine. It has the characteristics of small size, light weight, easy portability and multi-function.
Features
1. High Accuracy and high resolution;
2. The upper and lower limit deviation values are freely set and judged, and the red and green indicator lights and buzzer are automatically set for sound and light alarm;
3. Test direction display;
4. The blue backlight can be switched on and off.
5. It can store 10 sets of test data and automatically calculate the average value of the stored data.
6. Three units N, kgf, and lbf are automatically converted;
7. The data on the LCD screen can be flipped and displayed;
8. With peak hold function, peak automatic release function and free release time setting;
9. Power-saving design for automatic shutdown without operation, with free shutdown time setting.
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, qualified or unqualified value judgment, connect the dedicated machine to achieve the machine stops moving when the predetermined stop value is reached.
Principle
SHB-100B Pull and Compress Force Gauge measures the push and pull force through the external Sensor structure. The Measurement range is 10%~ 100% FS, and the Indication Error is less than +/- 0.5%. It adopts digital display, the load Graduation is 0.05N, the maximum Measured value is 100N, and the signal is processed through the built-in circuit to realize Data storage, unit conversion and alarm functions.
Applications
Push-pull load test, insertion force test, failure test
Steps
1. Read the instructions carefully before use.
2. Connect the power supply or ensure that the battery is charged.
3. Set the upper and lower limit deviation value, peak release time or automatic shutdown time as needed;
4. Perform a push-pull load test, and the instrument automatically displays the test direction, data, and may trigger a sound and light alarm.
5. Store test data and connect it to a computer, printer, or dedicated machine for further processing.
Notice
Please read the instructions carefully before using this instrument, so as to make full use of the function of the instrument to ensure that the correct load value is obtained during the test; Note that the battery Charging time is about 4 hours, the use time is about 40 hours, the standby time is about 3 months, and the Battery life is not less than 300 times; Avoid using it in an environment beyond the Measurement range or improper to prevent damage to the instrument.
