Overview

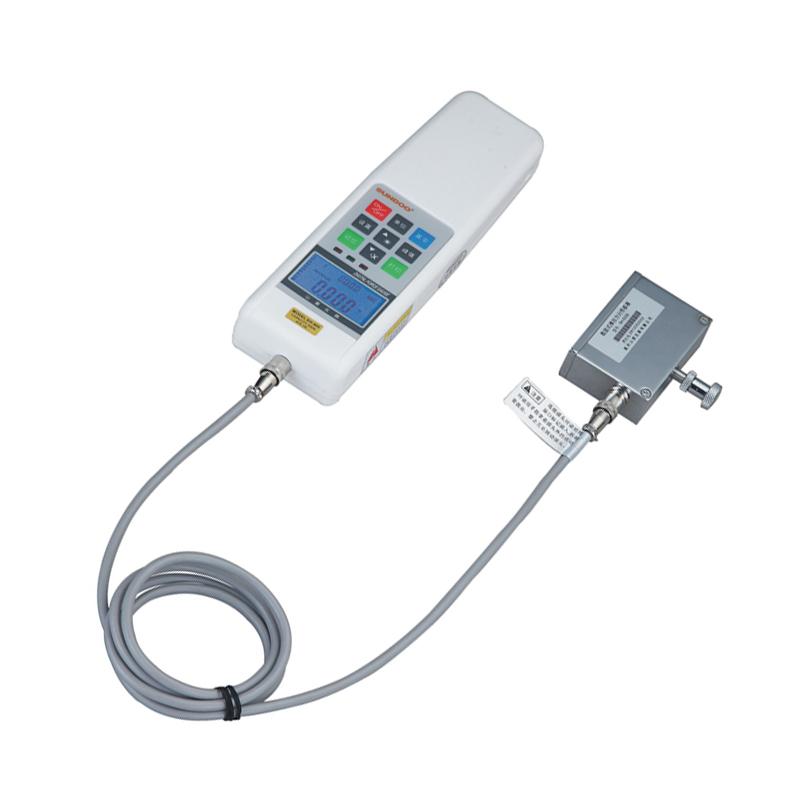

SHB-200B tension and compression Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO, with the characteristics of High Accuracy and High Resolution. The digital display Force Gauge is small in size, light in weight and easy to carry. It is suitable for push-pull load test, plug-in force test and failure test of various products. It can be combined with a machine and a fixture to form a small testing machine.
Features
1. High Accuracy and high resolution
2. Free setting and judgment of upper and lower deviation values, red and green indicator lights and buzzer automatic sound and light alarm settings
3. Test direction display
4. Blue backlight can be switched on and off
5. It can store 10 sets of test data and automatically calculate the average value of the stored data
6. Three units N, kgf, lbf are automatically converted
7. The data on the LCD screen can be flipped and displayed
8. With peak hold function, peak automatic release function and free release time setting
9. Power-saving design for automatic shutdown without operation, free shutdown time setting
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, qualified or unqualified value judgment, connect the dedicated machine to achieve When the predetermined stop value is reached, the machine stops moving
Principle
Measurement range is 10%~ 100% FS. Measured value is displayed in real time by digital display. The instrument is connected to external devices through serial output to realize data collection, processing and transmission functions.
Applications
Product push-pull load test, insertion force test, failure test
Steps
1. Read the instructions carefully before use
2. Set the upper and lower limit deviation values as needed
3. Select the test unit and display mode
4. Conduct a push-pull test
5. View stored data and statistical results
6. Connect external devices for data output or printing
Notice
• Please read the instructions carefully before use
• Make sure the battery is fully charged
• Set test parameters correctly
• Avoid exceeding the maximum Measured value 200N
• Regularly charge and maintain the battery
