Overview

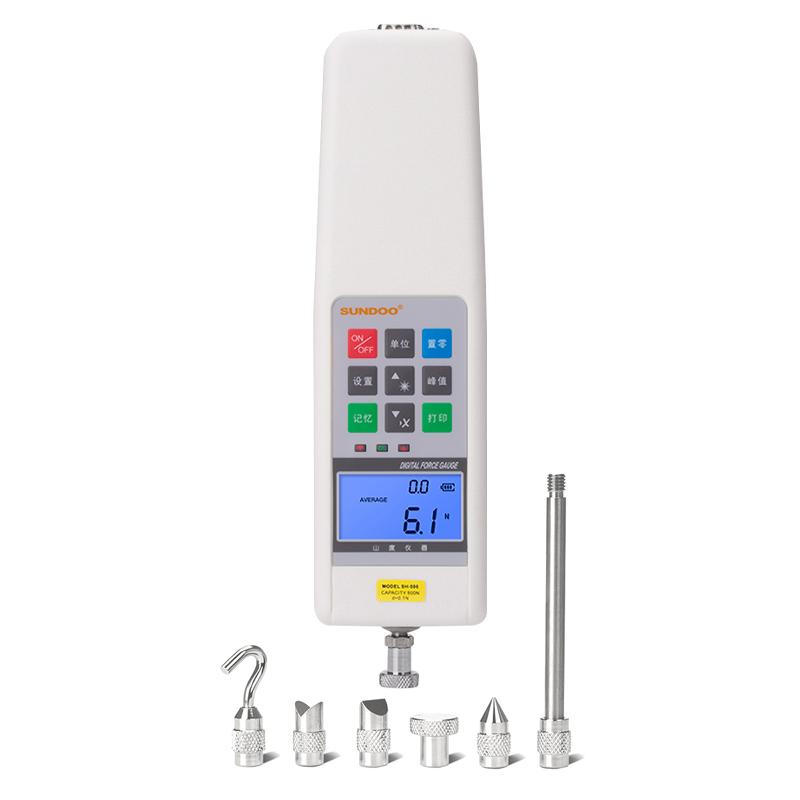

SHB-5 Force Gauge is a digital display Force Gauge produced by SUNDOO, which is a small and simple thrust and tension test instrument. It has the characteristics of High Accuracy, High Resolution, Multifunctional and Portable, and is suitable for push-pull load test, plug-in force test and failure test of various products. It can be combined with a machine and a fixture to form a small testing machine.
Features
1. High Accuracy and high resolution
2. Free setting and judgment of upper and lower deviation values, red and green indicator lights and buzzer automatic sound and light alarm settings
3. Test direction display
4. Blue backlight can be switched on and off
5. It can store 10 sets of test data and automatically calculate the average value of the stored data
6. Three units N, kgf, lbf are automatically converted
7. The data on the LCD screen can be flipped and displayed
8. With peak hold function, peak automatic release function and free release time setting
9. Power-saving design for automatic shutdown without operation, free shutdown time setting
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, qualified or unqualified value judgment, connect the dedicated machine to achieve When the predetermined stop value is reached, the machine stops moving
Principle
The SHB-5 Force Gauge detects push-pull loads through the built-in Sensor, converts the force value into an electrical signal, and displays it on the digital display screen after processing. It supports peak hold, Data storage and automatic unit conversion, and connects to a computer, printer or dedicated machine through serial output for Linear dispersion testing, data printing and machine control.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
1. Read the instructions carefully before use
2. Connect the power supply or ensure that the battery is charged
3. Set the upper and lower limit deviation value, unit, peak release time and other parameters as needed
4. Perform a push-pull load test and observe the display data
5. Utilize the storage function to record test data
6. Connect external devices through serial port for data output or control
Notice
• Operating temperature: 20 ℃ +/- 10 ℃
• relative humidity: 35% RH~ 65% RH
• No vibration source and no corrosion medium around
• Please read the instructions carefully before use
• Make sure the battery is charged, Charging time is about 4 hours, use time is about 40 hours
