Overview

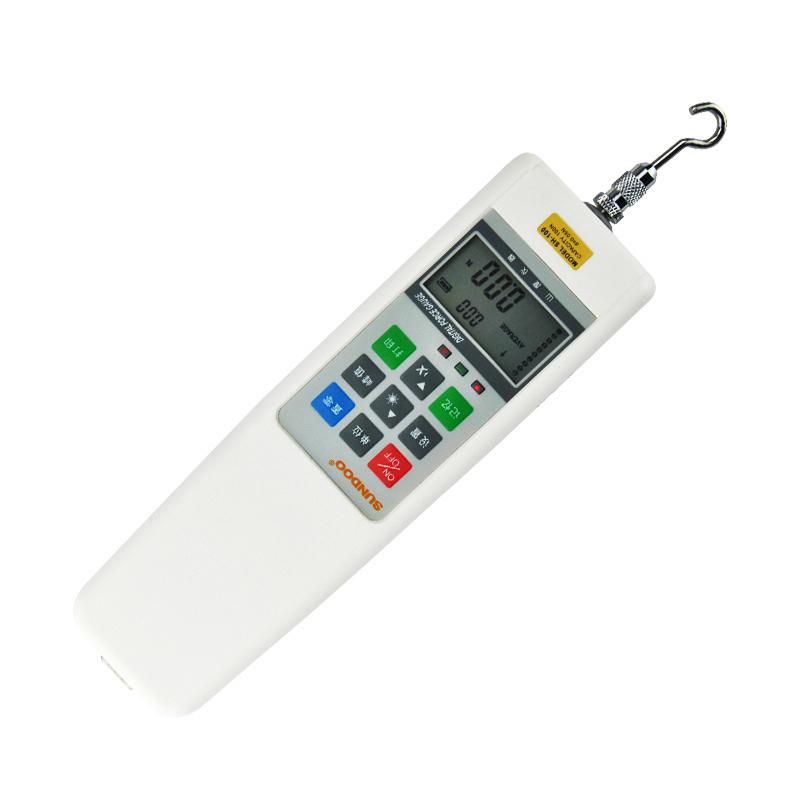

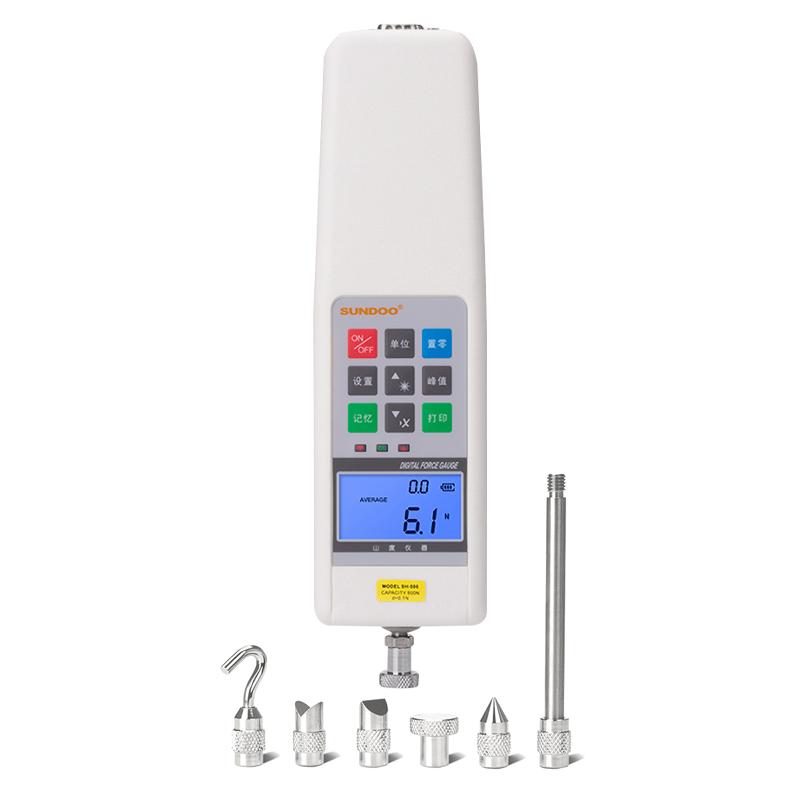

SHB-200 Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO, with High Accuracy and high resolution. The digital display Force Gauge adopts a universal Portable design, which is small in size, light in weight and easy to carry. It is suitable for push-pull load test, plug-and-pull force test and failure test of various products. It can be combined with various machines and fixtures to form a small testing machine for different purposes.
Features
1. High Accuracy and high resolution
2. Free setting and judgment of upper and lower deviation values, red and green indicator lights and buzzer automatic sound and light alarm settings
3. Test direction display
4. Blue backlight can be switched on and off
5. It can store 10 sets of test data and automatically calculate the average value of the stored data
6. Three units N, kgf, lbf are automatically converted
7. The data on the LCD screen can be flipped and displayed
8. With peak hold function, peak automatic release function and free release time setting
9. Power-saving design for automatic shutdown without operation, free shutdown time setting
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, qualified or unqualified value judgment, connect the dedicated machine to achieve When the predetermined stop value is reached, the machine stops moving
Principle
The strain gauge is used to output electrical signals from the force deformation of the resilience body, and the force value is displayed digitally after amplification and calibrating, so as to achieve accurate measurement of the push-pull bidirectional force value.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
Please read the instructions carefully before using this instrument, so as to make full use of the functions of this instrument and obtain the correct load value during testing
Notice
Operating temperature: 20 ℃ +/- 10 ℃
Relative humidity: 35% RH~ 65% RH
No vibration source and no corrosion medium around
