Overview

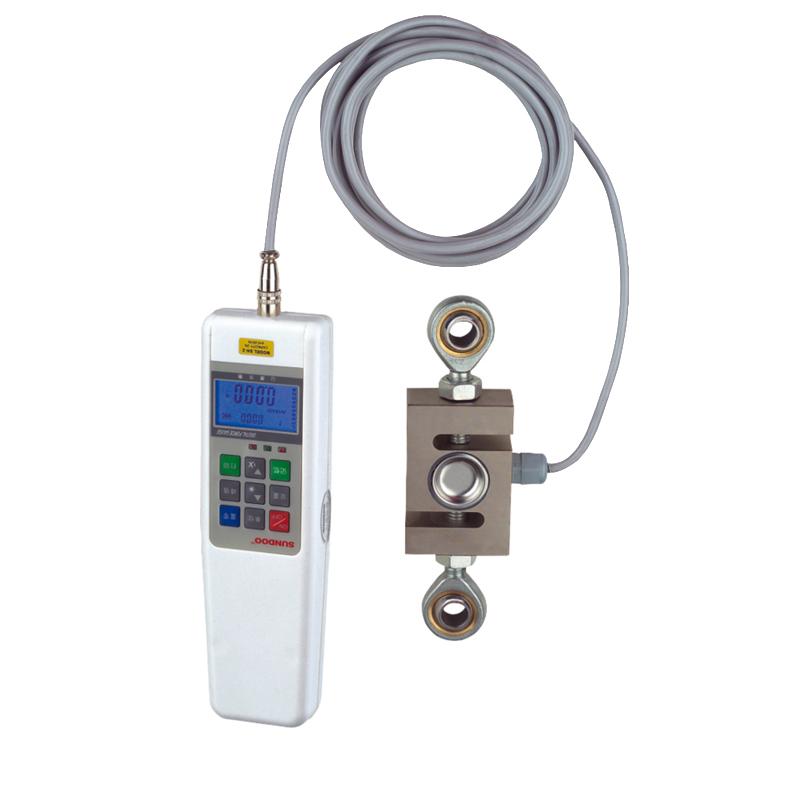

SHB-1K Tension and Compression Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO with High Accuracy and High Resolution. It is suitable for push-pull load test, plug-in force test and failure test of various products, and can be combined with machine and fixture to form a small test machine. It is a multi-functional High Accuracy digital display push-pull force test equipment.
Features
1. High Accuracy and resolution
2. Free setting and judgment of upper and lower deviation values, red and green indicator lights and buzzer automatic sound and light alarm settings
3. Test direction display
4. Blue backlight can be switched on and off
5. Can store 10 sets of test data and automatically calculate the average value of the stored data
6. Three units N, kgf, lbf are automatically converted
7. The data on the LCD screen can be flipped and displayed
8. With peak hold function, peak automatic release function and free setting of release time
9. Power-saving design of automatic shutdown without operation, free shutdown time setting
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, pass or fail value judgment, connect the dedicated machine to achieve When the predetermined stop value is reached, the machine stops moving
Principle
SHB-1K uses S-type external Sensor for load measurement. Measurement range is 10%~ 100% FS. Test data is displayed in real time through digital display, with peak holding and automatic calculation functions. The instrument can be connected to a computer, printer or special machine through serial output to realize data recording, printing and control functions.
Applications
Push-pull load test, insertion force test, failure test
Standards
Indication Error < +/- 0.5%
Steps
1. Read the instructions carefully before use
2. Connect the power supply or ensure that the battery is fully charged
3. Set the upper and lower limit deviation values, unit conversion and alarm parameters as needed
4. Conduct push-pull load testing
5. View test data through the LCD screen or use the peak hold function
6. Can store test data or connect external devices through serial port for data output
Notice
• Operating temperature: 20 ℃ +/- 10 ℃
• relative humidity: 35% RH~ 65% RH
• There should be no vibration source and no corrosion medium around
• Please read the instructions carefully before use
• The test bench needs to be purchased separately
