Overview

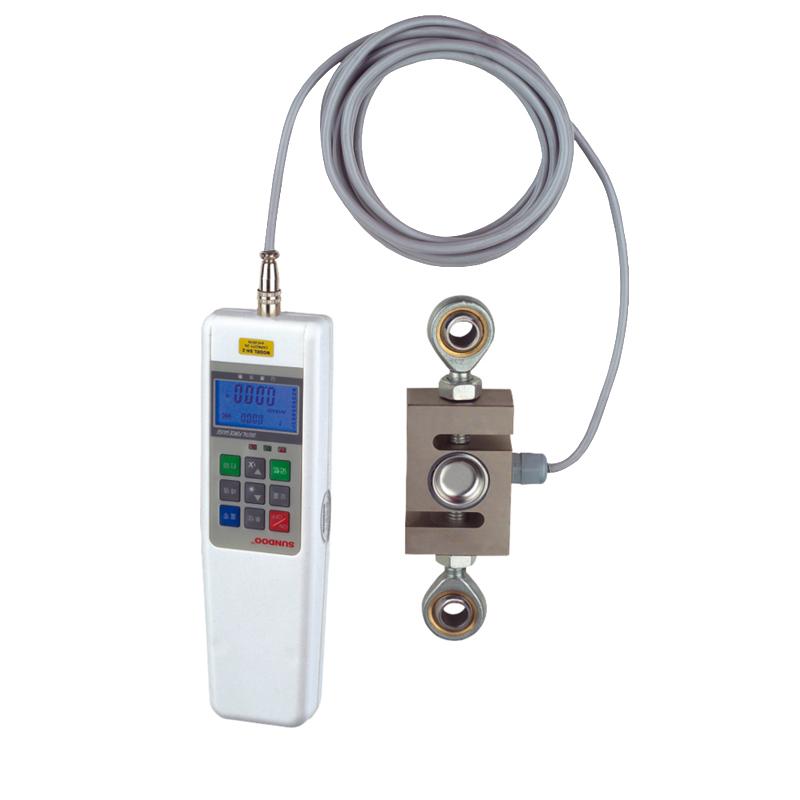

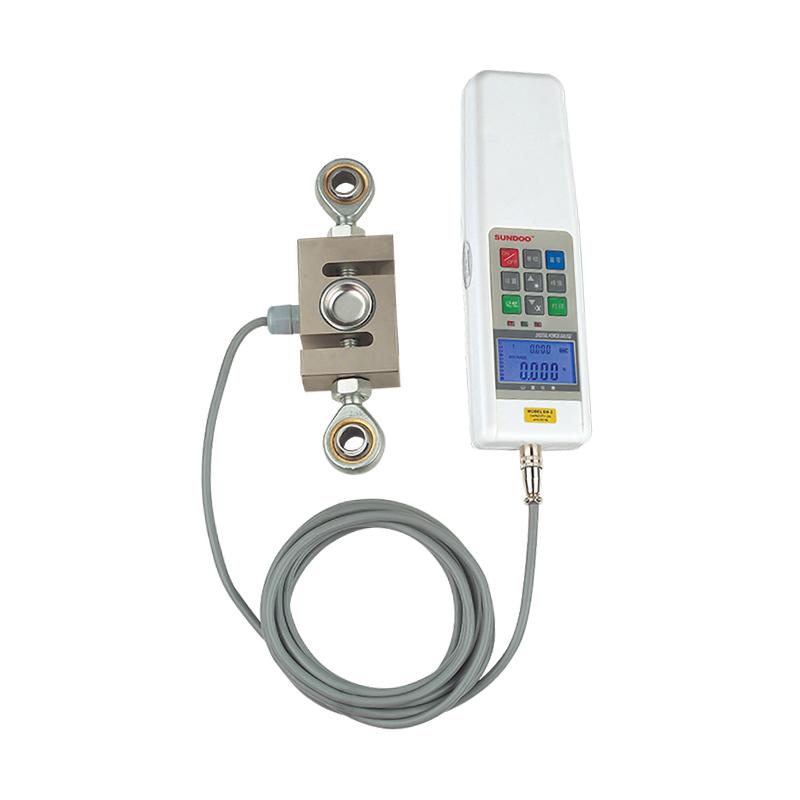

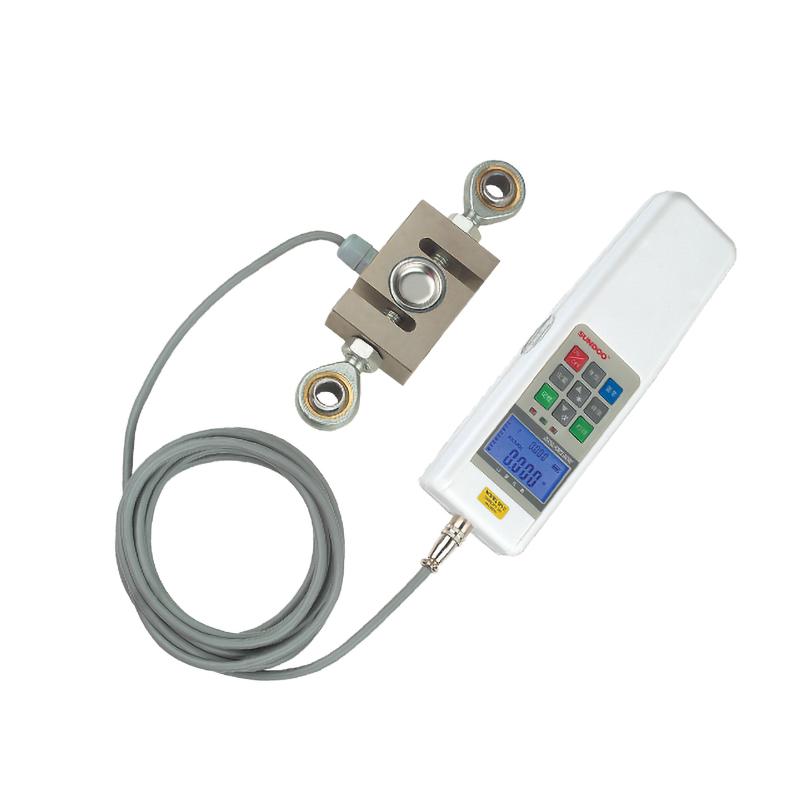

SHB-10K Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO, with the characteristics of High Accuracy and high resolution. It is suitable for push-pull load test, plug-in force test, failure test of various products, etc., and can be combined with the machine and fixture to form a small test machine. It is a push-pull force test instrument for college accuracy.
Features
1. High Accuracy and high resolution;
2. The upper and lower limit deviation values are freely set and judged, and the red and green indicator lights and buzzer are automatically set for sound and light alarm;
3. Test direction display;
4. The blue backlight can be switched on and off.
5. It can store 10 sets of test data and automatically calculate the average value of the stored data.
6. Three units N, kgf, and lbf are automatically converted;
7. The data on the LCD screen can be flipped and displayed;
8. With peak hold function, peak automatic release function and free release time setting;
9. Power-saving design for automatic shutdown without operation, with free shutdown time setting.
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, qualified or unqualified value judgment, connect the dedicated machine to achieve the machine stops moving when the predetermined stop value is reached.
Principle
Force Gauge uses the degree of deformation of the resilience element when stressed to measure the amount of thrust or tension applied.
Applications
Mass inspection, mechanical experiment, engineering test
Steps
1. Read the instructions carefully before use.
2. Connect the required equipment (e.g. computers, printers, or dedicated machines).
3. Set test parameters (such as upper and lower limit deviation values, unit conversion, peak release time, etc.);
4. Conduct a thrust or tension test.
5. View and store test data.
6. Automatically calculate the average value of the data and determine whether it is qualified or not.
Notice
• Operating temperature: 20 ℃ +/- 10 ℃;
• relative humidity: 35% RH~ 65% RH;
• No vibration source and no corrosion medium around;
Please read the manual carefully before use.
Make sure the battery is fully charged and avoid use in extreme environments.
