Overview

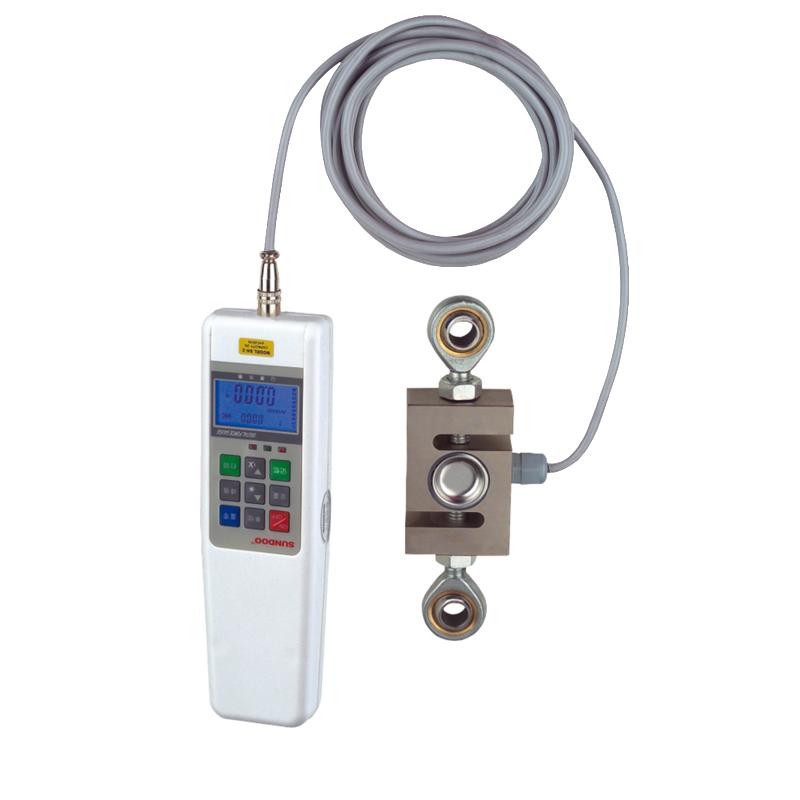

SHB-20K Tension and Compression Force Gauge (Digital Display) is a small and simple thrust and tension test instrument launched by SUNDOO, with High Accuracy and high resolution. It is suitable for push-pull load test, plug-in force test and failure test of various products, and can be combined with machine and fixture to form a small test machine. It is a multi-functional High Accuracy push-pull force test instrument.
Features
1. High Accuracy and resolution
2. Free setting and judgment of upper and lower deviation values, red and green indicator lights and buzzer automatic sound and light alarm settings
3. Test direction display
4. Blue backlight can be switched on and off
5. Can store 10 sets of test data and automatically calculate the average value of the stored data
6. Three units N, kgf, lbf are automatically converted
7. The data on the LCD screen can be flipped and displayed
8. With peak hold function, peak automatic release function and free setting of release time
9. Power-saving design of automatic shutdown without operation, free shutdown time setting
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, pass or fail value judgment, connect the dedicated machine to achieve When the predetermined stop value is reached, the machine stops moving
Principle
SHB-20K Pull and Compress Force Gauge uses S-type external Sensor for load measurement, Measurement range is 10%~ 100% FS. Push and pull force data is collected through High Accuracy Sensor, displayed on LCD screen after internal processing, and supports Data storage, unit conversion and alarm functions. Serial output can be connected to external devices to realize data expansion applications.
Applications
Push-pull load test, insertion force test, failure test
Standards
Indication Error < +/- 0.5%
Steps
1. Read the instructions carefully before use
2. Connect the power supply or ensure that the battery is fully charged
3. Set the upper and lower limit deviation value, unit, backlight and other parameters as needed
4. Carry out push-pull load testing, and the instrument automatically displays and stores data
5. Can be connected to a computer, printer or special machine for data output and control through a serial port
6. Automatic shutdown or manual shutdown according to the set time after use
Notice
- Operating temperature: 20 ℃ +/- 10 ℃
- relative humidity: 35% RH~ 65% RH
- no vibration source and no corrosion medium around
- Please read the instructions carefully before use
Make sure the battery is operating within the allowable time
