Overview

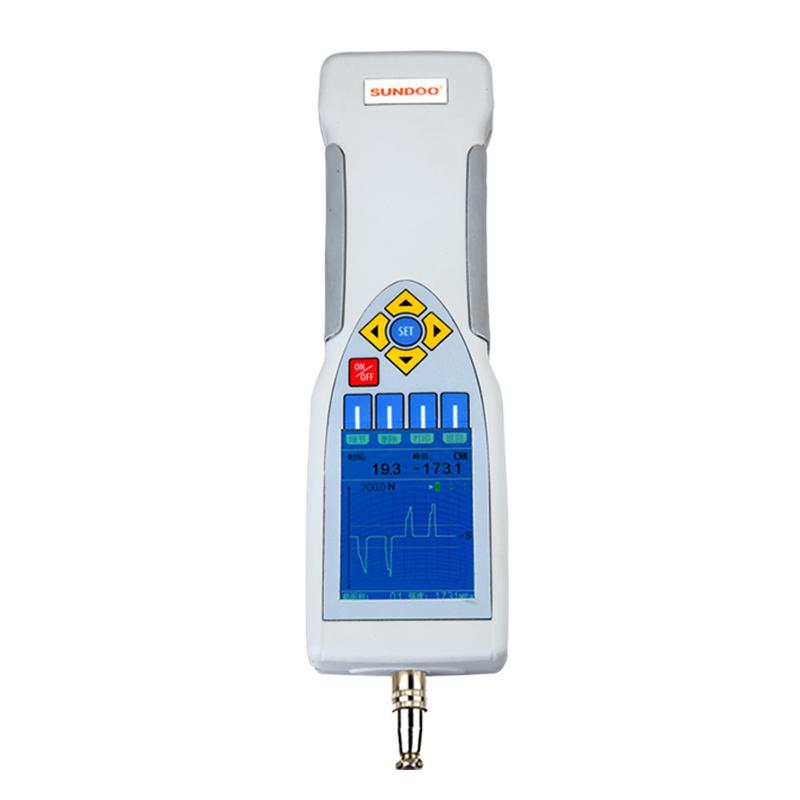

SP-5 Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO with High Accuracy and high resolution. It uses 240 × 320TFT color screen display, which can monitor the whole test process of Linear dispersion, support upper and lower limit deviation setting judgment, buzzer automatic alarm setting, and can store 3 groups of test Linear dispersion. The instrument has four units automatic interchange, peak hold function, wax value automatic release function and release time free setting, as well as power saving design of automatic shutdown without operation, and can be connected to PC through USB port hot plug. Please read the manual carefully before use to ensure correct operation.
Features
1.240 × 320 pixel 65535 color TFT screen;
2. Peak value, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process;
3. The upper and lower limit deviation values are freely set and judged;
4. The screen can be flipped to display;
5. Can store 3 groups of Linear dispersion data;
6. Can store 70 sets of peak and tracking value data;
7. The four units N, kgf, lbf, and ozf are automatically exchanged;
8. With peak hold function, peak automatic release function and free setting of release time;
9. Test the strength of the material by the cross-sectional area of the input material.
10. Power-saving design for automatic shutdown without operation, with free shutdown time setting.
11. It can be connected to a dedicated machine, so that when the predetermined force value is reached, the machine stops running.
12. USB port hot-swappable connection PC, through supporting software to achieve a variety of modes of measurement, unlimited storage, transmission, traceability test Linear dispersion data, custom test report.
Principle
The SP-5 Force Gauge performs thrust or tension measurement through the built-in Sensor. The Measurement range is 10%~ 100% FS, and the Indication Error is less than +/- 0.5%. The instrument uses a graphic display to display the peak value, real-time value and test process Linear dispersion in real time, and supports upper and lower limit deviation setting and automatic alarm. The material strength can be calculated by entering the material cross-sectional area, and the data transmission and expansion function can be connected to the PC through the USB interface.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
1. Read the instructions carefully before use.
2. Connect the power supply or ensure that the battery is fully charged.
3. Set the upper and lower limit deviation values and alarm settings as needed;
4. Conduct thrust or pull tests and monitor the screen display.
5. Linear dispersion or data storage test;
6. Optional connection to a dedicated machine or PC for expansion operation.
Notice
• Operating temperature: 20 ℃ +/- 10 ℃;
• relative humidity: 35% RH~ 65% RH;
• No vibration source and no corrosion medium around;
• Make sure to read the instructions fully before use for correct operation.
• Avoid use beyond the specified environment conditions.
