Overview

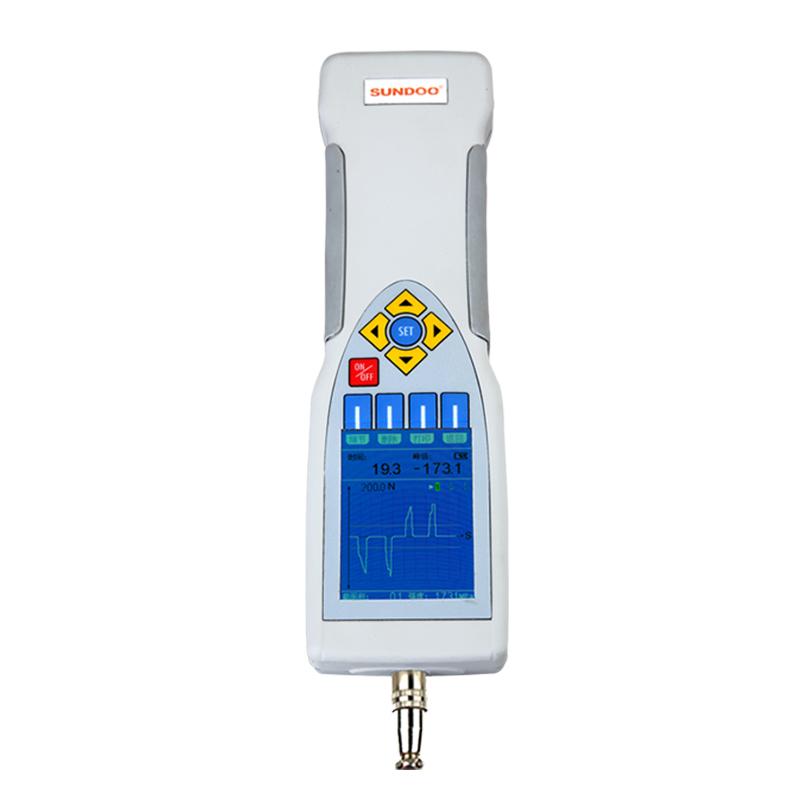

SP-10 Force Gauge is a small and simple thrusting and tensile testing instrument produced by SUNDOO, with the characteristics of High Accuracy and high resolution. It adopts 240 × 320TFT color screen display, supports the whole process of Linear dispersion monitoring and testing, and is suitable for push-pull load test, plug-in force test and failure test of various products.
Features
1. 240 × 320 pixel 65535 color TFT screen
2. Peak value, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process
3. Free setting of upper and lower deviation values
4. The screen can be flipped to display
5. Can store 3 sets of Linear dispersion data
6. Can store 70 sets of peak and tracking value data
7. Four units N, kgf, lbf, and ozf are automatically exchanged
8. With peak hold function, peak automatic release function and free release time setting
9. Test the material strength by entering the material cross-sectional area
10. Power-saving design for automatic shutdown without operation, free shutdown time setting
11. It can be connected to a dedicated machine to stop running when the predetermined force value is reached
12, USB port hot plug connection PC, through the supporting software to achieve a variety of modes of measurement, unlimited storage, transfer, traceability test Linear dispersion data and custom test reports
Principle
The SP-10 Force Gauge detects thrust or tension through the built-in Sensor, displays the measurement data in real time on the TFT color screen, and records the test process Linear dispersion. The instrument can set the upper and lower deviation values for judgment, and automatically alarms through the buzzer to achieve accurate load testing.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
1. Read the instructions carefully before use
2. Connect the power supply or ensure that the battery is fully charged
3. Set test parameters as required
4. Conduct a thrust or pull test
5. Real-time data and Linear dispersion displayed on the monitoring screen
6. Store test data
7. Data transfer via USB connection to PC
Notice
• Please read the instructions carefully before use
• Operating temperature: 20 ℃ +/- 10 ℃
• relative humidity: 35% RH~ 65% RH
• There should be no vibration source and no corrosion medium around
• The testing device needs to be purchased separately
